EAN: 6937224142817

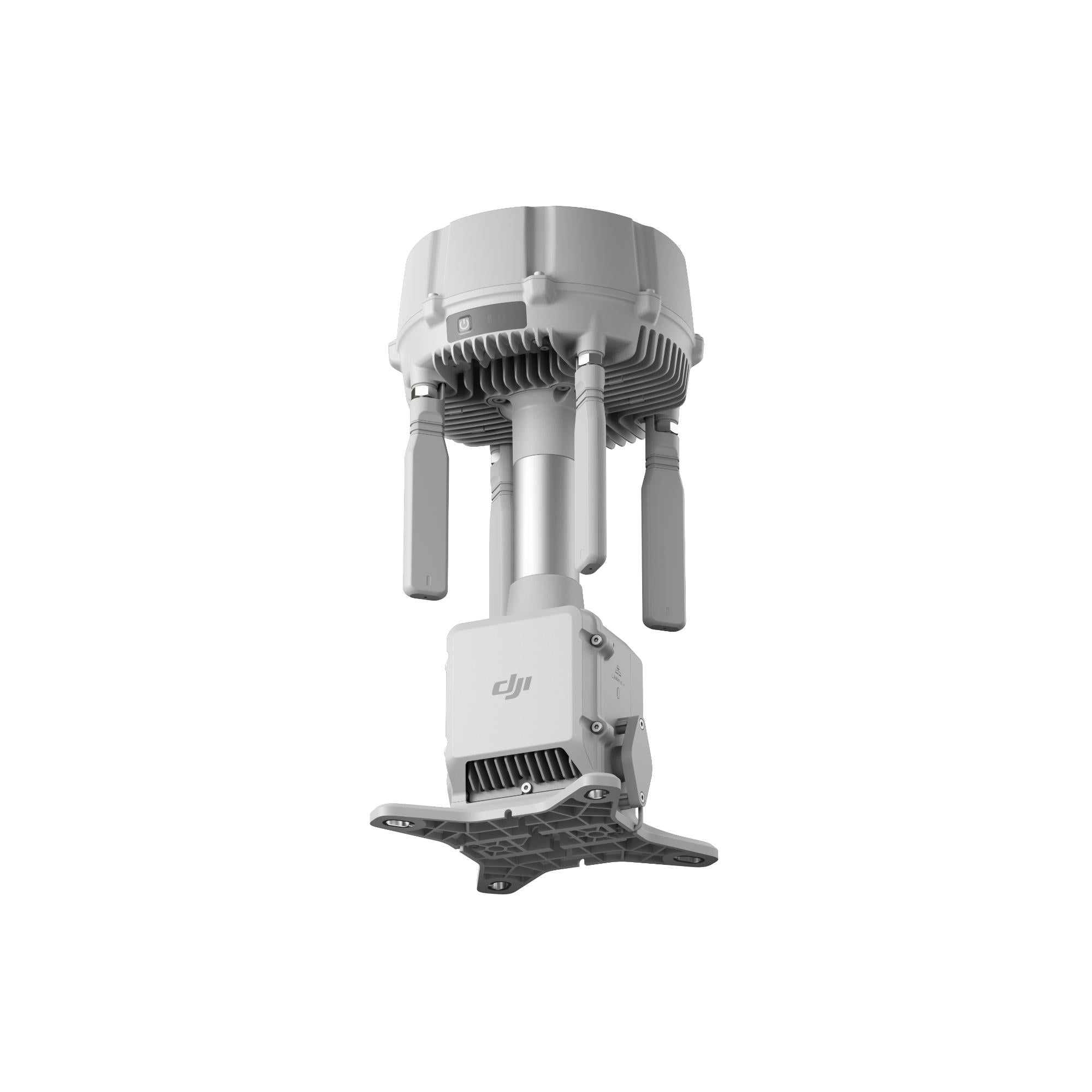

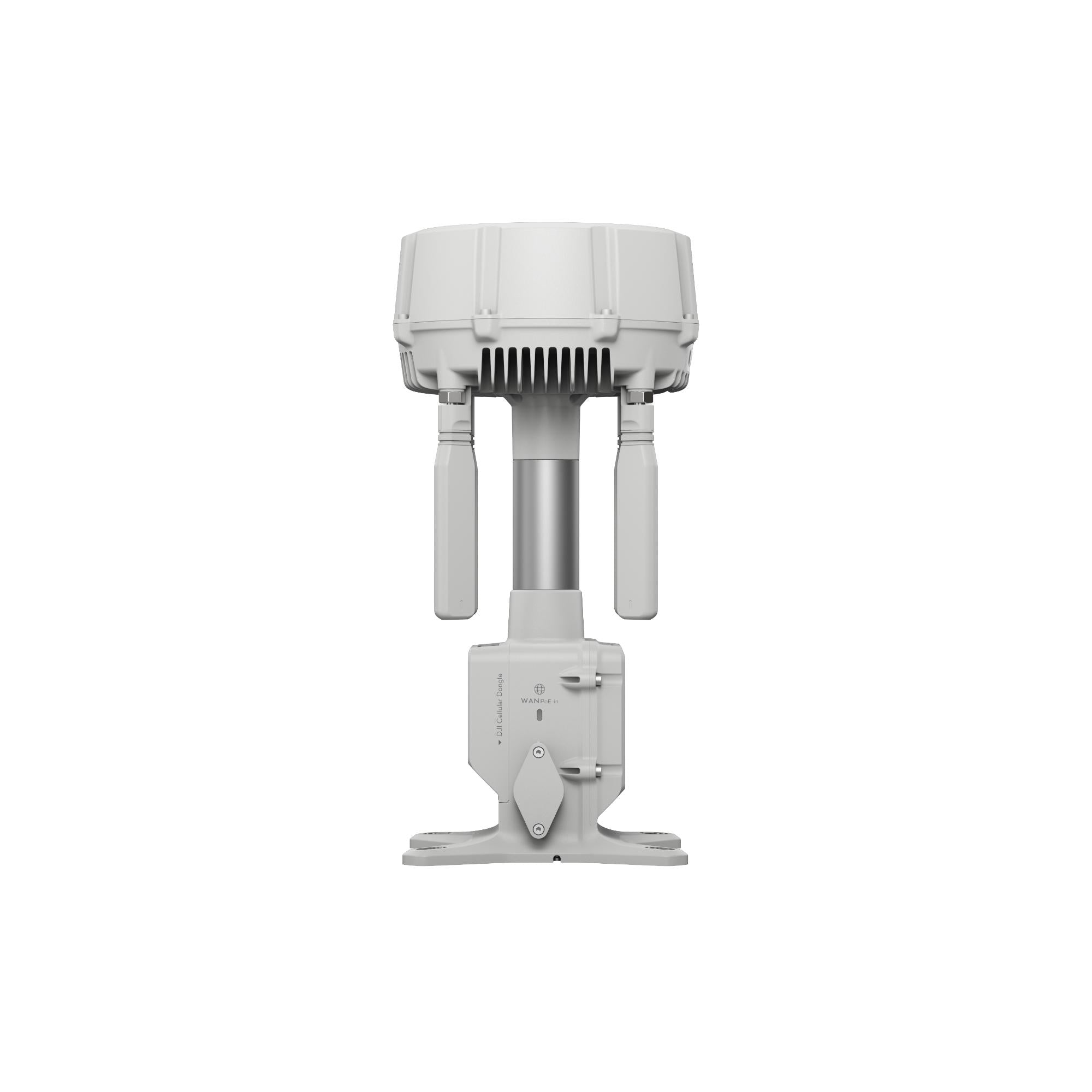

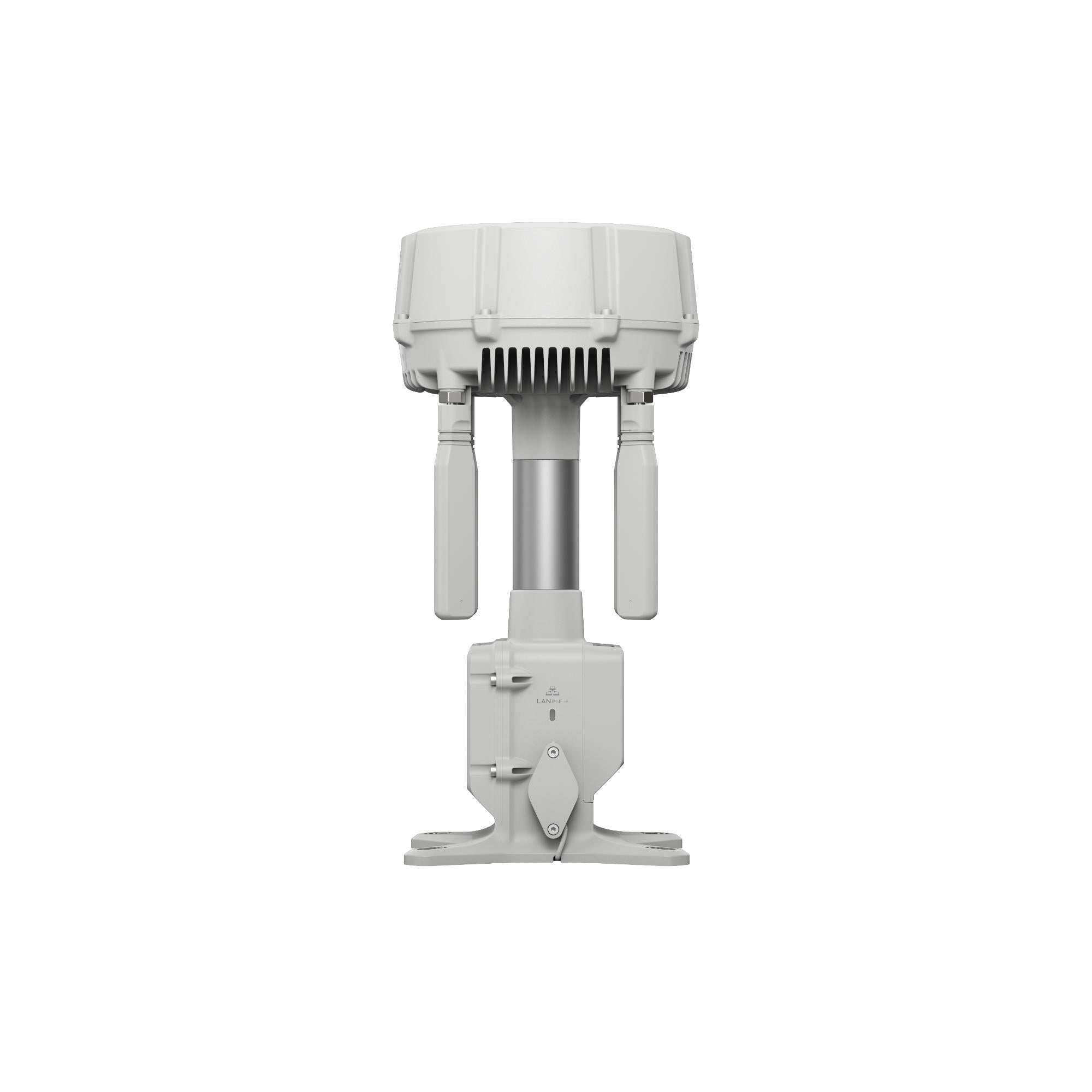

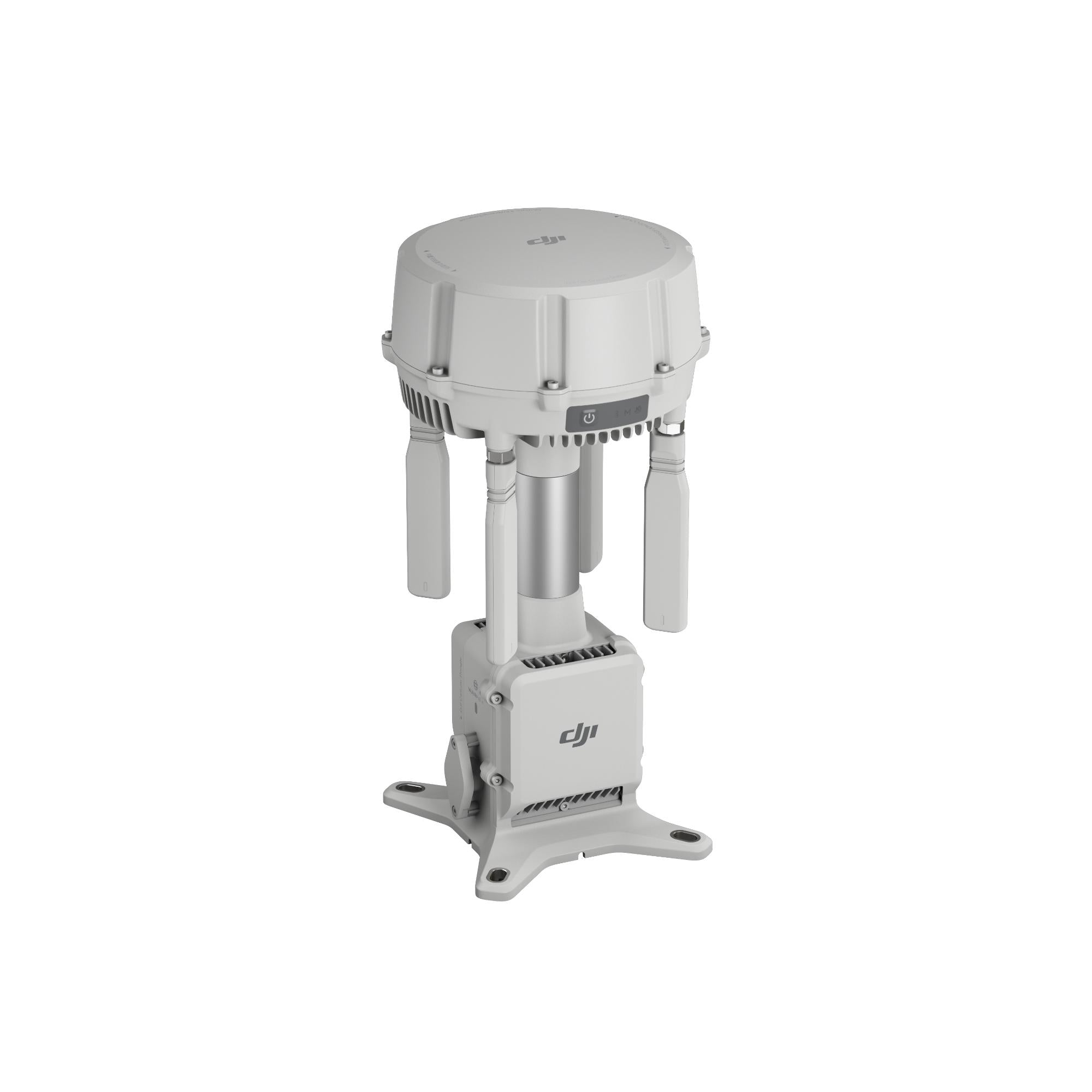

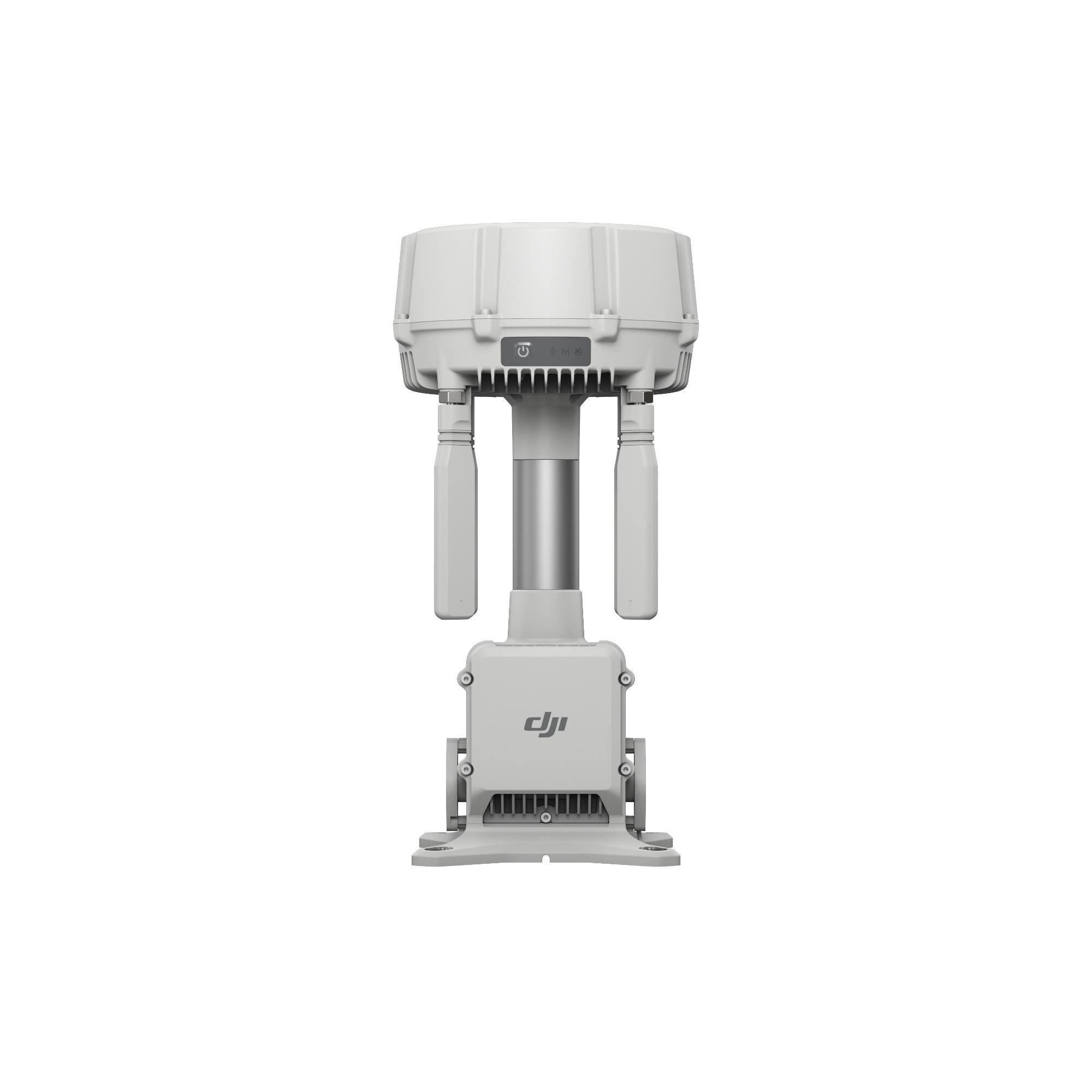

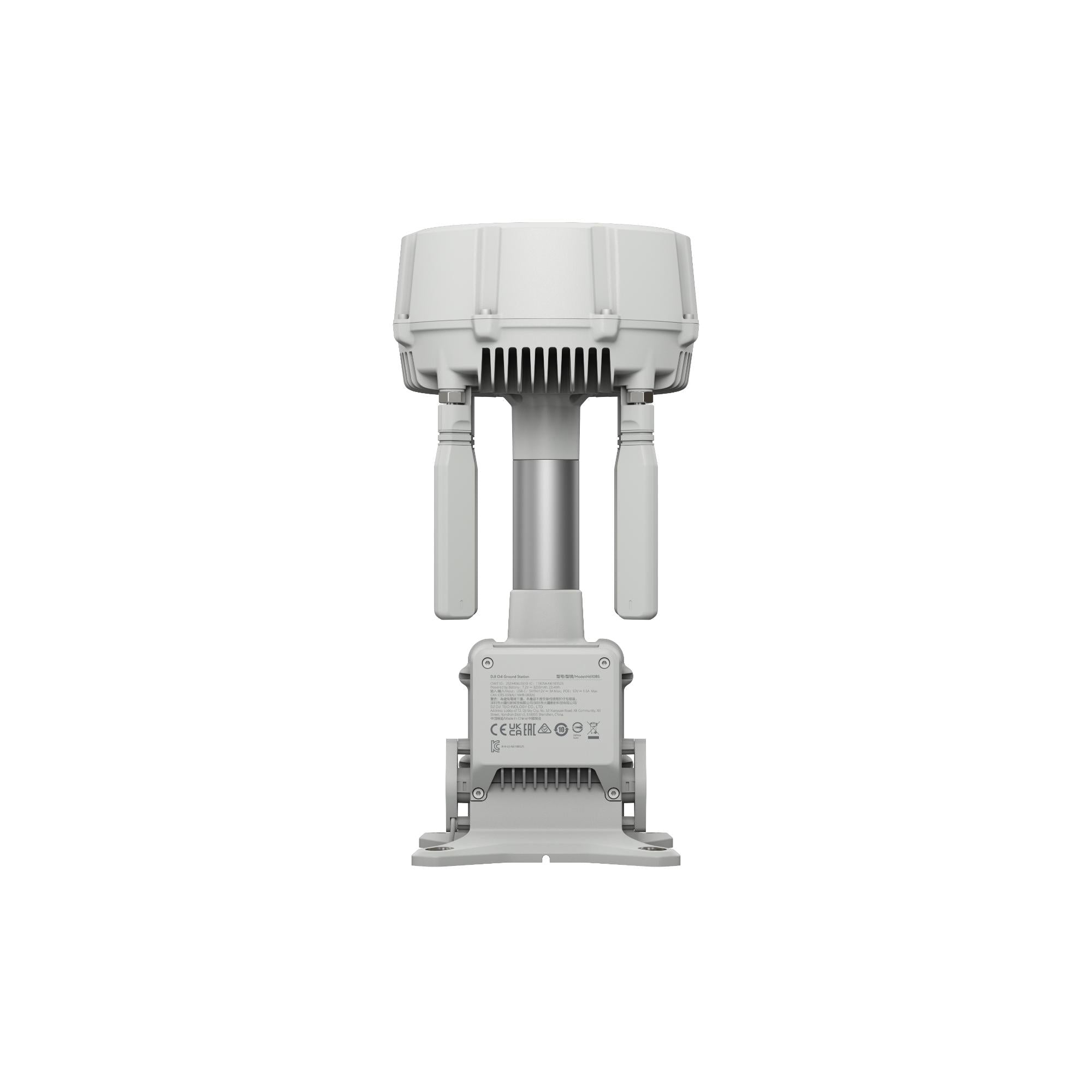

DJI O4 Ground Station

40 KM Max Range
Direct FlightHub 2 Link
Relay Mode Offline Reach
24/7 Unattended Ops
IP67 & IK07 Rated
PoE Powered

Need a Custom Solution for Your Business? Submit an Enterprise Enquiry

Looking to place a bulk order or explore tailored enterprise packages? Our team is here to help you find the right solution for your organisation.

£1,880.00

£1,880.00 ~~£1,880.00~~

1% credit reward. Earn 1880 points on this purchase. Learn more.

Earn 1% back on every purchase!

With DJI Rewards, you earn 1% back on every purchase, whether online or in-store.

What are DJI Rewards?

DJI Rewards let you accumulate points with every purchase you make. For every £1 spent, you receive 1 point. These points can be exchanged for money-off coupons, which can be used online or in-store to save on your next order.

For example, 500 points = £5 off coupon

Please note that DJI Rewards are non-transferable, cannot be exchanged for cash, and are only valid within DJI | Hasselblad.

Pre-Order: For dispatch 4 - 6 weeks

Built to overcome signal limits, DJI O4 Ground Station features a 12-antenna array and automatic multi-band selection. The new Gateway Mode connects directly to FlightHub 2 to bypass deployment barriers, while Relay Mode supports offline reach. Maintenance-free by design, it drives 24/7 unattended operations.

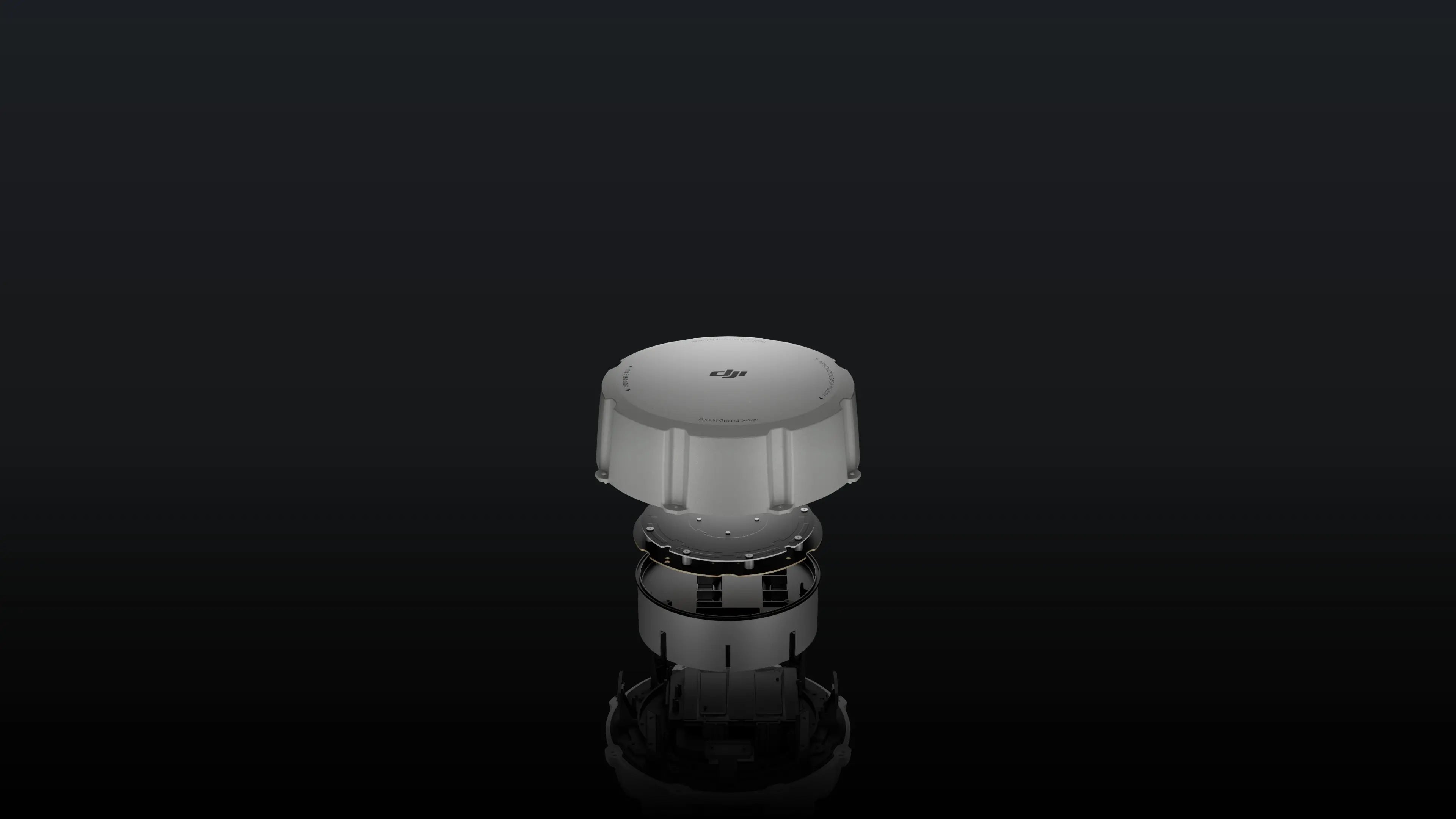

High-Performance RF Unit

The RF unit with high-output capabilities significantly boosts signal penetration and coverage, securing reliable links through dense urban obstructions. An optimized signal-to-noise ratio (SNR) further enhances receiver sensitivity, recovering usable signals even in complex electromagnetic environments

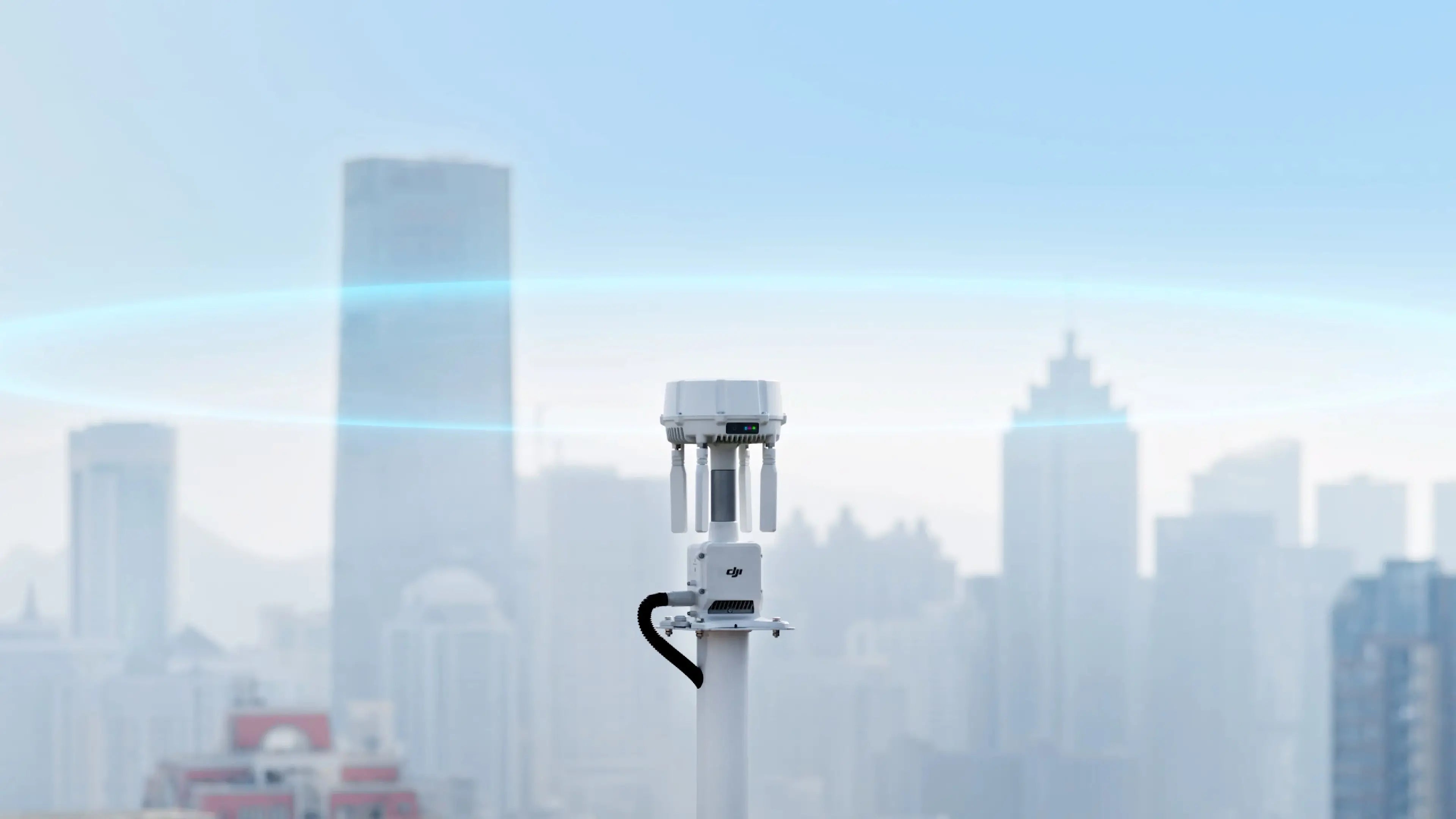

Omnidirectional High-Gain Antenna

Using 12 internal and external antennas with horizontal and vertical polarisation, O4 Ground Station delivers omnidirectional, high-gain coverage. It can continuously and stably capture signals regardless of the aircraft's position, helping maintain a seamless communication link for wide-area operations.

Automatic Multi-band Selection

To navigate congested urban RF environments, O4 Ground Station automatically shifts across sub2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and other bands to help bypass interference. This delivers a crisp, stutter-free video feed, and when paired with DJI Matrice 400, supports a transmission range of up to 40 km.

5-System, 19-Frequency GNSS

An integrated high-gain RTK module tracks 19 frequencies across five global satellite systems. Even in challenging, semi-obstructed environments like urban canyons or dense canopies, it rapidly acquires satellite signals. This provides continuous, centimeter-level positioning data, safeguarding flight operations.

Direct Network Connectivity

In Gateway Mode, O4 Ground Station connects directly to DJI FlightHub 2 via Ethernet or the DJI Cellular Dongle 2, delivering low-latency, high-bandwidth video feeds. This frees the station from DJI Dock 3's proximity constraints, allowing it to extend coverage up to 30 km.

5-System, 19-Frequency GNSS

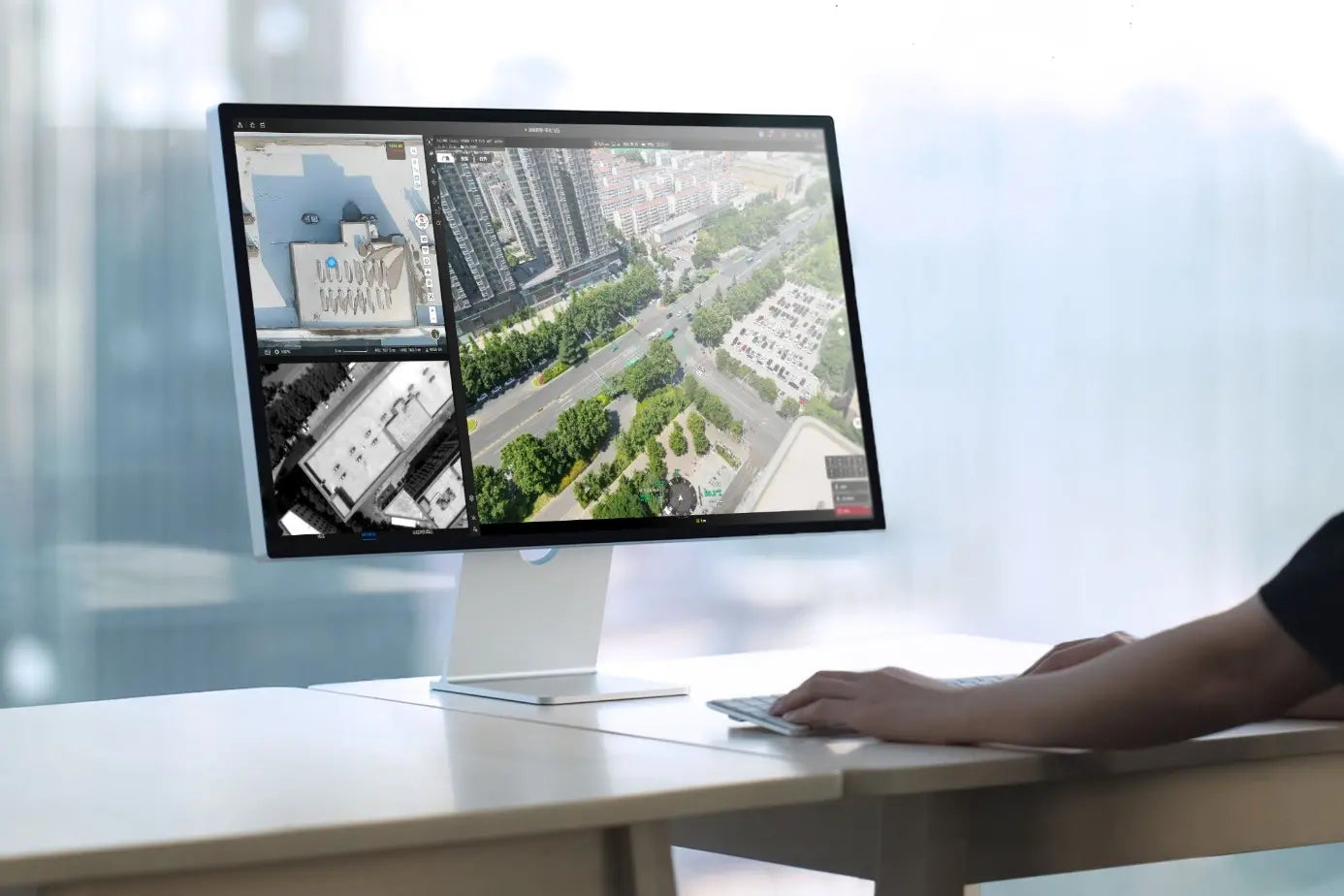

Virtual Cockpit for Agile Control

In Gateway Mode, operators can use the FlightHub 2 Virtual Cockpit to remotely control the aircraft. Within the ground station's coverage area, pilots can manually override preset routes, enabling a flexible and fast response to multi-point task requirements.

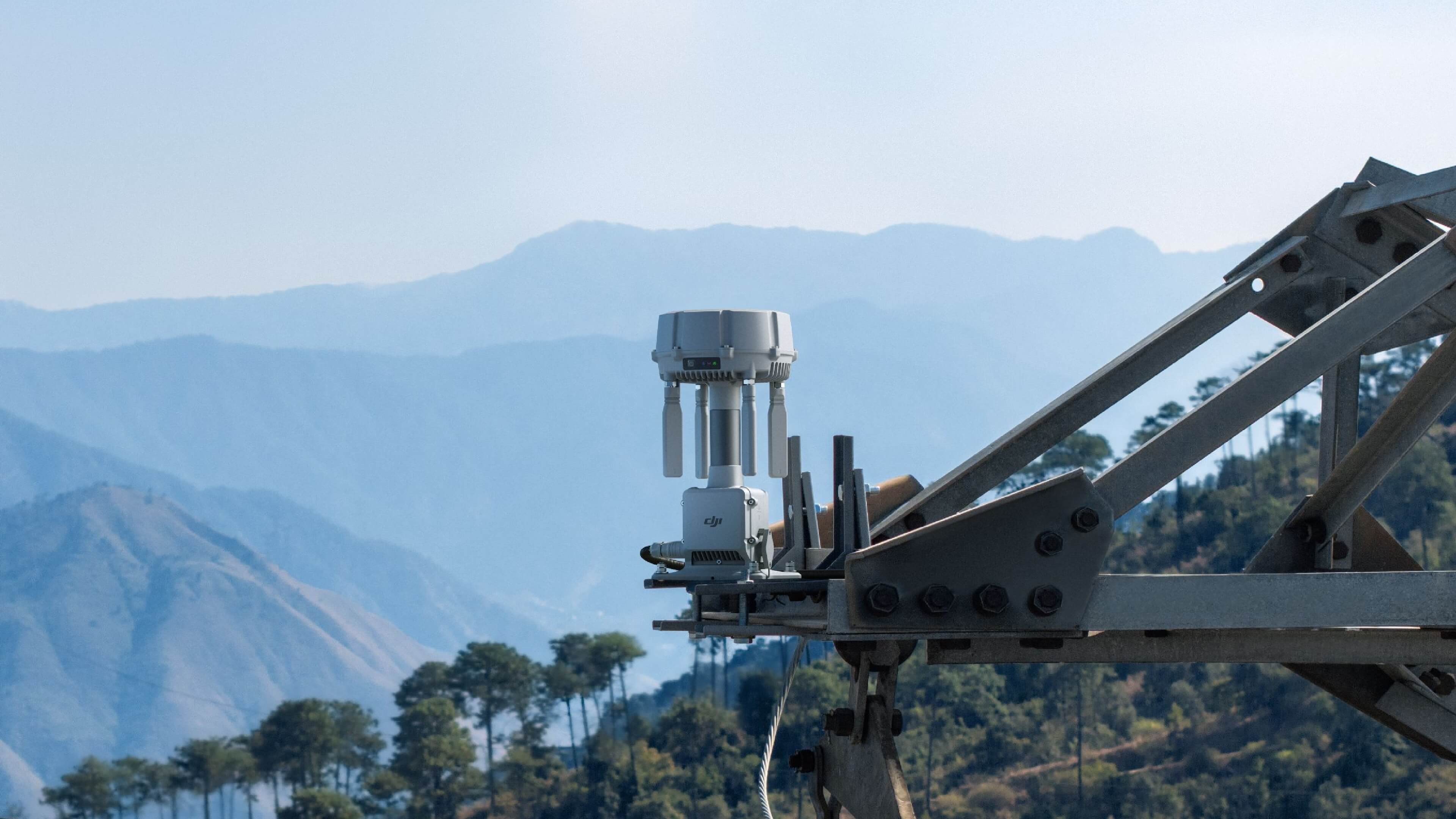

High-Point Setup to Clear Obstructions

O4 Ground Station inherits the functions of the D-RTK 3 Relay Fixed Deployment Version. In offline areas such as valleys or urban environments with severe signal obstruction, operators can switch to Relay Mode and position the station at a high point to extend aircraft video transmission range.

Multi-Device Rotation for Higher Utilisation

Remote controllers or DJI Docks within signal range can remotely scan and connect to O4 Ground Station. This enables fast turnarounds, as a single station can service different aircraft sequentially and improve overall hardware utilisation.

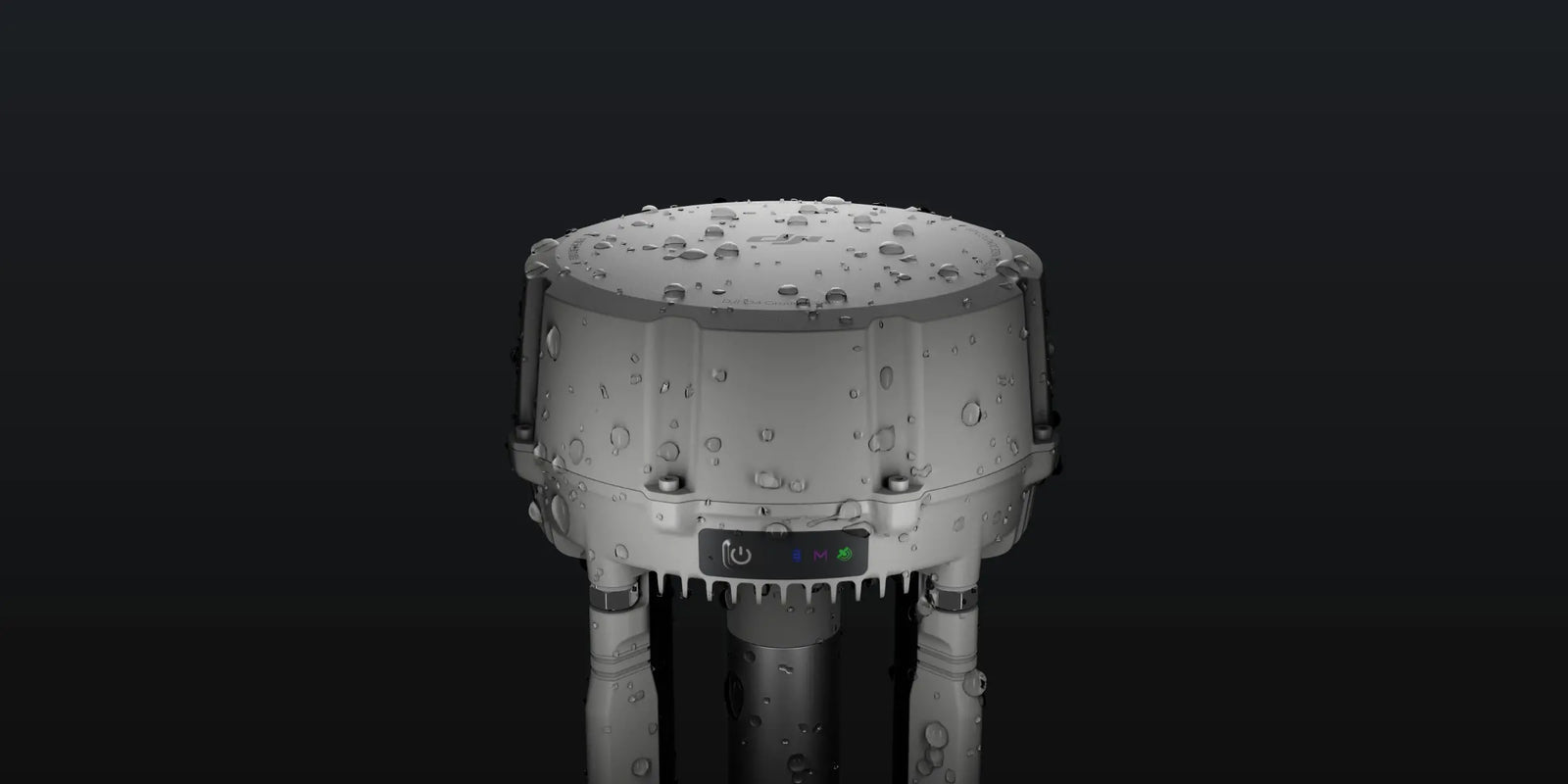

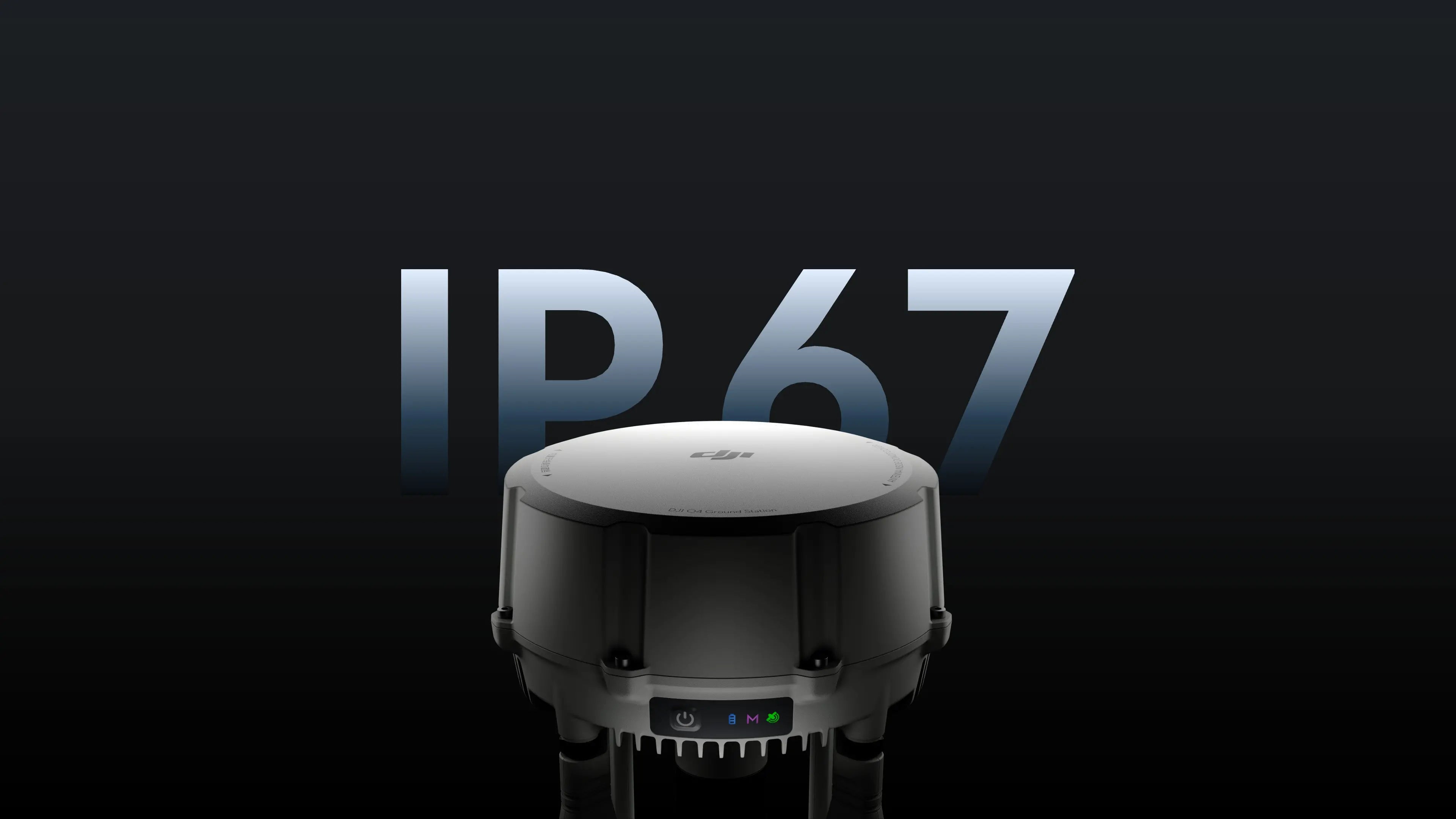

All-Weather Reliability

An IP67 rating protects against water and dust, while O4 Ground Station operates reliably in temperatures from -40° to 55° C (-40° to 131° F). This robust build supports continuous, unattended operations across harsh outdoor climates.

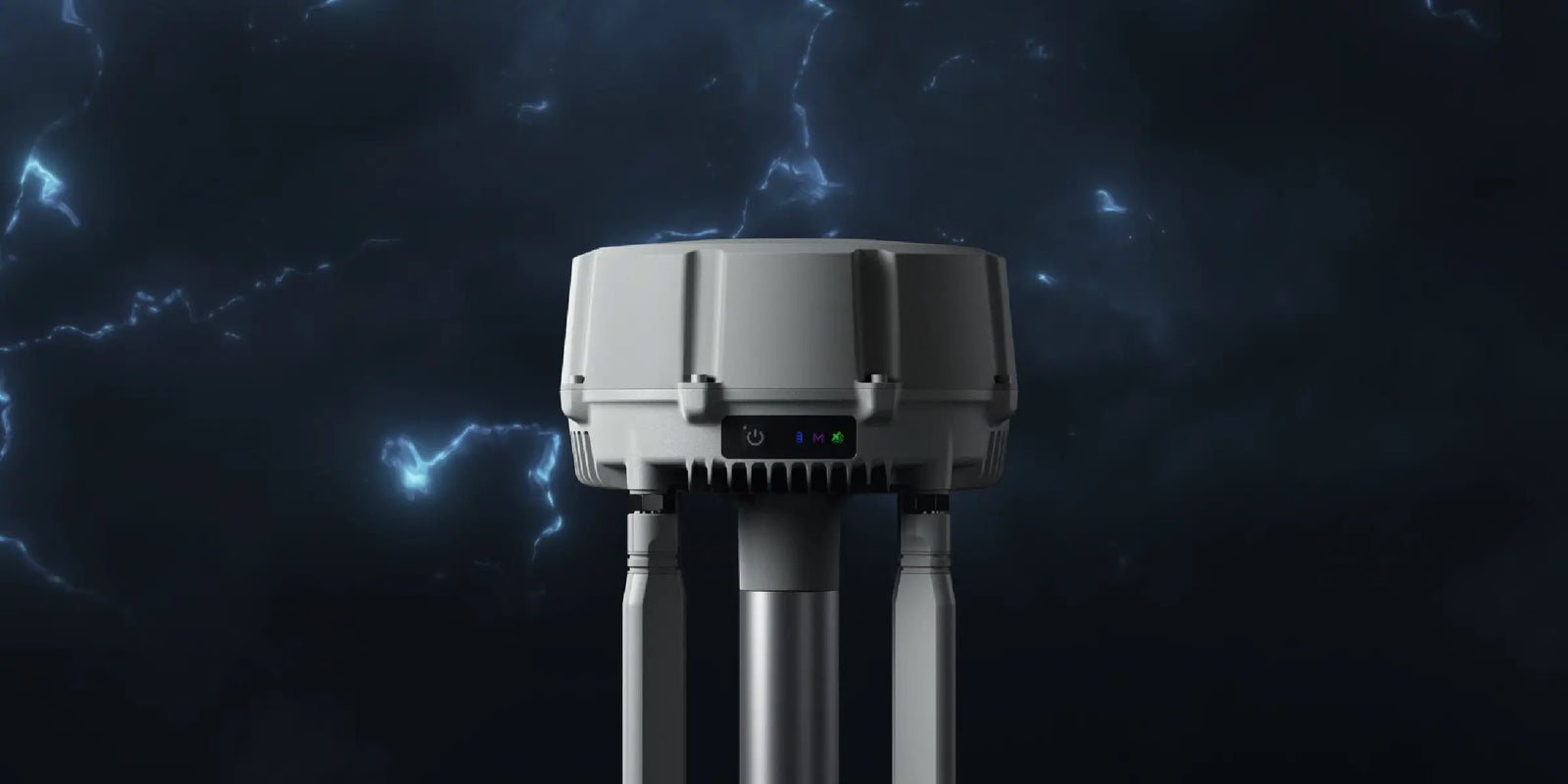

Lightning Protection

Proprietary lightning protection components and a grounding design meet the EN/IEC 61643-21 Category C standard. This helps mitigate the risk of lightning damage when deploying the station at elevated outdoor locations such as mountains or transmission towers.

Maintenance-Free Design

Fan-less passive cooling and a self-recovery mechanism allow the station to automatically resume operation after power outages or software anomalies. This maintenance-free design reduces the need for manual on-site reboots and helps cut troubleshooting trips and operational costs.

Maintenance-Free Design

Open Ecosystem, Flexible Integration

Unified Visual Management

O4 Ground Station integrates up to four standard IP cameras. Using ONVIF and GB/T 28181 protocols, it streams live video directly to DJI FlightHub 2 and synchronizes native camera alerts, such as displacement detection. FlightHub 2 also enables remote PTZ control (Pan/Tilt/Zoom) of connected cameras, giving operators a centralized, comprehensive view of the operational area.

Open ESDK

The new MQTT-based ESDK 2.0 and Cloud API streamline integration, empowering developers to build custom, industry-specific solutions. Via the MQTT protocol, the station can connect to third-party Remote ID or ADS-B receivers. This delivers real-time awareness of nearby unmanned and manned aircraft, proactively safeguarding the airspace around DJI Dock 3.

Supported Models

Gateway Mode

DJI Dock 3
Relay Mode

DJI Dock 3
DJI Matrice 400
DJI Matrice 4E
DJI Matrice 4T
DJI Matrice 4D (DJI RC Plus 2 Enterprise)
DJI Matrice 4TD (DJI RC Plus 2 Enterprise)

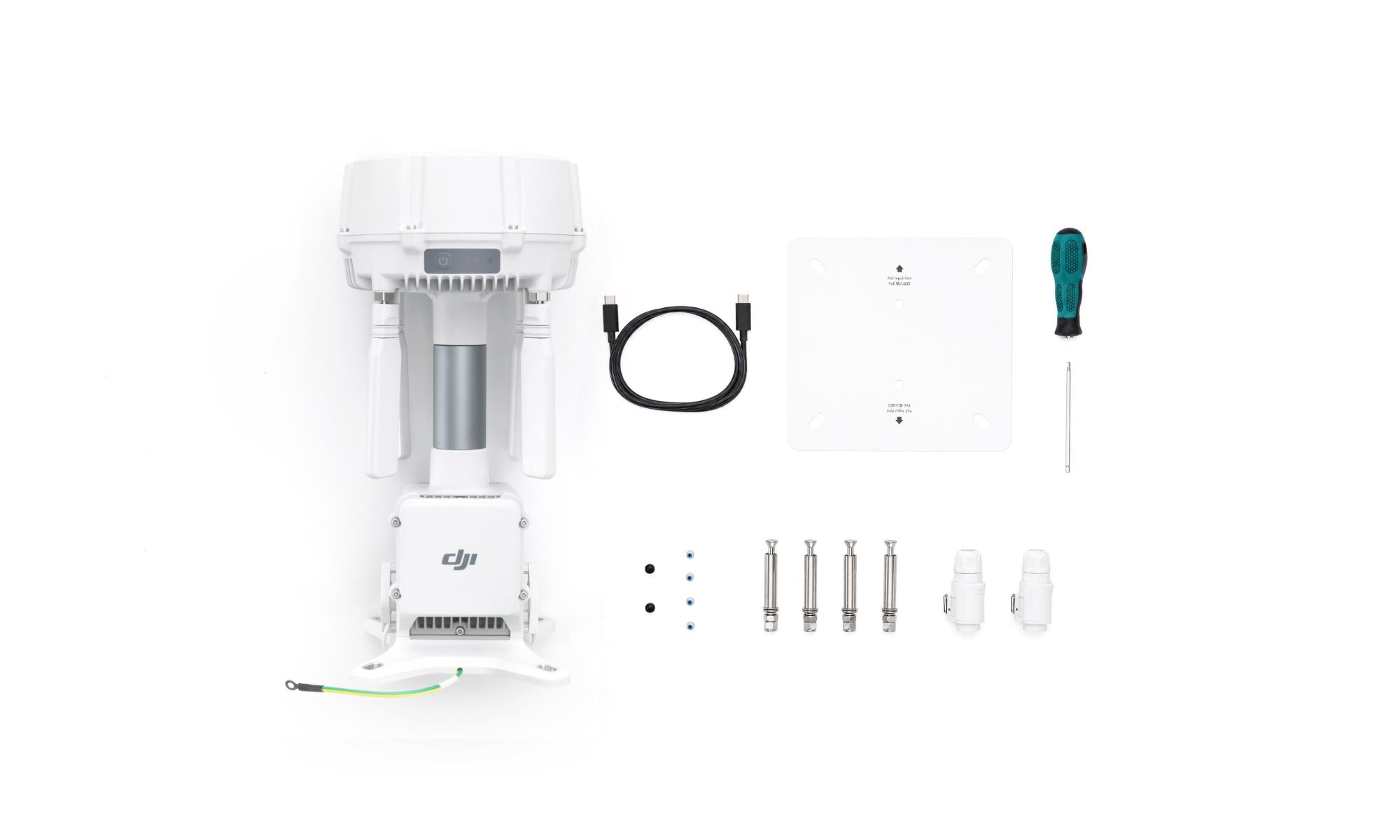

What's Included

DJI O4 Ground Station

x 1
USB-C to USB-C Cable

x 1
Ethernet Connector

x 2
Expansion Bolts

x 4
Installation Card

x 1
Screws & Tool set

x 1

Specifications

Specifications for product DJI O4 Ground Station
GNSS Receiver
GNSS Frequency	GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b GALILEO: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band
System Accuracy	Single Point Accuracy (Uncalibrated): Horizontal: 1.5 m (RMS) Vertical: 3.0 m (RMS) Satellite-Based Differential Accuracy: Convergence Time: 20 min Horizontal: 30 cm (RMS) Vertical: 40 cm (RMS) Network RTK Calibration: Horizontal: 1.0 cm (RMS) + 1 ppm Vertical: 3.0 cm (RMS) + 1 ppm
Video Transmission
Video Transmission System	DJI O4 Enterprise Enhanced Video Transmission System
Operating Frequency and Transmitter Power (EIRP)	902 MHz to 928 MHz: < 30 dBm (IC), < 16 dBm (MIC) 1.430 GHz to 1.444 GHz: < 35 dBm (SRRC) 2.400 GHz to 2.4835 GHz: < 33 dBm (IC), < 20 dBm (CE/SRRC/MIC) 5.150 GHz to 5.250 GHz: < 23 dBm (IC/CE) 5.725 GHz to 5.850 GHz: < 33 dBm (IC), < 14 dBm (CE), < 30 dBm (SRRC) Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Max Transmission Distance (unobstructed, free of interference)	IC 1. Between Matrice 400 and O4 Ground Station: 40 km 2. Between other aircraft* and O4 Ground Station: 30 km 3. Between the remote controller/DJI Dock 3 and O4 Ground Station (Relay Mode)**: Recommended within 1 km; maximum 3 km (unobstructed, free of interference) SRRC 1. Between Matrice 400 and O4 Ground Station: 25 km 2. Between other aircraft* and O4 Ground Station: 18 km 3. Between the remote controller/DJI Dock 3 and O4 Ground Station (Relay Mode): Recommended within 1 km; maximum 3 km (unobstructed, free of interference) CE 1. Between Matrice 400 and O4 Ground Station: 25 km 2. Between other aircraft* and O4 Ground Station: 18 km 3. Between the remote controller/DJI Dock 3 and O4 Ground Station (Relay Mode)*: Recommended within 300 m; maximum 1 km (unobstructed, free of interference) Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight. DJI Matrice 400 is only supported in Relay Mode on DJI O4 Ground Station. * "Other aircraft" refers to Matrice 4D/4TD (with Dock 3) under Gateway Mode; and refers to Matrice 4E, Matrice 4T, Matrice 4D/4TD (with Dock 3), and Matrice 4D/4TD (with Dock 3, DJI RC Plus 2 Enterprise) under Relay Mode. **** DJI O4 Ground Station should be placed in an elevated, unobstructed location to ensure clear communication between the remote controller/Dock 3 and the aircraft.
Max Transmission Distance (unobstructed, with interference)	Strong Interference (Dense Buildings, Residential Areas, etc.): approx. 1.8 to 6 km Medium Interference (Suburban Areas, City Parks, etc.): approx. 6 to 18 km Weak Interference (Open Spaces, Remote Areas, etc.): approx. 18 to 40 km Data is tested with Matrice 400 under IC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Transmission Distance (obstructed, with interference)	Low Interference and Obstructed by Buildings: approx. 0 to 0.5 km Low Interference and Obstructed by Trees: approx. 0.5 to 3 km Data is tested with Matrice 400 under IC standards in obstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Antenna	OcuSync 4 Pro external directional antenna × 4 OcuSync 4 Pro internal directional antenna × 8 2.4G/5.2G/5.8G: 2T4R Sub2G: 2T2R The antenna uses a standard reverse polarity SMA connector.
Network Access	Ethernet Access: Adaptive Ethernet port; requires ≥ 100Mbps bandwidth and ≤ 100ms latency* 4G Access: Requires the DJI Cellular Dongle 2** * If these requirements are not met, the device may go offline or experience video stuttering. ** Sold separately.
Electrical Properties
Power Interface	Ethernet Port (PoE) WAN: PoE-in LAN: PoE-in
Ethernet Cable Requirements	Cat 6 or above outdoor-rated, waterproof twisted-pair cable; max length 100 m; outer diameter 5.5 to 6.5 mm
Power Consumption	Gateway Mode: 1. Max Power Consumption (Including Heating): 65 W 2. Typical Power Consumption (Without Heating): 17.1 W 3. Low-Power Mode: 7 W** Relay Mode: 1. Max Power Consumption (Including Heating) : 65 W 2. Typical Power Consumption (Without Heating): - With DJI Dock 3/DJI Matrice 4 Series: 31.7 W - With DJI Matrice 400: 37.9 W 3. Power Consumption (No Aircraft Connected): - With DJI Dock 3/DJI Matrice 4 Series: 29.7 W - With DJI Matrice 400: 30.6 W * Measured in a controlled test environment and should be used for reference only. Actual power draw may be higher when accounting for losses in the power supply. ** Low-power mode is not recommended for use at temperatures of -40° to -20° C (-40° to -4° F).
Supported Power Supply	1. DJI Dock 3 PoE Output Port 2. Third-party PoE Power Supplies: IEEE 802.3bt Type 4 (PoE++): 52 V to 57 V output, max 99.9 W per port; operating range -40° to 55° C (-40° to 131° F) IEEE 802.3bt Type 3 (PoE++): 50 V to 57 V output, max 60 W per port; operating range -30° to 55° C (-22° to 131° F) IEEE 802.3at Type 2 (PoE+): 50 V to 57 V output, max 30 W per port; operating range -20° to 55° C (-4° to 131° F) Non-standard PoE or Type 1 power supplies are not supported; the device will show a solid red indicator light if an unsupported supply is connected. Type 2 supports Gateway Mode only.
Backup Battery	LiPo Capacity: 3250 mAh Energy: 23.4 Wh
Backup Battery Operating Time (at room temperature)	Battery preservation mode is enabled by default when powered via PoE. In the event of a sudden power loss, estimated runtime is: Gateway Mode: approx. 45 min Relay Mode: approx. 30 min Battery preservation mode: when powered via PoE, the system keeps battery voltage between 7.0 V and 7.4 V. If the battery voltage at insertion exceeds 7.5 V, the system will discharge it to the safe threshold before entering preservation mode; the battery will not charge to full capacity. Battery discharge performance may decrease in low temperatures, reducing actual operating time.
Backup Battery Charging	Supports 9V or 12V PD charging. DJI 65W Portable Charger is recommended before deployment. When fully charged, estimated runtime in Gateway Mode is approx. 2 hours. Charge time (65W PD): approx. 2.5 hours Charging with a 5V charger is only supported when the device is powered off. Charging is only supported when the battery cell temperature is between 0° and 55° C (32° and 131° F).
Physical Characteristics
Ethernet Port Surge Protection	WAN/LAN Ports: Ethernet interface supports up to 10kA (total discharge current) surge protection, meeting EN/IEC 61643-21 Category C. RJ45 surge protection capacity is 1.5kA (8/20μs waveform), meeting the Category C protection level of EN/IEC 61643-21. Surge protection capability depends on the capacity and reliability of grounding. To minimize the risk of surges, please make sure that grounding is done properly during installation.
Operating Temperature	IEEE 802.3bt Type 4 (PoE++): -40° to 55° C (-40° to 131° F) IEEE 802.3bt Type 3 (PoE++): -30° to 55° C (-22° to 131° F) IEEE 802.3at Type 2 (PoE+): -20° to 55° C (-4° to 131° F) The 55° C (131° F) upper limit accounts for solar radiation. At -40° C (-40° F), the device requires a windless environment; auto-restart after shutdown is not supported in windy conditions. Cold-weather heating startup requires IEEE 802.3bt Type 3 (PoE++) or above. After storage or operation in extreme temperatures, allow the internal backup battery to return to between 0° and 45° C (32° and 113° F) before charging.
PoE Auto Wake-Up	When connected to a Type 2 or higher PoE power supply, the device supports automatic wake-up on cable insertion or power restoration.
Cold-Weather Heating Startup	In environments from -40° to -20° C (-40° to -4° F), the device can start up via cold-weather heating mode when powered by a PoE supply of 60 W or above. Requires PoE supply of IEEE 802.3bt Type 3 (PoE++) or above.
Altitude	6000 m
Ingress Protection Rating	IP67 Please follow the requirements stated in the IP67 protection rating instructions. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear. When connecting an Ethernet cable, use the included cable connector (corrugated tubing and corrugated tubing plug). The cable must be Cat 6 or above outdoor-rated, waterproof twisted-pair cable with an outer diameter of 5.5 to 6.5 mm. Ensure all rubber port covers and the DJI Cellular Dongle 2 heat sink are properly installed. Unused WAN/LAN port screws must be fully tightened.
Impact Protection Rating	IK07
Dimensions	170×170×352 mm (L×W×H)
Weight	2.68 kg
Mounting	Expansion Bolt Mounting: φ6×70 mm M6 Screw Mounting: 60 mm hole center spacing
Supported Software
Applications	DJI Enterprise app (used with Android phones for deployment and commissioning)
Cloud Platform	FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync DJI Cloud API
External Device Support	Supports cameras using ONVIF and GB/T 28181 protocols Supports up to 4 simultaneous 1080p H.264 video streams
Open Ecosystem	ESDK 2.0

FAQs

What is the LAN port on DJI O4 Ground Station used for?

1. Connecting third-party devices developed based on the ESDK 2.0.
2. Receiving power input from a PoE+ (or higher) power supply.

What is the WAN port on DJI O4 Ground Station used for?

1. Connecting a network switch for internet access.
2. Receiving power input from a PoE+ (or higher) power supply.

Can DJI O4 Ground Station continue to be used after a PoE power outage?

Yes.

1. DJI O4 Ground Station has a built-in backup battery. In the event of a power outage, the station can continue operating for approximately 45 minutes in Gateway Mode and 30 minutes in Relay Mode.

2. Once PoE power is restored, the device will wake up and restart automatically*.

* When connected to a Type 2 or higher PoE power supply, the device supports automatic wake-up on cable insertion or power restoration.

Does DJI O4 Ground Station support the Base Station and Rover Station modes of D-RTK 3?

No.

How does DJI O4 Ground Station differ from the D-RTK 3 Relay Fixed Deployment Version?

1. Operating Modes:The D-RTK 3 Relay Fixed Deployment Version only supports relay station mode and is mainly used for fixed deployment of DJI Dock 3. DJI O4 Ground Station supports both Gateway Mode and Relay Mode and is compatible with DJI Dock 3 and multiple aircraft models*.

2. Video Transmission Frequencies:D-RTK 3 Relay Fixed Deployment Version supports 2.4 GHz, 5.2 GHz, and 5.8 GHz. DJI O4 Ground Station adds sub2G band support**.

3. Additional Features:DJI O4 Ground Station supports a smart low-power mode. When no aircraft is connected, standby power consumption is as low as 7 W***. It also supports connectivity with standard IP cameras (ONVIF and GB/T 28181 protocols) and third-party devices developed based on the ESDK 2.0.

* Gateway Mode is compatible with DJI Dock 3. Relay Mode is compatible with DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, and Matrice 4D/4TD (DJI RC Plus 2 Enterprise). Relay Mode is unavailable in certain countries or regions; check local laws and regulations for more information.
** Sub2G band support and multi-band auto-switching are only available when using DJI O4 Ground Station with Matrice 400. These features are not available in certain countries or regions. Check local laws and regulations for more information.
*** 7 W refers to the power consumption of DJI O4 Ground Station only. When powered via PoE++, the actual total power draw, including that of the power supply itself, will be higher.
