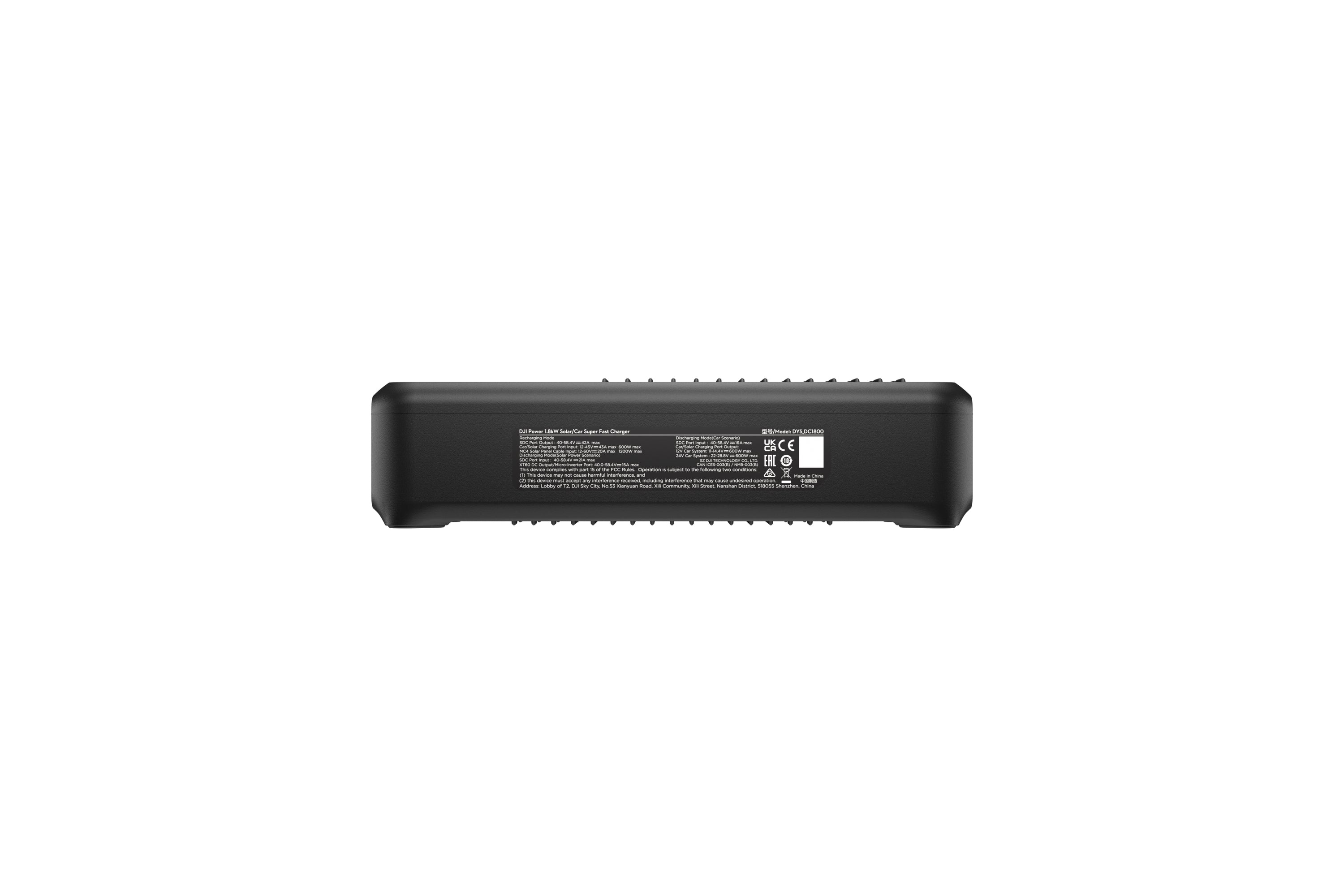

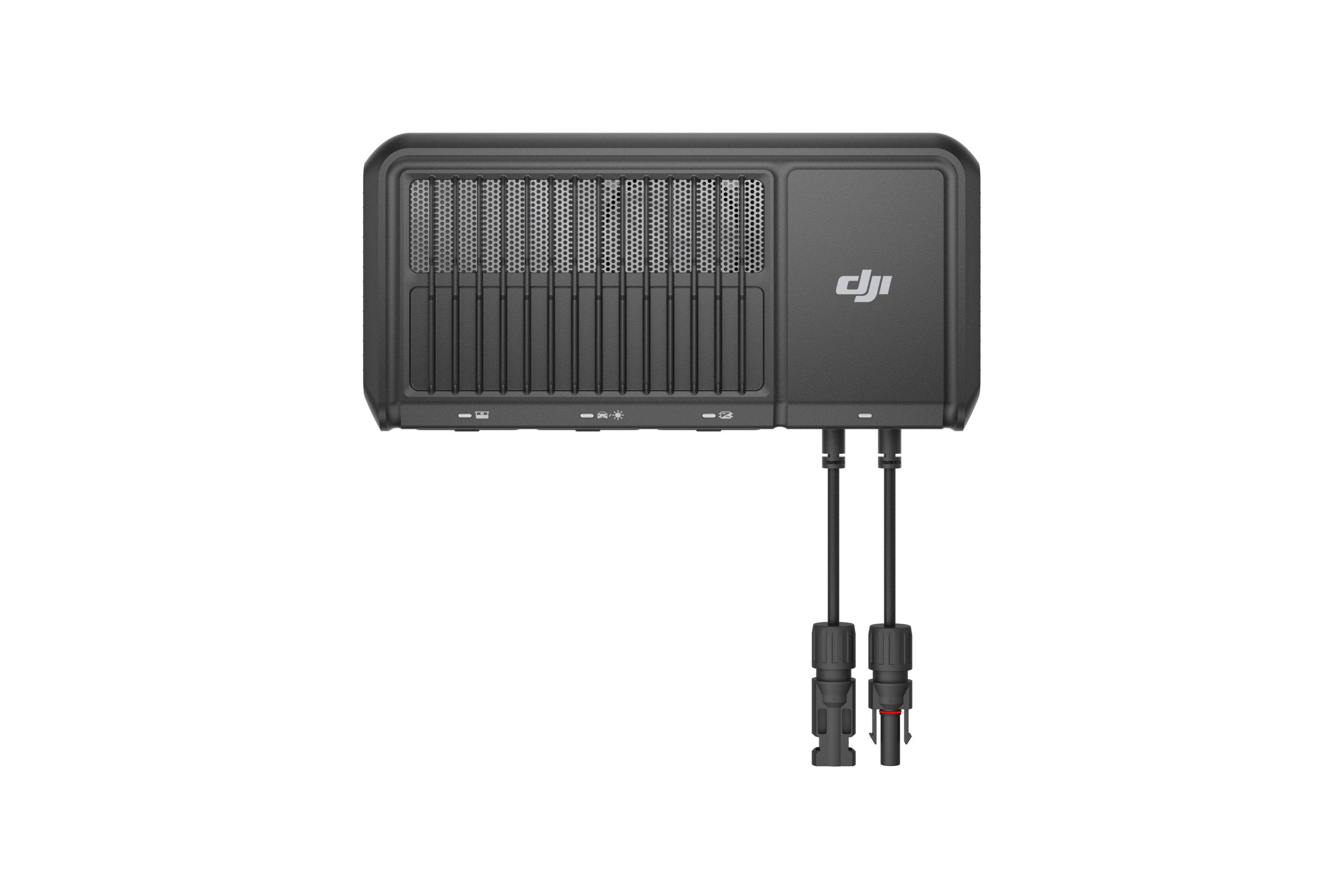

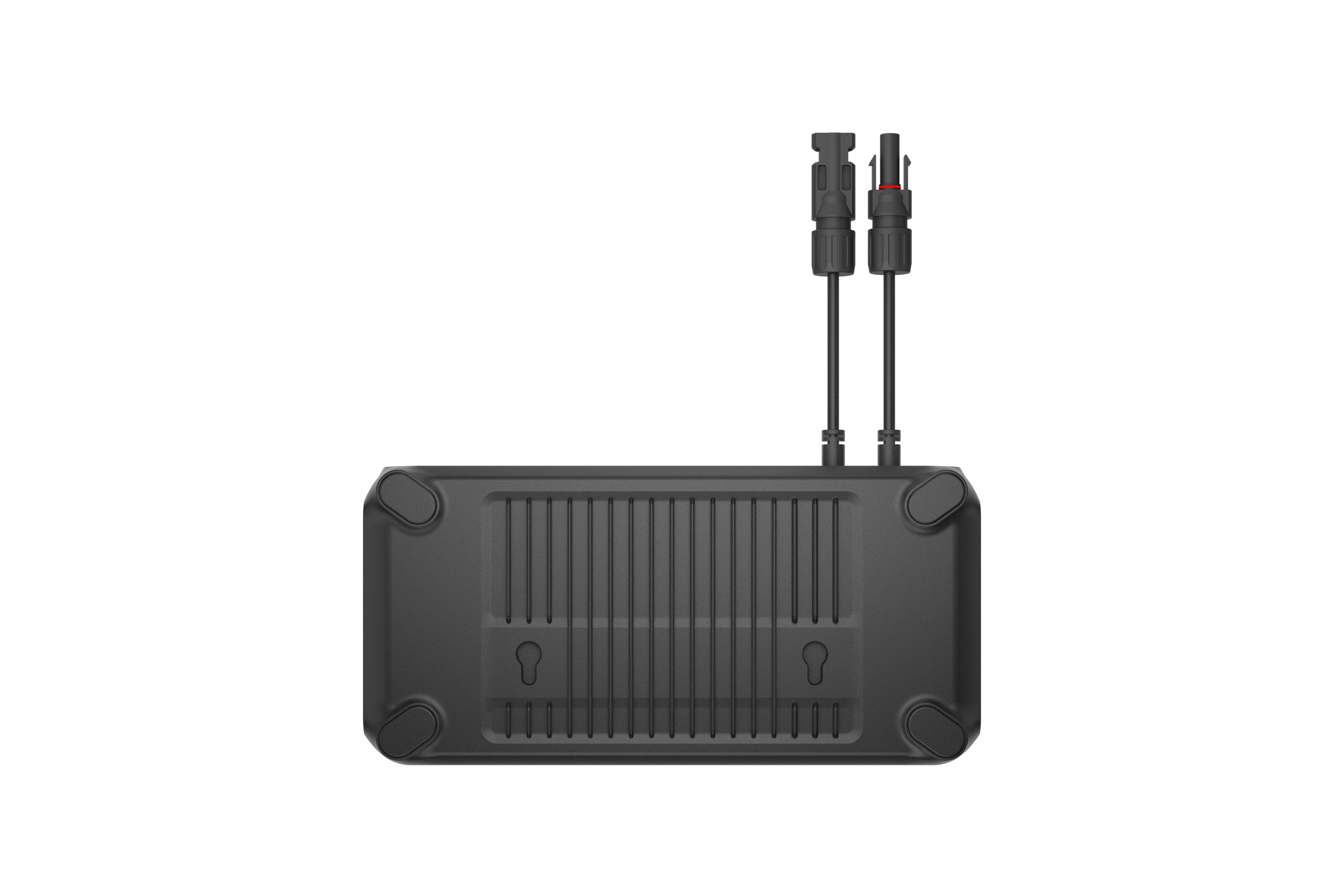

DJI Power 1.8kW Solar/Car Super Fast Charger

Convenient RV Energy Storage, Charge While Driving

The DJI Power 1.8kW Solar/Car Super Fast Charger supports simultaneous connection to solar panels and the RV's alternator, together providing up to 1200 W of solar power and 600 W of continuous car power to quickly recharge DJI Power 1000/2000/1000 V2 and expansion battery, reaching 1024 Wh of power during a drive of approximately 40 minutes, and 2048 Wh in 75 minutes, expanding the capacity of your car's electrical system.

It can also connect to the RV battery and reverse-charge it with DJI Power 1000/2000/1000 V2 to prevent battery drain, achieving intelligent two-way charging and capacity expansion of the car battery. Additionally, DJI Power 1000/1000 V2 can be paired with the 2048Wh expansion battery to provide 3072 Wh of battery backup and an ultra-high power output of 2400 to 2600 W. DJI Power 2000 can connect up to ten 2048Wh expansion batteries, boosting the capacity to an incredible 22,528 Wh.

Solar Power for Eco-Friendly Home Backup Battery

The 1.8 kW Super Fast Charger can connect to solar panels via the XT90 port, to provide a max 1800W solar power to quickly recharge DJI Power 1000/2000/1000 V2, enabling a more eco-friendly and economical home energy storage and usage solution. DJI Power 1000/1000 V2 can be paired with up to five 2048Wh DJI Power Expansion Battery 2000 units, providing up to 11,264 Wh of backup power. DJI Power 2000 can connect up to ten 2048Wh expansion batteries, boosting the capacity to an incredible 22,528 Wh. Using the Super Fast Charger and solar panels to fully recharge them ensures you have power even during unexpected outages.

Tips:

* Hybrid and fully electric vehicles are currently not compatible with the DJI Power 1.8kW Solar/Car Super Fast Charger, due to differences in generator operation compared to traditional fuel-powered vehicles.

1. The 1.8kW Solar/Car Super Fast Charger is suitable for 12V or 24V car systems. The input voltage of the car charging terminals must not exceed 45 V.
2. After installation in the car, organize and secure the wiring, and ensure all terminal screws are fixed, before driving the vehicle.
3. The 1.8kW Solar/Car Super Fast Charger is not water- or dust-resistant. Take precautions against water and dust during installation.
4. The maximum input voltage for the MC4 Solar Panel Cable is 60 V, and the maximum power is 1200 W.
5. When connecting the Car/Solar Charging Port to solar panels, the maximum input voltage is 45 V, and the maximum power is 600 W. Pay attention to the series and parallel configuration of the solar panels to avoid exceeding port limits.
6. When using with DJI Power 1000/2000/1000 V2, achieving the 1800W max recharging power requires connecting the power station to a DJI Power Expansion Battery 2000.

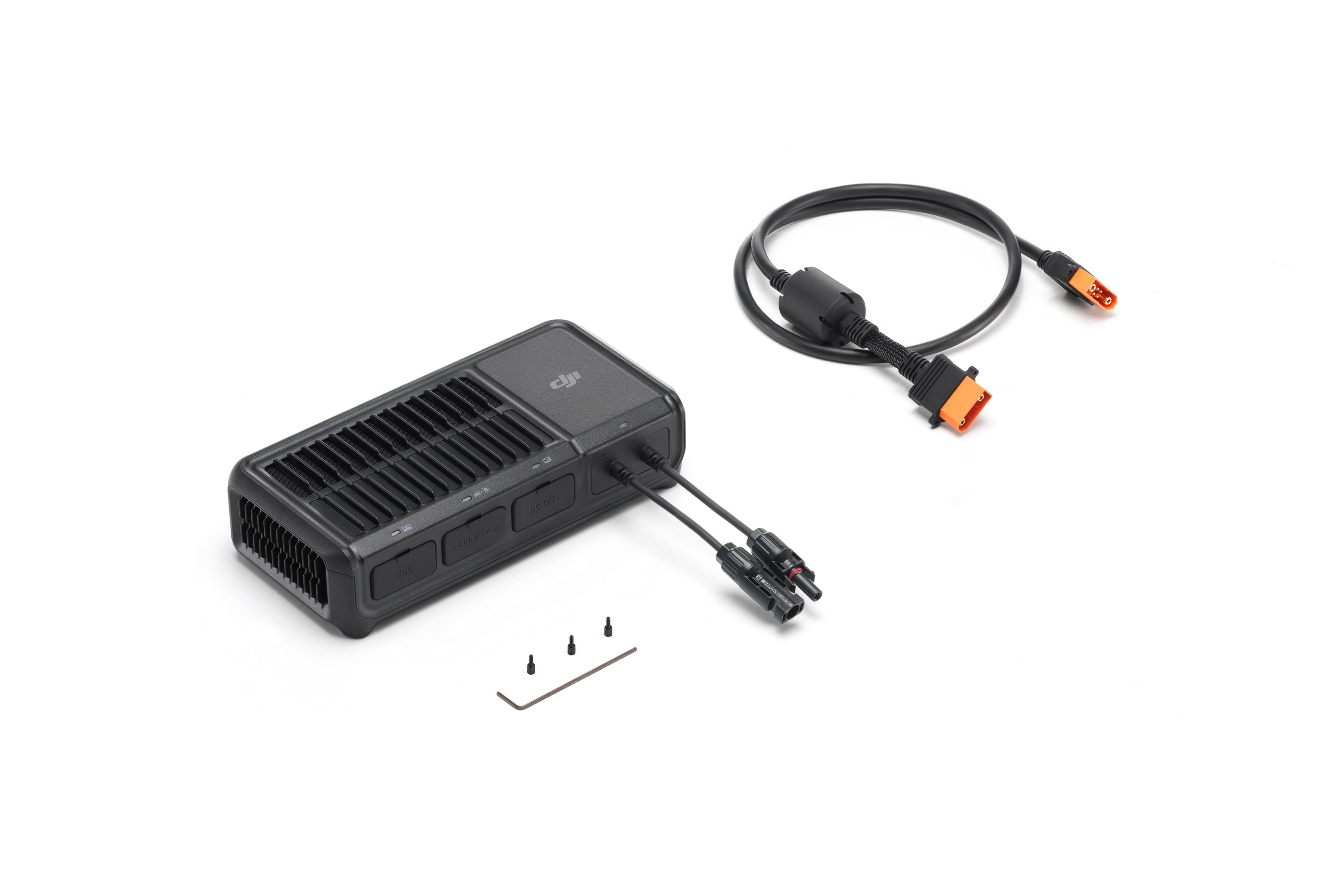

In the Box:

• DJI Power 1.8kW Solar/Car Super Fast Charger × 1
• DJI Power SDC to SDC Adapter Cable (30A) × 1
• M2.5 Hex Socket Screw × 3
• M2.5 Hex Key × 1

Specifications:

• Weight: Approx. 1.2 kg
• Dimensions: 260×126×63 mm (L×W×H)
• Ports/cables:
  • SDC Port × 1
  • Car/Solar Charging Port × 1
  • MC4 Solar Panel Cable × 1
• Input:
  • MC4 Solar Panel Cable (Input):
    • Rated: 12-60 V, max current: 20 A, max power: 1200 W
  • XT90 Car/Solar Charging Port (Input):
    • Rated: 12-45 V, max current: 43 A, max power: 600 W
• SDC Port (Output):
  • 40-58.4 V
• Output (Power Supply with Solar Power)
  • SDC Port (Input):
    • 40-58.4 V
• Output (Power Supply with Car Power):
  • SDC Port (Input):
    • 40-58.4 V
• XT90 Car/Solar Charging Port (Output):
  • 12V Car System: 11-14.4 V, 600W max power
  • 24V Car System: 22-28.8 V, 600W max power
• Charging Temperature: 0° to 45° C (32° to 113° F)
• Power Supply Temperature: -10° to 45° C (14° to 113° F)

Compatibility:

• DJI Power 1000 V2
• DJI Power 2000
• DJI Power 1000
