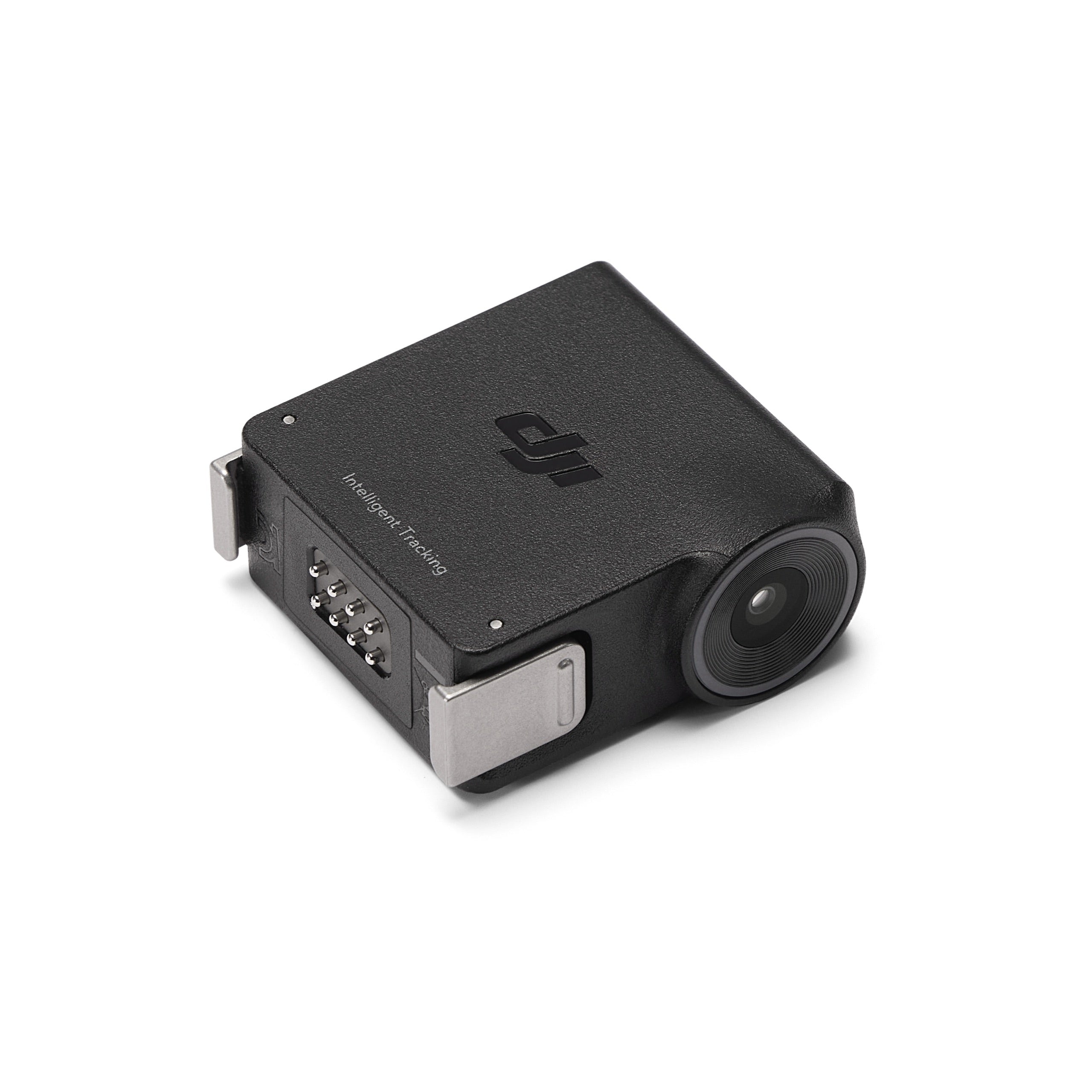

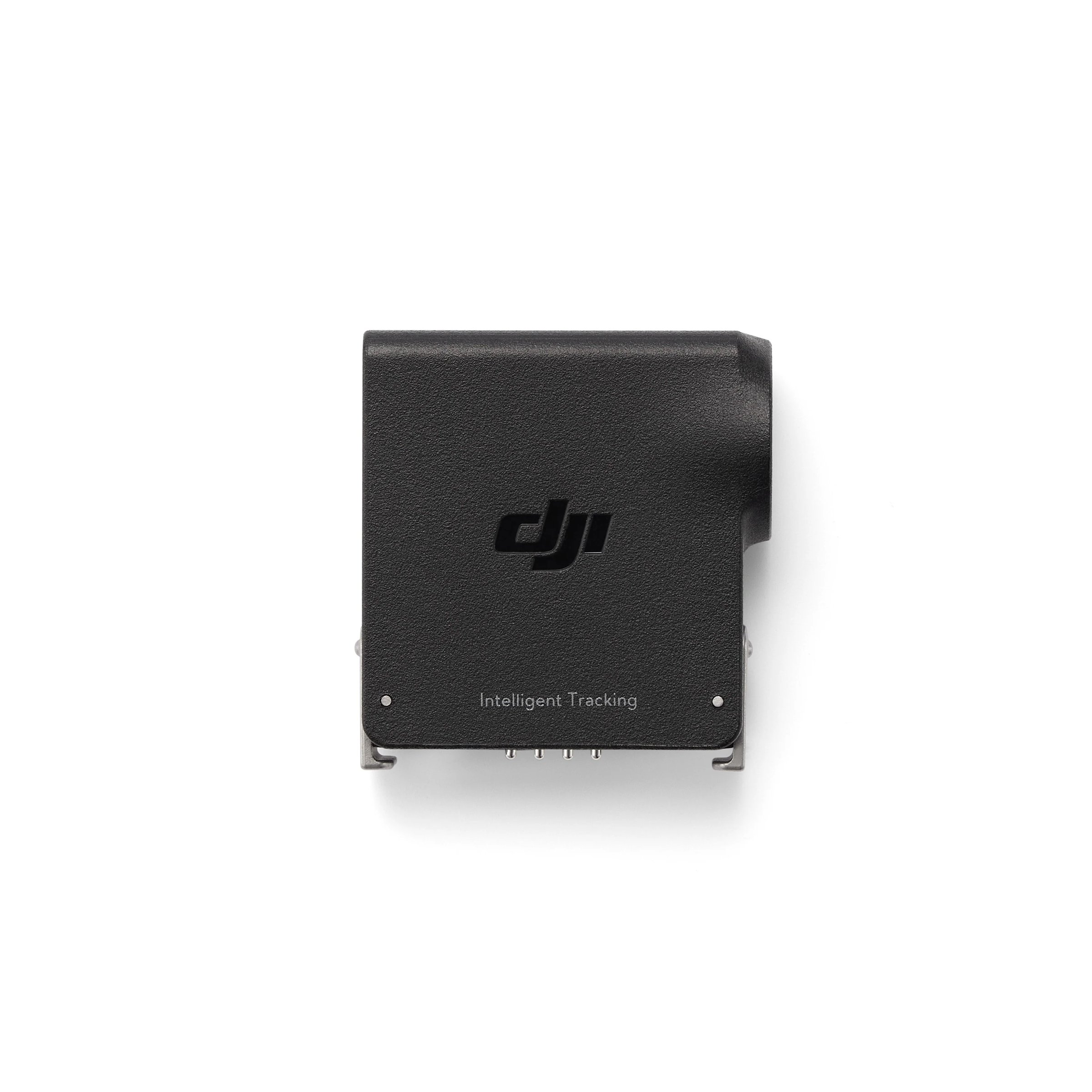

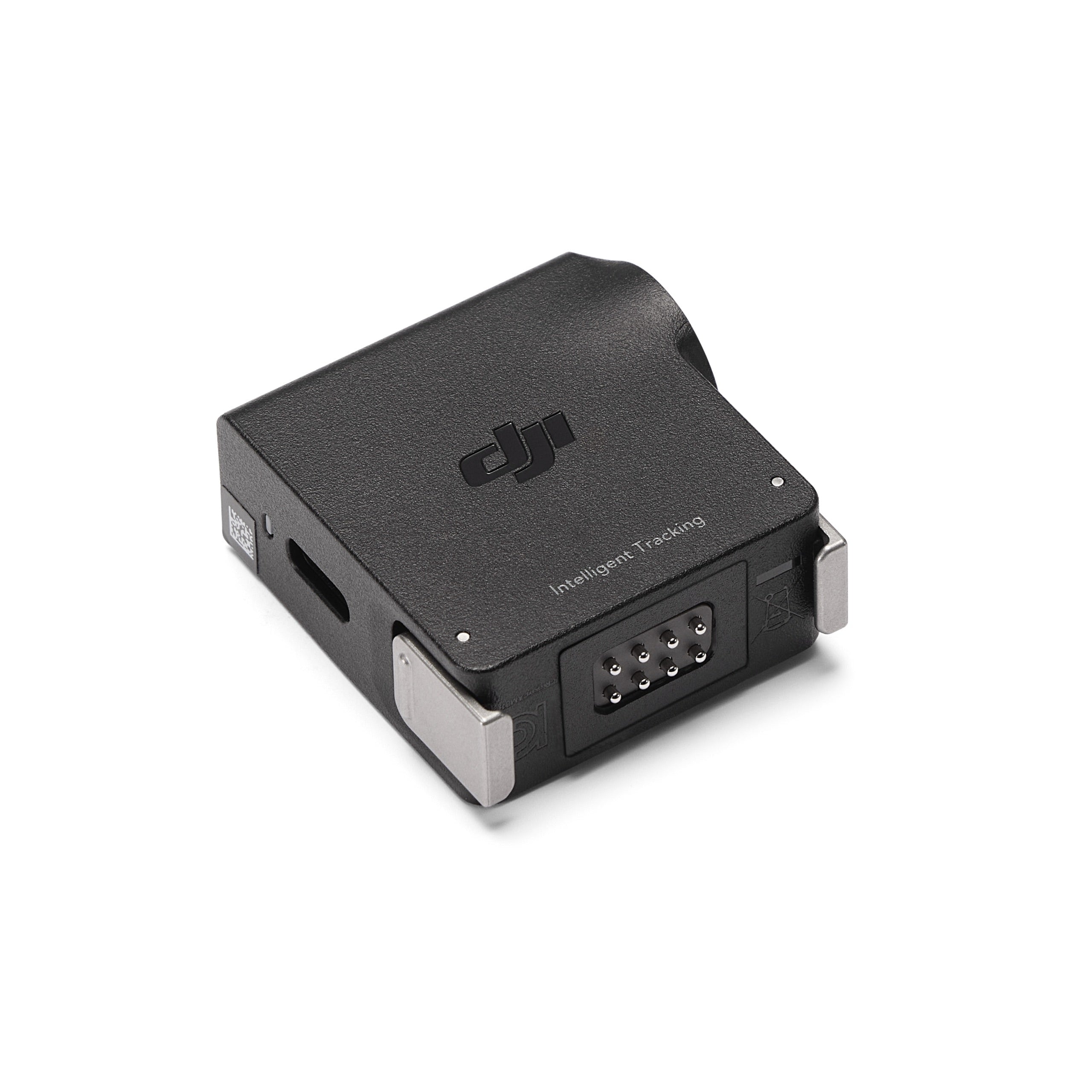

DJI RS Enhanced Intelligent Tracking Module

Helps RS 5 smoothly track and keep the subject precisely positioned in every shot once you've framed a person, vehicle, pet, or any subject from the gimbal's touchscreen, making it ideal for orbit shots, backward tracking, or solo filming from a fixed position.

Tips:
The bottom of the RS tracking module uses a magnetic locking design. Press the latches and attach it instantly to DJI RS 5 or DJI RS 4 Mini. With the Adapter Mount, it can also be mounted on and used with DJI RS 4 Pro or DJI RS 4. Please note that using the Adapter Mount will occupy the gimbal's RSS port, so the camera control cable cannot be used.

When using the RS Enhanced Intelligent Tracking Module with DJI RS 4, RS 4 Pro, or RS 4 Mini, ensure the gimbal firmware is updated to the latest version. This setup only supports tracking a single recognizable subject (person, vehicle, cat, or dog) and requires an environment free of similar interfering targets. Additionally, the tracking view cannot be displayed on the touchscreen of these gimbals.

In the Box:

• RS Enhanced Intelligent Tracking Module × 1
• RS Intelligent Tracking Module Adapter Mount × 1

Specifications:

• Weight: Approx. 19 g
• Dimensions: 35.9 × 17.5 × 38.5 mm (L×W×H)
• Tracking Distance: 0.5-10 m
• Operating Environment: Illuminance > 20 lux
• Trigger Methods: Gimbal trigger, gesture, gimbal touchscreen
• Gesture Functions: Start/stop tracking, start/stop recording, framing adjustment
• Power Consumption: Approx. 1 W
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Mounting Method: Magnetic attachment

Compatibility:

• DJI RS 5
• DJI RS 4 Pro
• DJI RS 4 Mini
• DJI RS 4
