EAN: 6937224145887

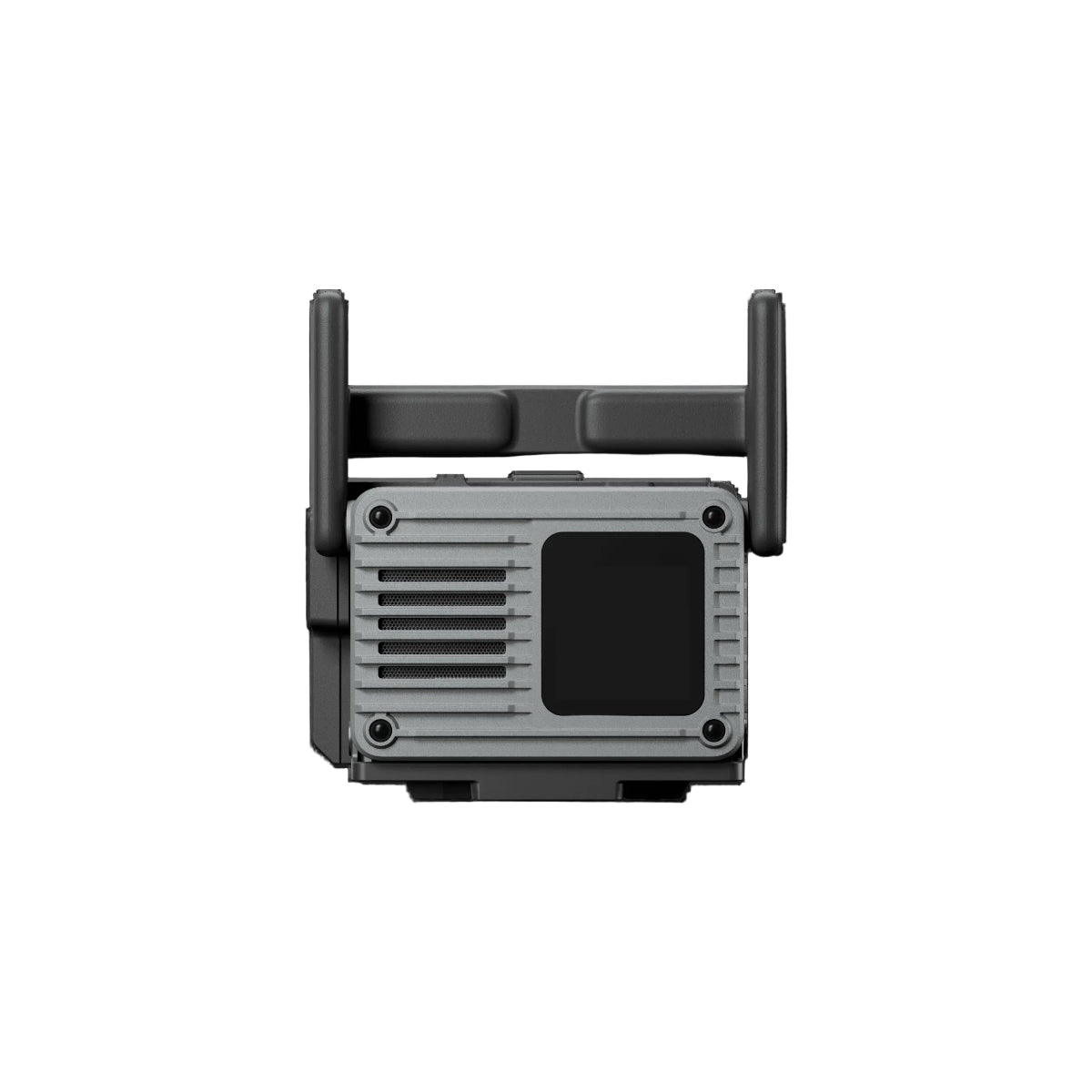

DJI SDR Transmission 2

1 TX to 8 RX With Control, Multi-Group Transmission
Auto Channel 2.0 for Seamless, Stable Feed
TX/RX Switchable for Flexible Deployment
Pairing-Free Connection for Fast Camera Switching
Supports Ronin Monitoring & Control
DCI 4K/60fps 10-bit HDR Wireless Transmission

£309.00

£309.00 ~~£309.00~~

1% credit reward. Earn 309 points on this purchase. Learn more.

Earn 1% back on every purchase!

With DJI Rewards, you earn 1% back on every purchase, whether online or in-store.

What are DJI Rewards?

DJI Rewards let you accumulate points with every purchase you make. For every £1 spent, you receive 1 point. These points can be exchanged for money-off coupons, which can be used online or in-store to save on your next order.

For example, 500 points = £5 off coupon

Please note that DJI Rewards are non-transferable, cannot be exchanged for cash, and are only valid within DJI | Hasselblad.

Pickup available at DJI | Hasselblad - Birmingham -

Usually ready in 1 hour

DJI | Hasselblad - Birmingham

Pickup available, usually ready in 1 hour

2-6 Corporation Street
Birmingham B2 4RN
United Kingdom

+441217500145
DJI | Hasselblad - Regent Street

Pickup available, usually ready in 1 hour

52 Regent Street
London W1B 5AS
United Kingdom

+442033370746
DJI | Hasselblad - White City

Pickup available, usually ready in 1 hour

Westfield London Shopping Centre
London W12 7GB
United Kingdom

+442030986990

Other Options

DJI SDR Transmission 2 Combo

£559

In Stock

Includes 2 Transceivers, 2 Camera Cold Shoe Adapters, and more. A ready-to-use kit to easily build a TX + RX setup or switch roles on the fly.

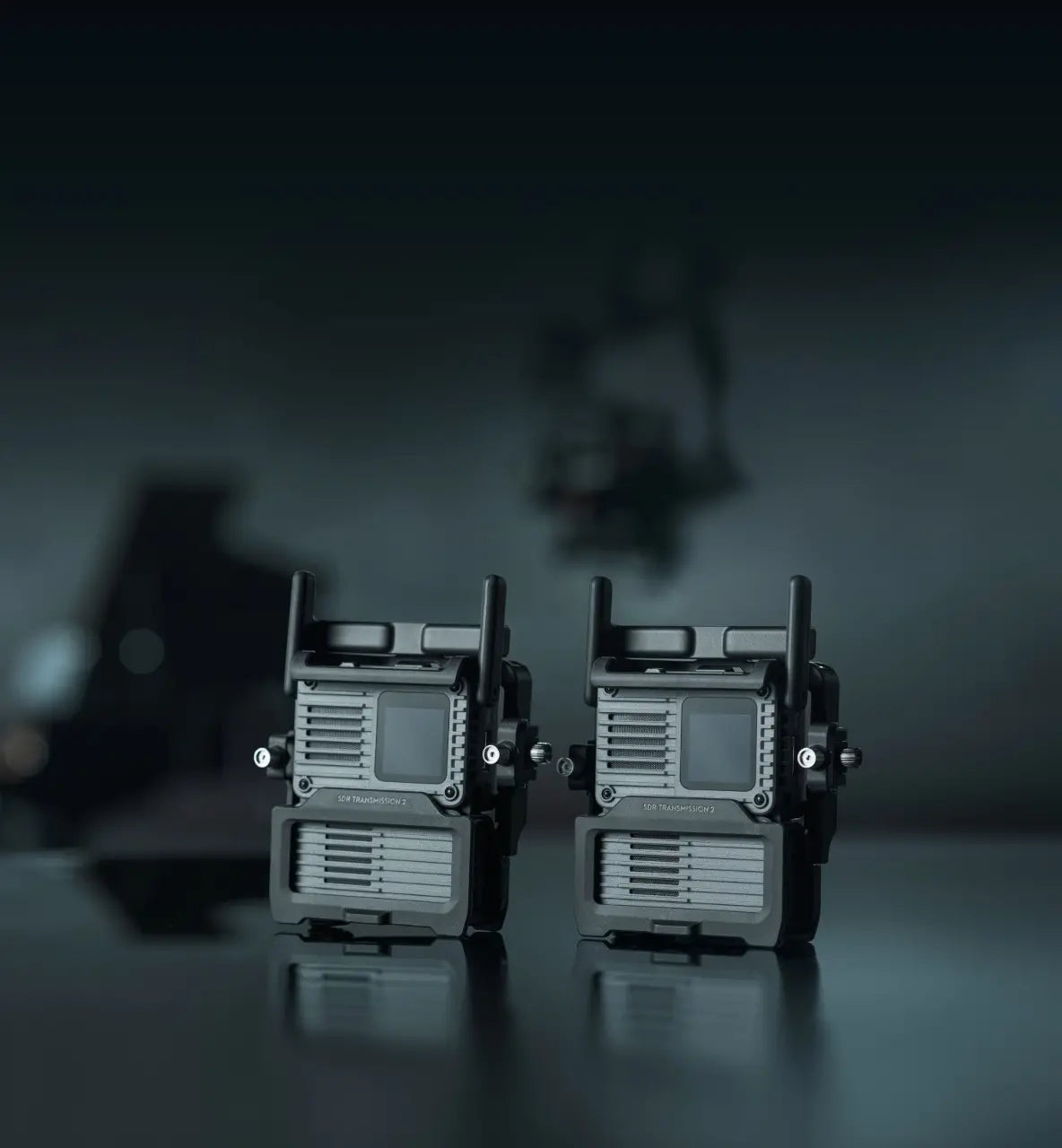

Ready for Complex Sets

DJI SDR Transmission 2 takes wireless video transmission to the next level with enhanced interference resistance, improved image quality and an extended transmission range. Even on busy production sets, it delivers a high-bitrate, low-latency video feed for dependable monitoring.

With a flexible TX/RX switchable design and compatibility with the Ronin series, professional wireless transmission and control capabilities are brought together in a compact, lightweight form factor.

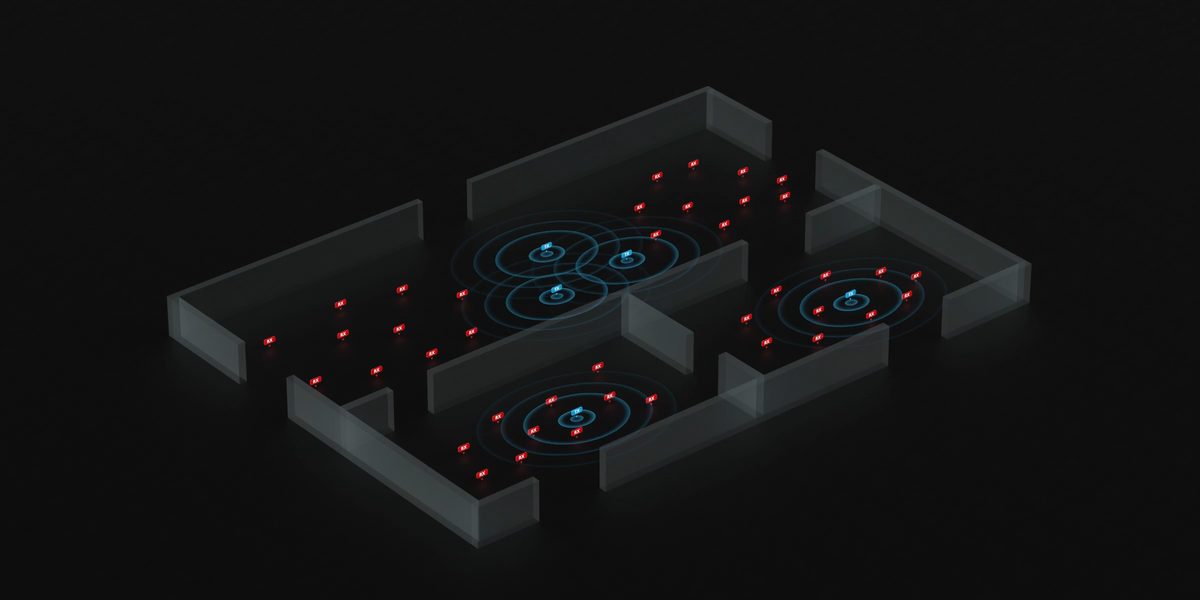

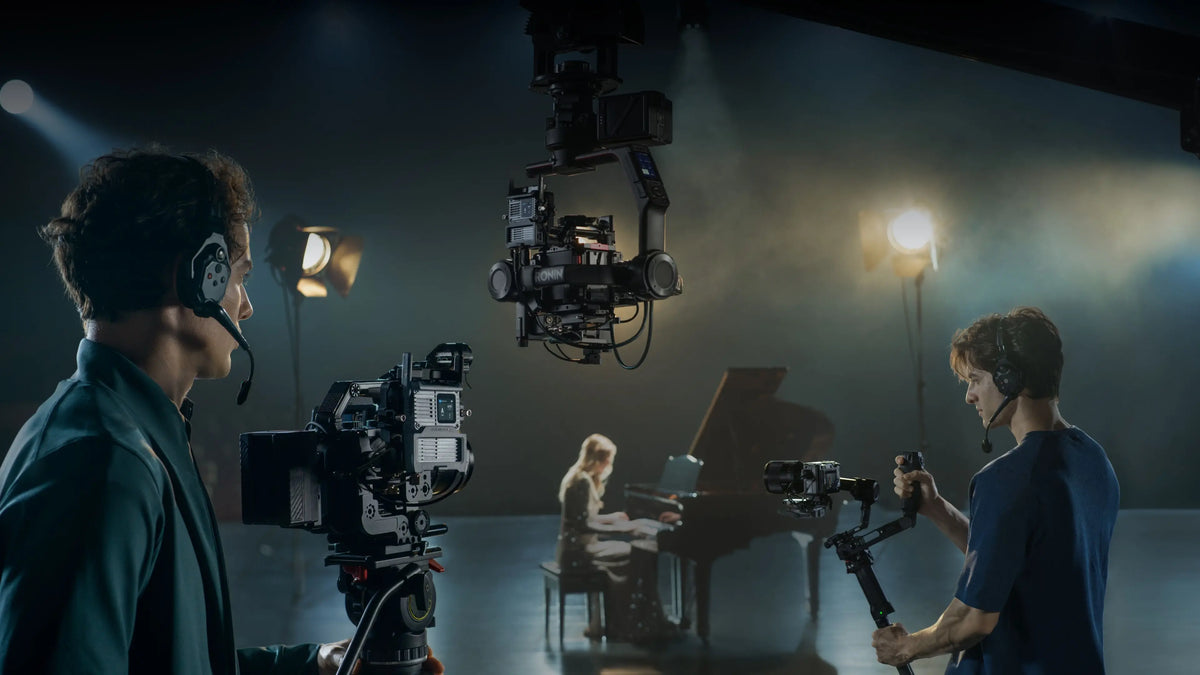

1 TX to 8 RX With Control, Multi-Group Transmission

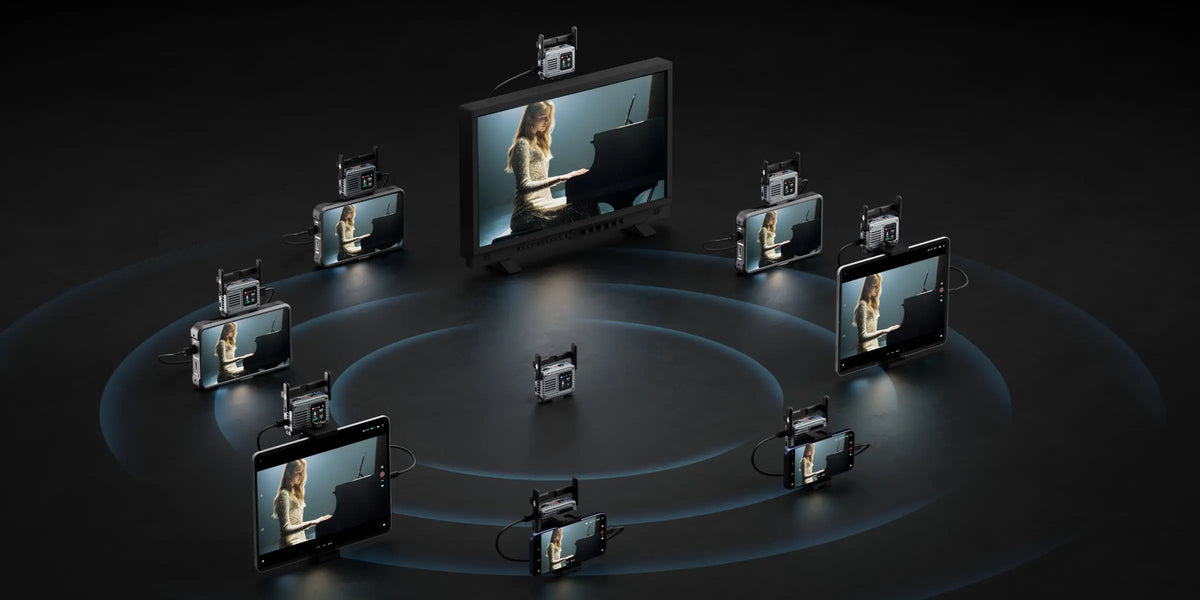

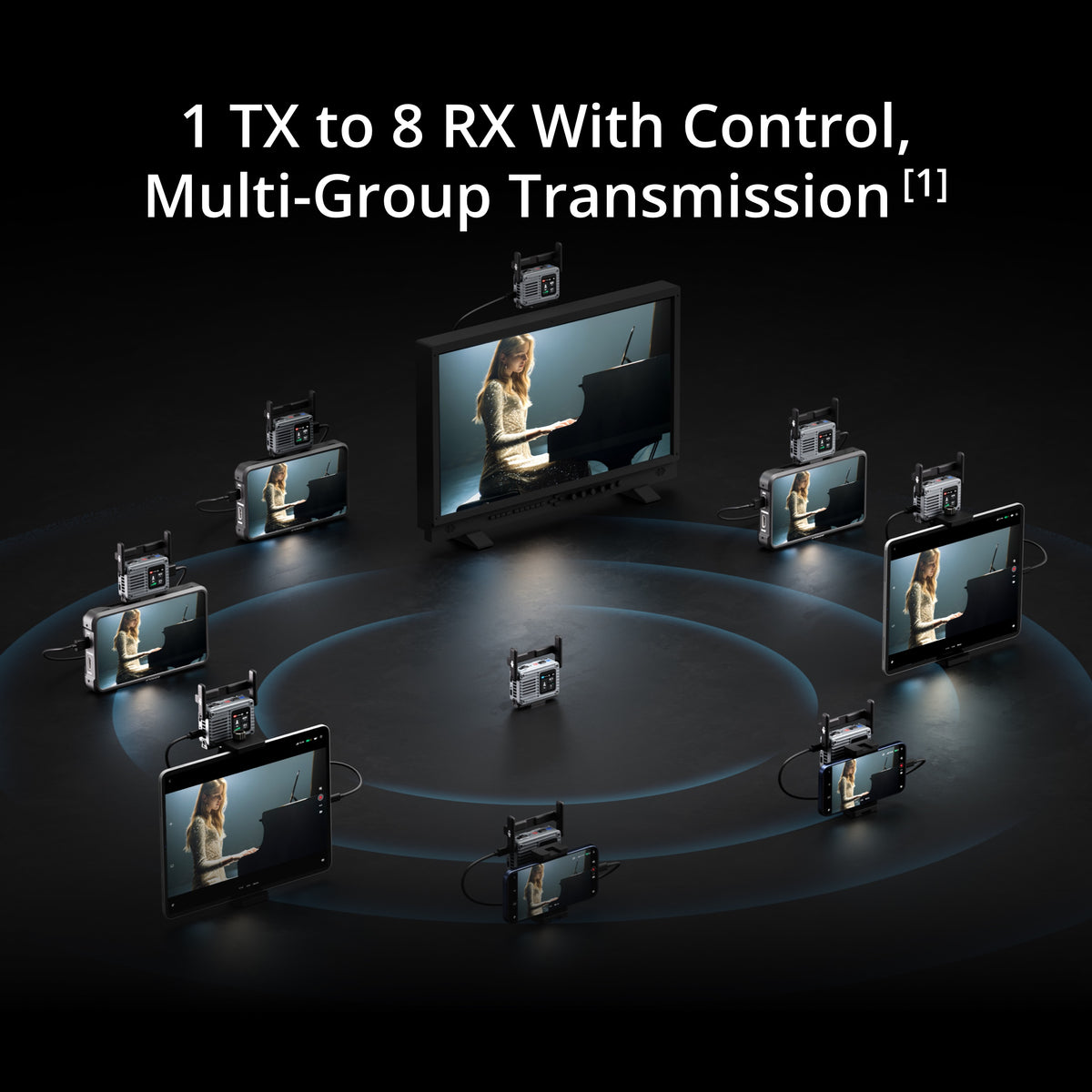

1 TX to 8 RX With Control

A single transmitter can distribute its video feed to up to eight receivers, with remote control available for each connected unit. Directors and DPs can monitor a high-resolution feed, while camera operators and focus pullers can remotely adjust supported camera settings and functions.

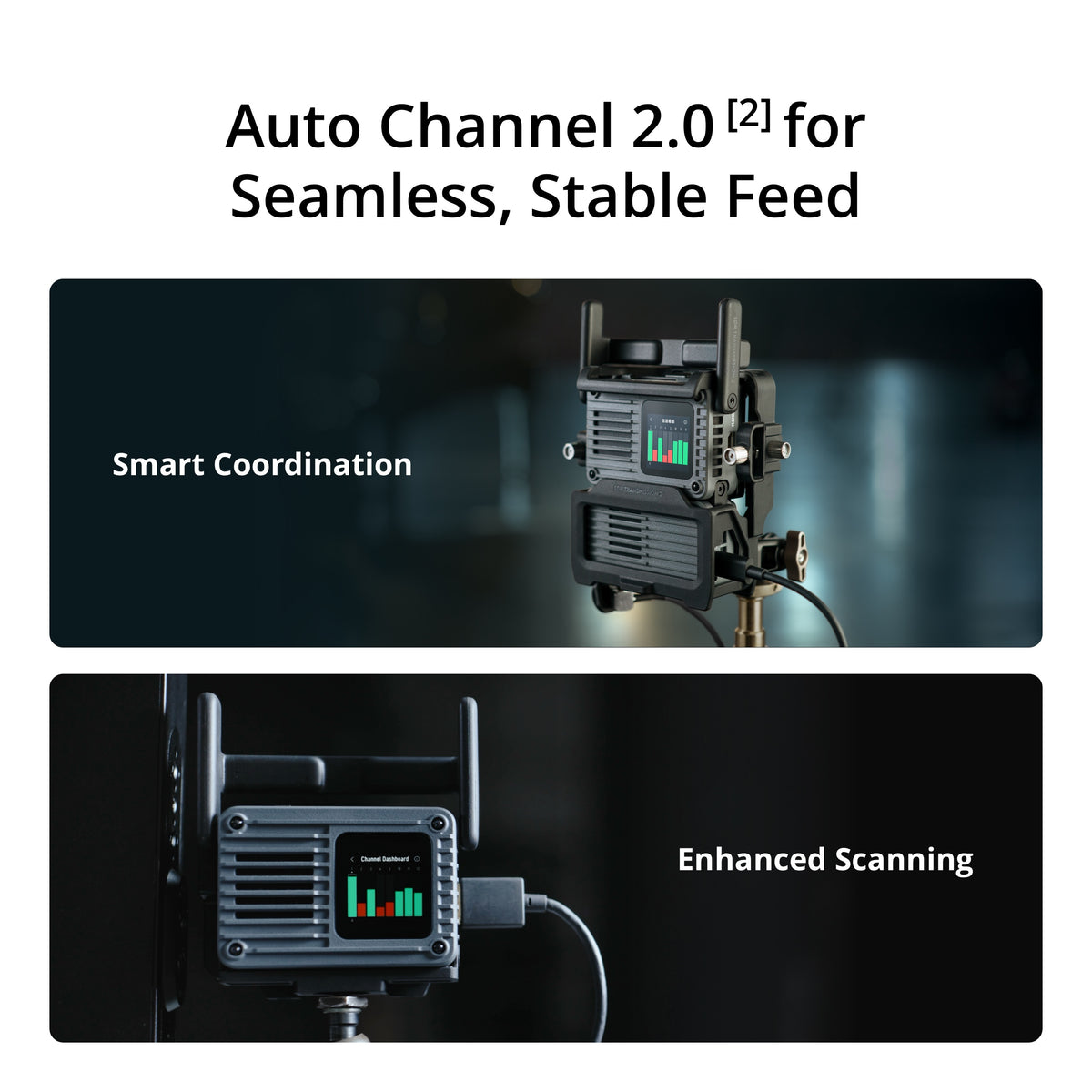

Auto Channel 2.0

Uuto Channel 2.0 simplifies frequency management by intelligently coordinating connected transceivers. When Auto Mode is enabled, the system identifies other units and automatically manages available frequencies.

Improved spectrum scanning and interference diagnostics help detect channel conflicts, allowing the system to change frequencies as conditions evolve. This helps maintain a stable wireless connection, even when several transmission systems are operating close together.

DCI 4K Monitoring

SDR Transmission 2 supports DCI 4K/60fps video with 10-bit HDR and H.265 encoding at bitrates of up to 50 Mbps. The result is highly detailed footage with smooth colour transitions and clearly defined highlights and shadows, providing consistent image quality across multiple camera feeds.

Up to 4 km Range

With transmission distances of up to 4 km under suitable conditions, the system provides greater freedom for demanding production environments. From large stadiums and dense forests to vehicle-mounted cameras and FPV drone applications, it provides a reliable wireless connection across extended distances.

Latency as Low as 35 ms

Despite its high-quality video capabilities, latency can be as low as 35 ms. This helps keep live monitoring and remote commands responsive, including operations such as focus adjustments and gimbal movements.

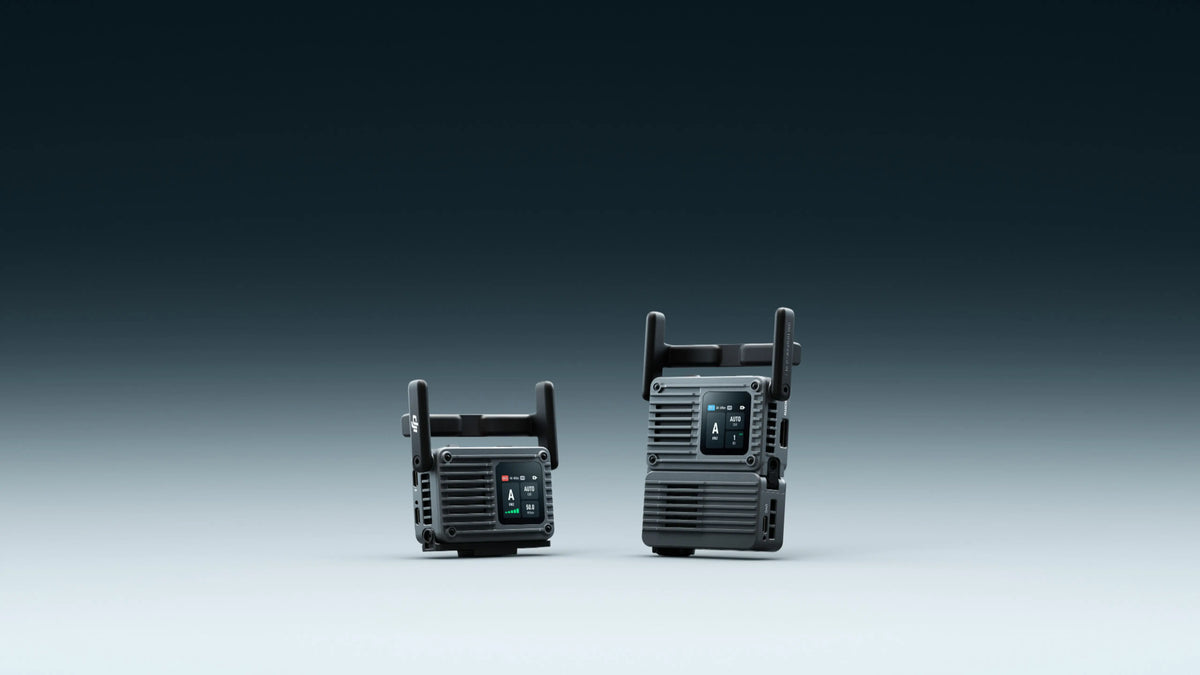

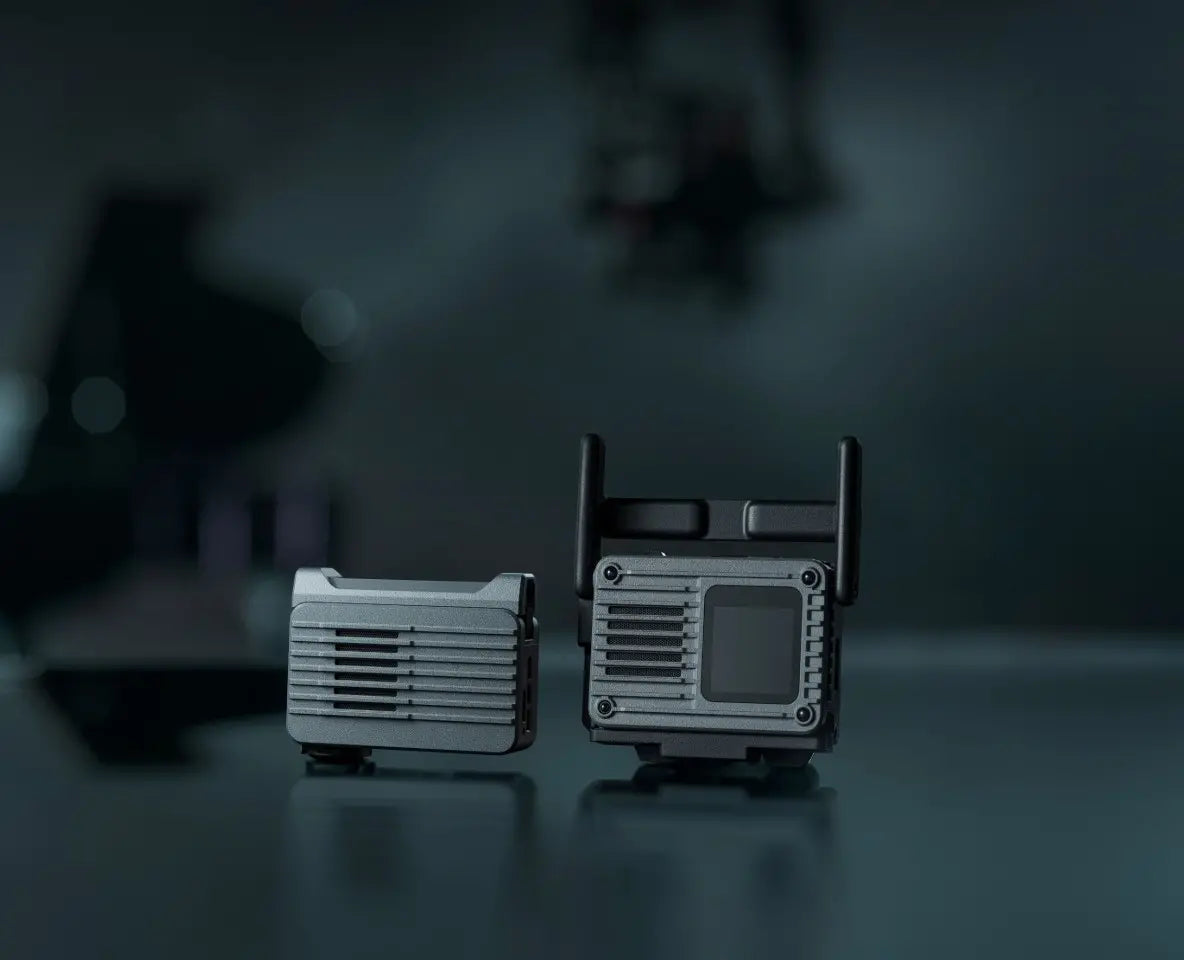

Compact Body, Serious Capability

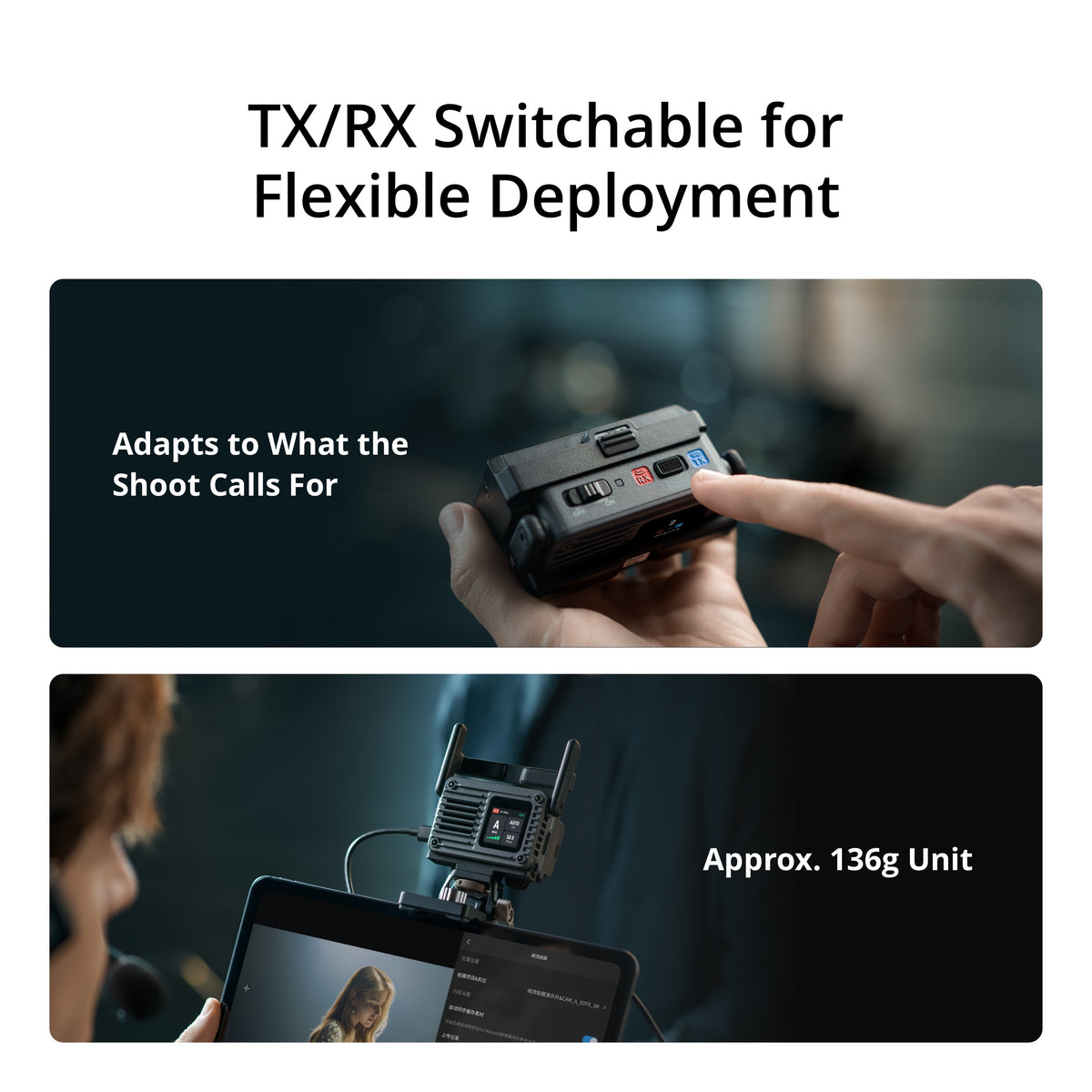

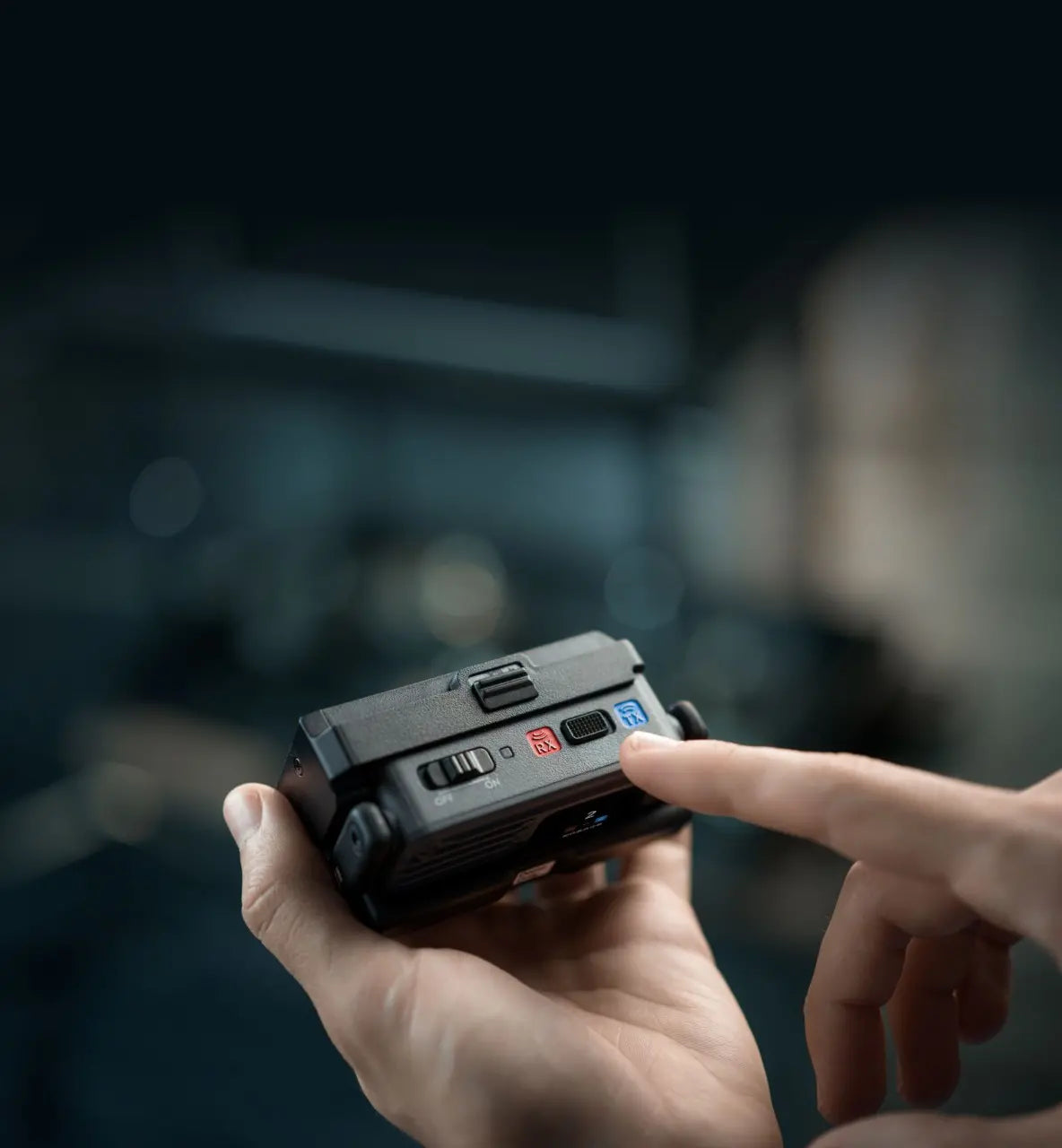

TX/RX Switchable

Switch between transmitter and receiver operation whenever your production requires it. There is no need to determine your TX-to-RX configuration in advance, allowing each unit to adapt to the requirements of the shoot.

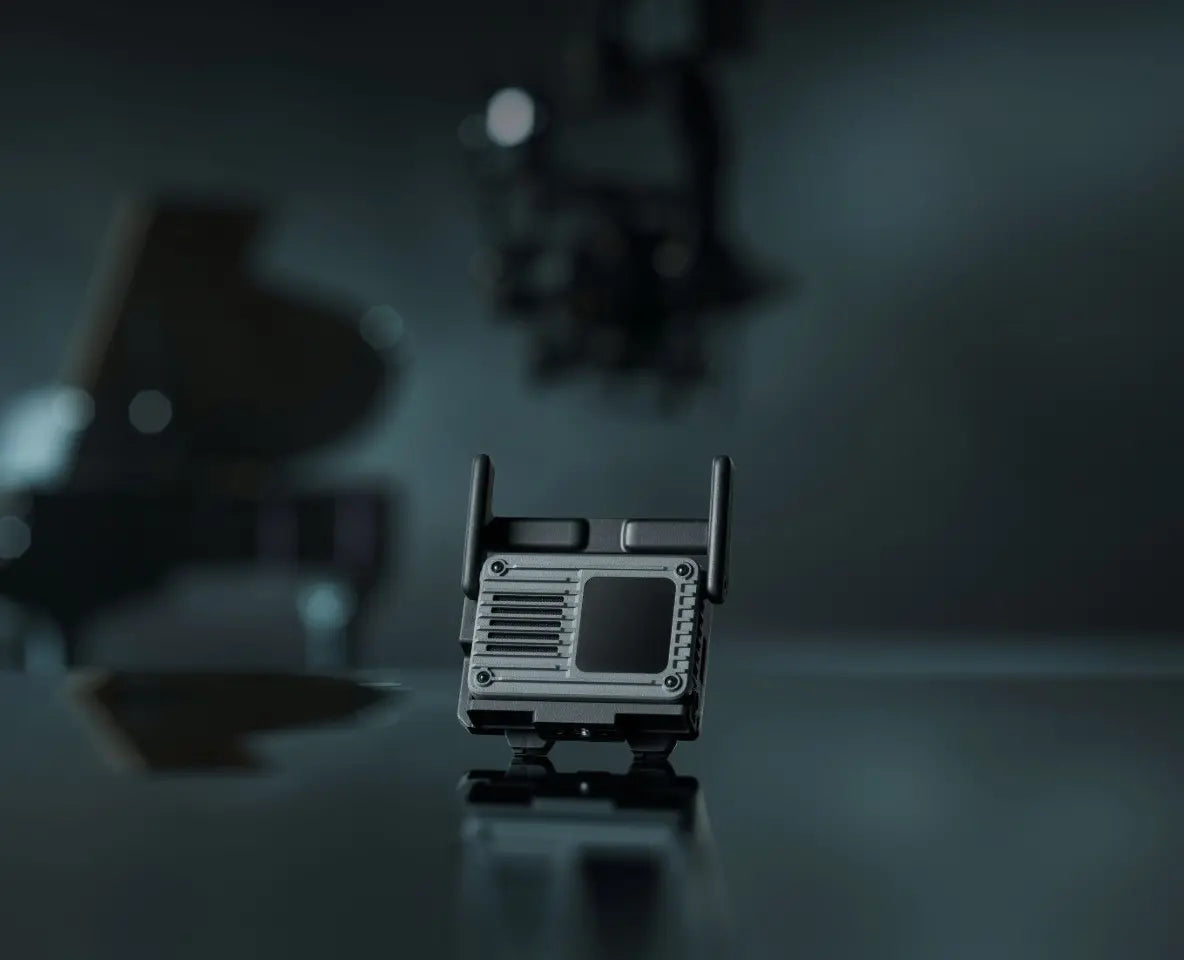

Approx. 136g Unit

The transceiver features one HDMI port and two USB-C ports. At approximately 136 g, its lightweight construction helps reduce the load on handheld gimbals while making it easy to integrate into a wide variety of camera setups.
Expansion Plate

The Expansion Plate provides one SDI, one HDMI and four USB-C ports. It also supports SDI metadata transmission from compatible professional cinema cameras, including systems from ARRI and RED.

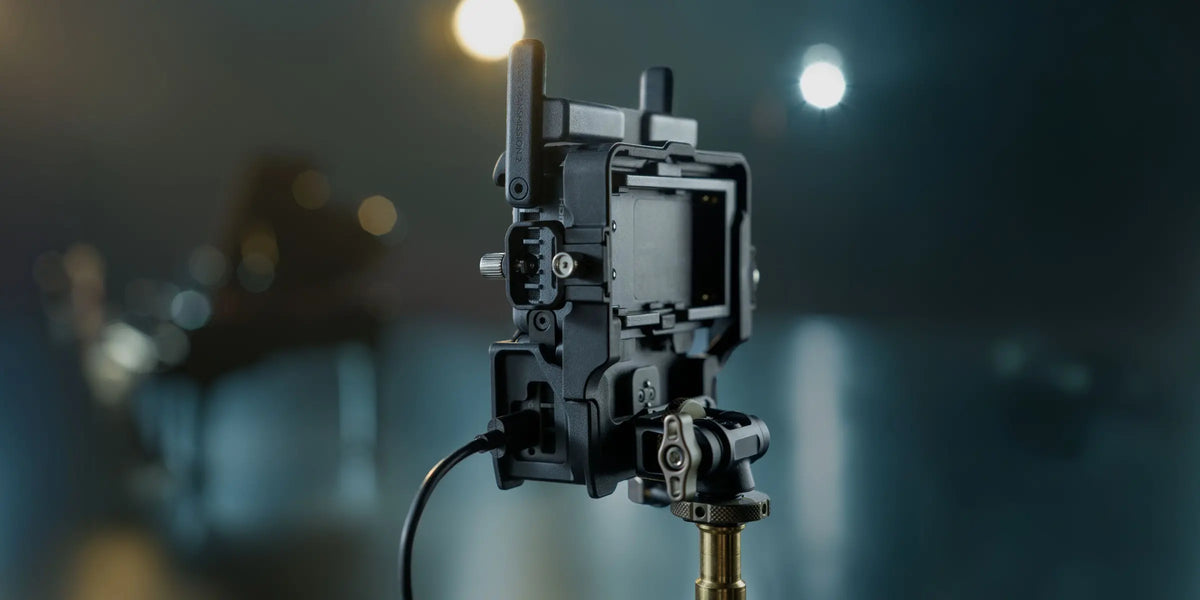

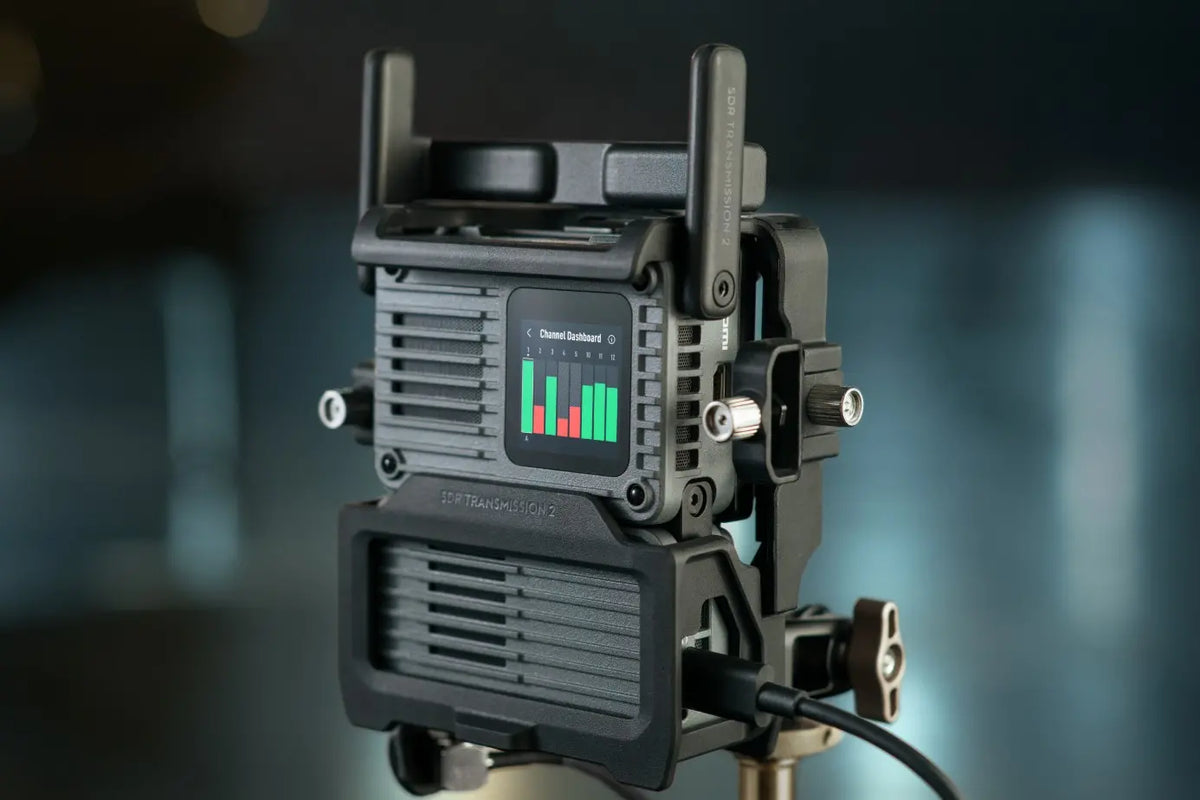

Transceiver Cage

For vehicle-mounted and outdoor applications, the Transceiver Cage provides additional protection and multiple mounting points. It securely attaches the transceiver to a wide range of gimbals, rigs and other production equipment.

Ronin Ecosystem and Beyond

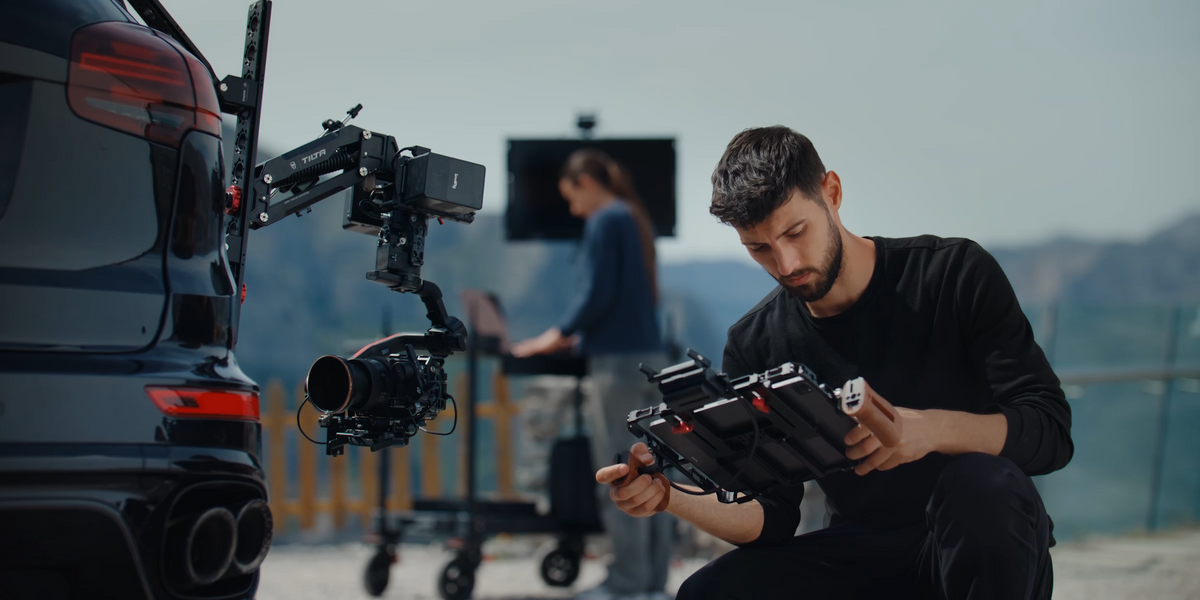

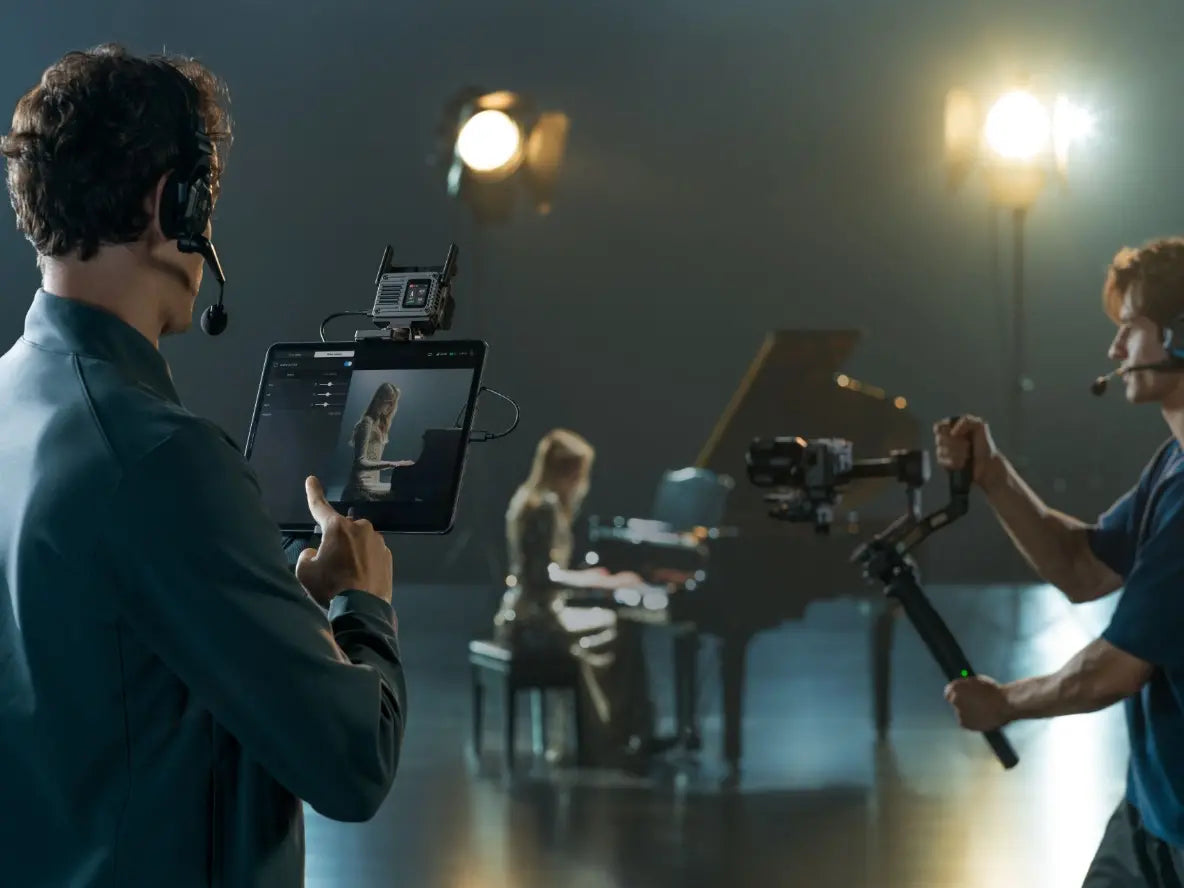

Compact Systems

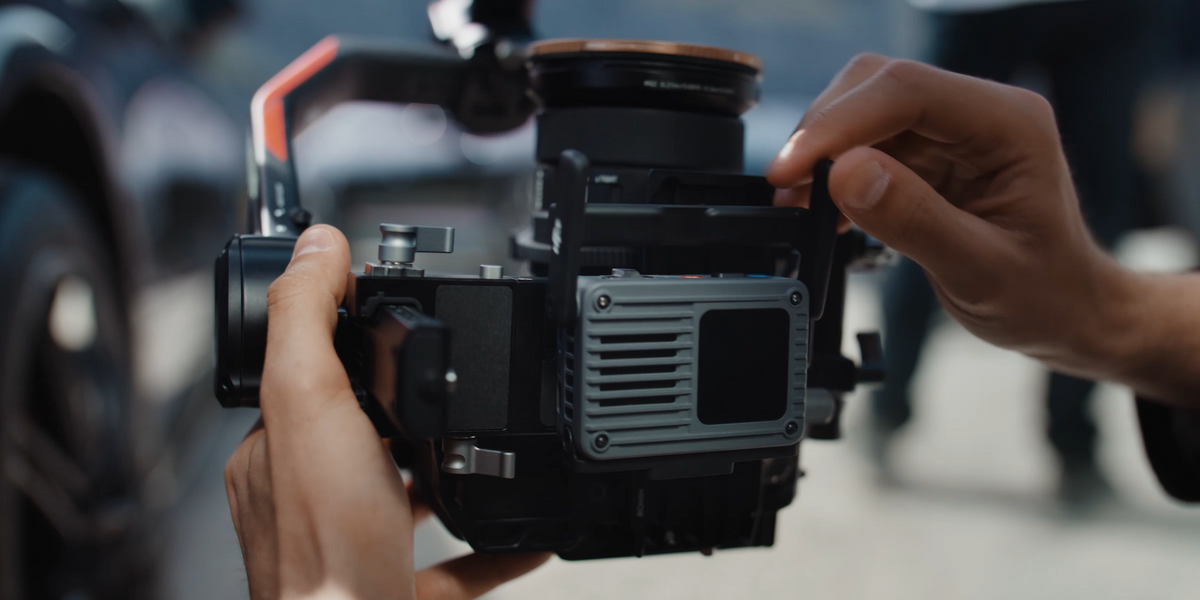

SDR Transmission 2 integrates with DJI RS series stabilizers, providing a streamlined combination of wireless monitoring and gimbal control. Through the DJI Ronin app, users can monitor the camera feed, operate the gimbal remotely and start or stop recording from a compatible smartphone.

Professional Monitoring and Control

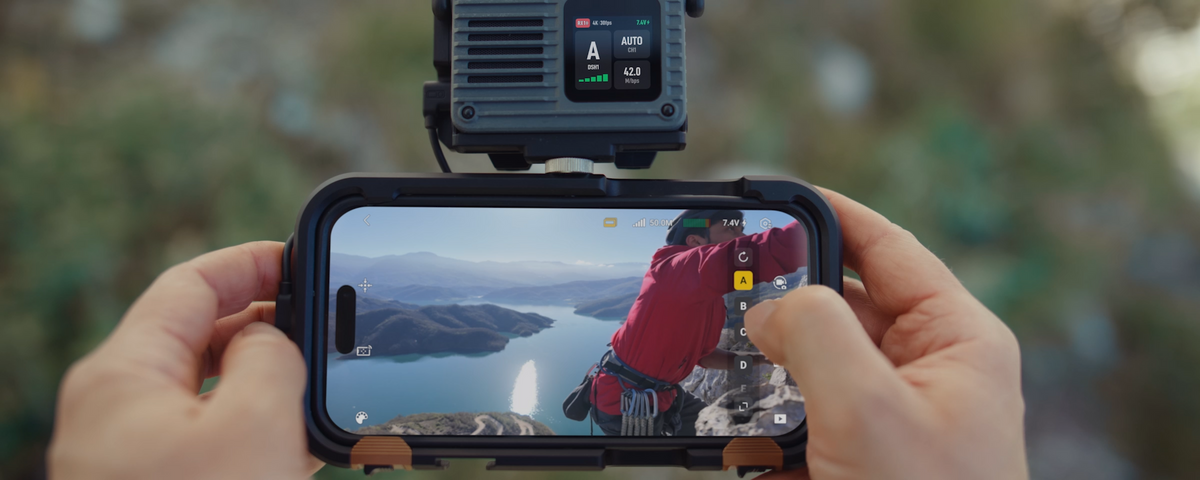

Camera Switching

Switch between connected camera feeds without the need to restart the system, scan for devices or establish a new connection. Camera feeds can be changed directly from the transceiver or through the DJI Ronin app, helping save valuable time during production.

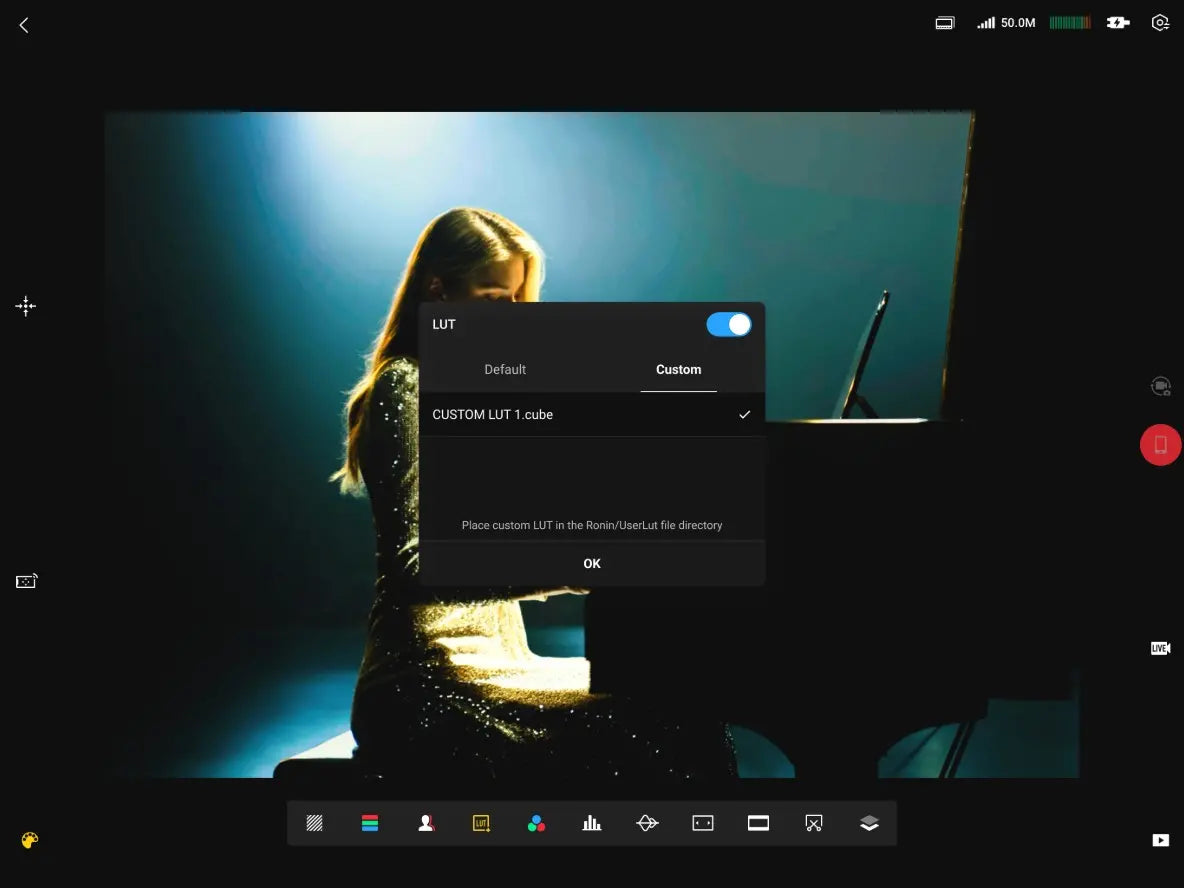

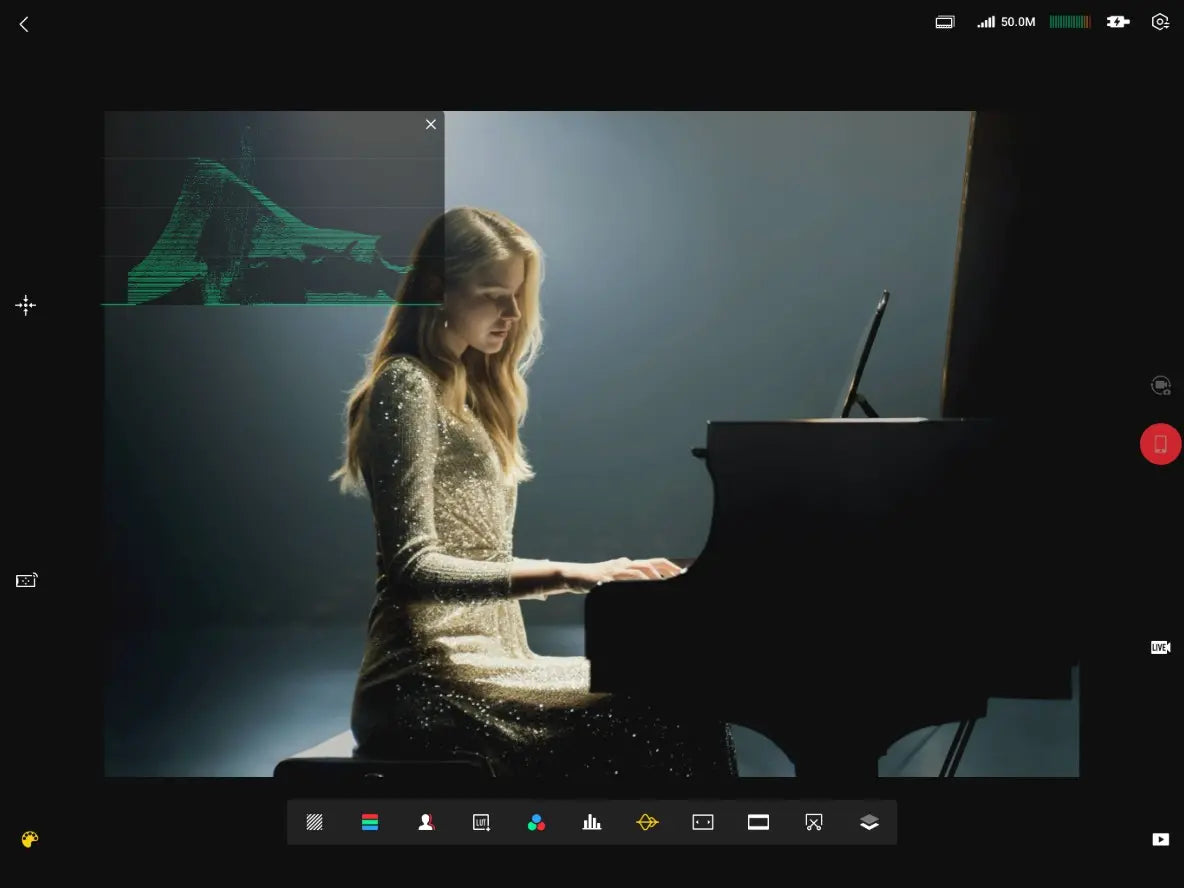

DJI Ronin App Monitoring Assistance Tools

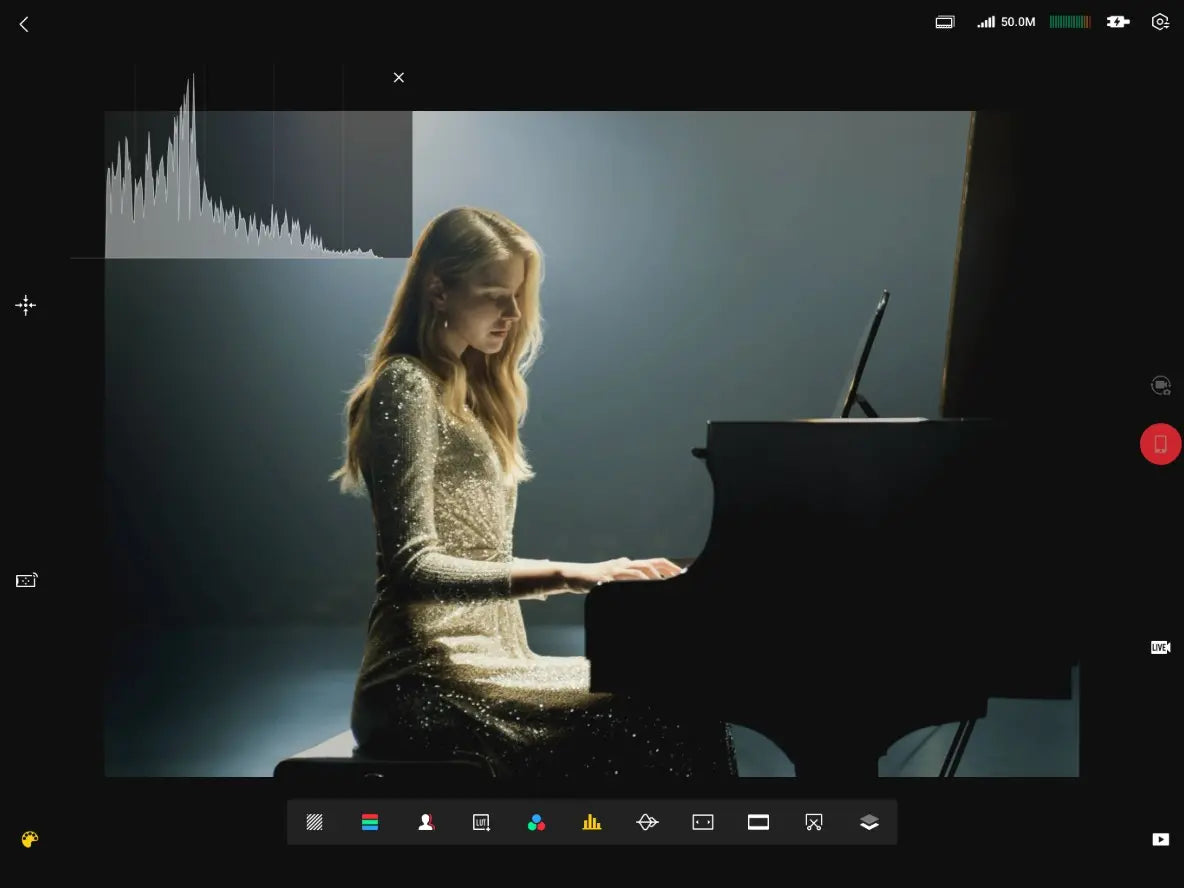

The DJI Ronin app provides professional monitoring functions including LUT, histogram, waveform and false colour. These tools give filmmakers additional image information, helping them assess exposure and other image characteristics more accurately during production.

LUT
Histogram
Waveform

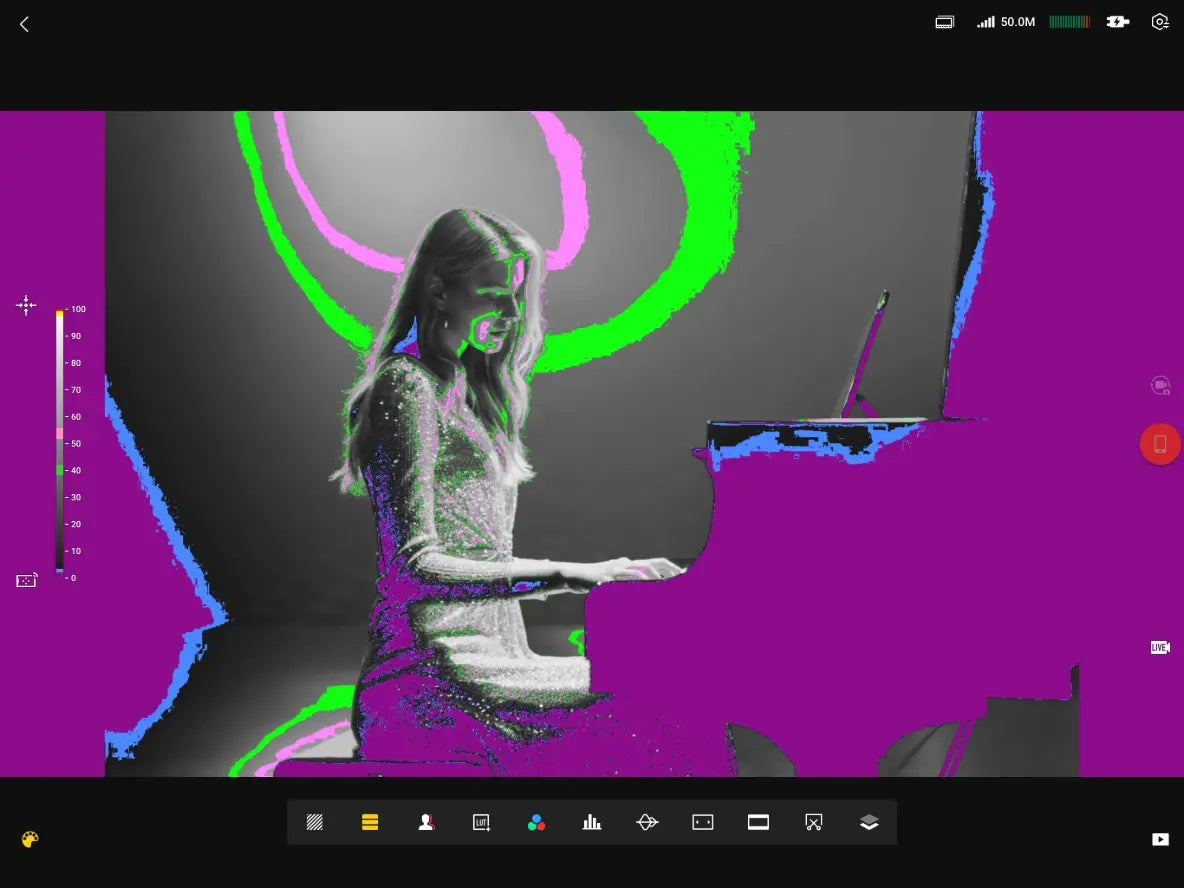

False Color
PTP/CEC Camera Control

DJI SDR Transmission 2 supports PTP camera control, allowing compatible cameras to be monitored and adjusted remotely through the DJI Ronin app. Depending on the connected camera, users can control settings such as aperture, shutter speed and ISO, as well as trigger photo capture and start or stop video recording.
The system also supports CEC control for Sony cameras, enabling Mirror Control mode.
Control for the RS Series Stabilizers

Compatible RS Series stabilizers can be controlled wirelessly through the DJI Ronin app. Available functions include Force Mobile, virtual joystick control and gimbal recentering, providing flexible options for remote stabilizer operation.

Power Supply Solutions

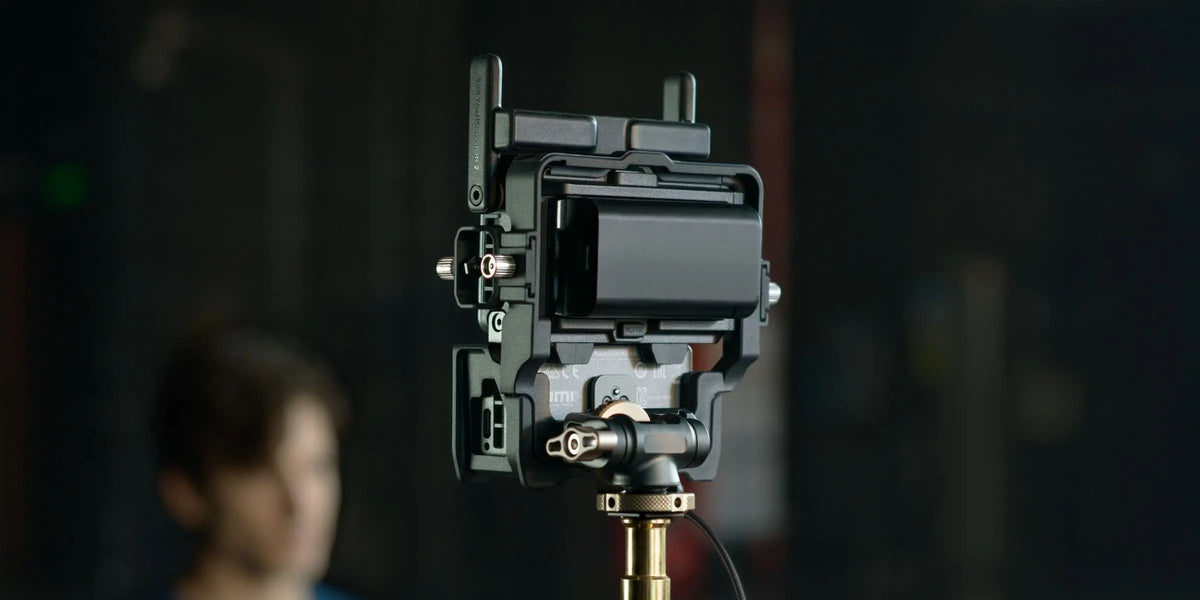

NP-F Power Supply

The transceiver supports standard NP-F battery types with an operating voltage range of 6.8 to 8.4 V, providing a familiar power solution for professional camera rigs.

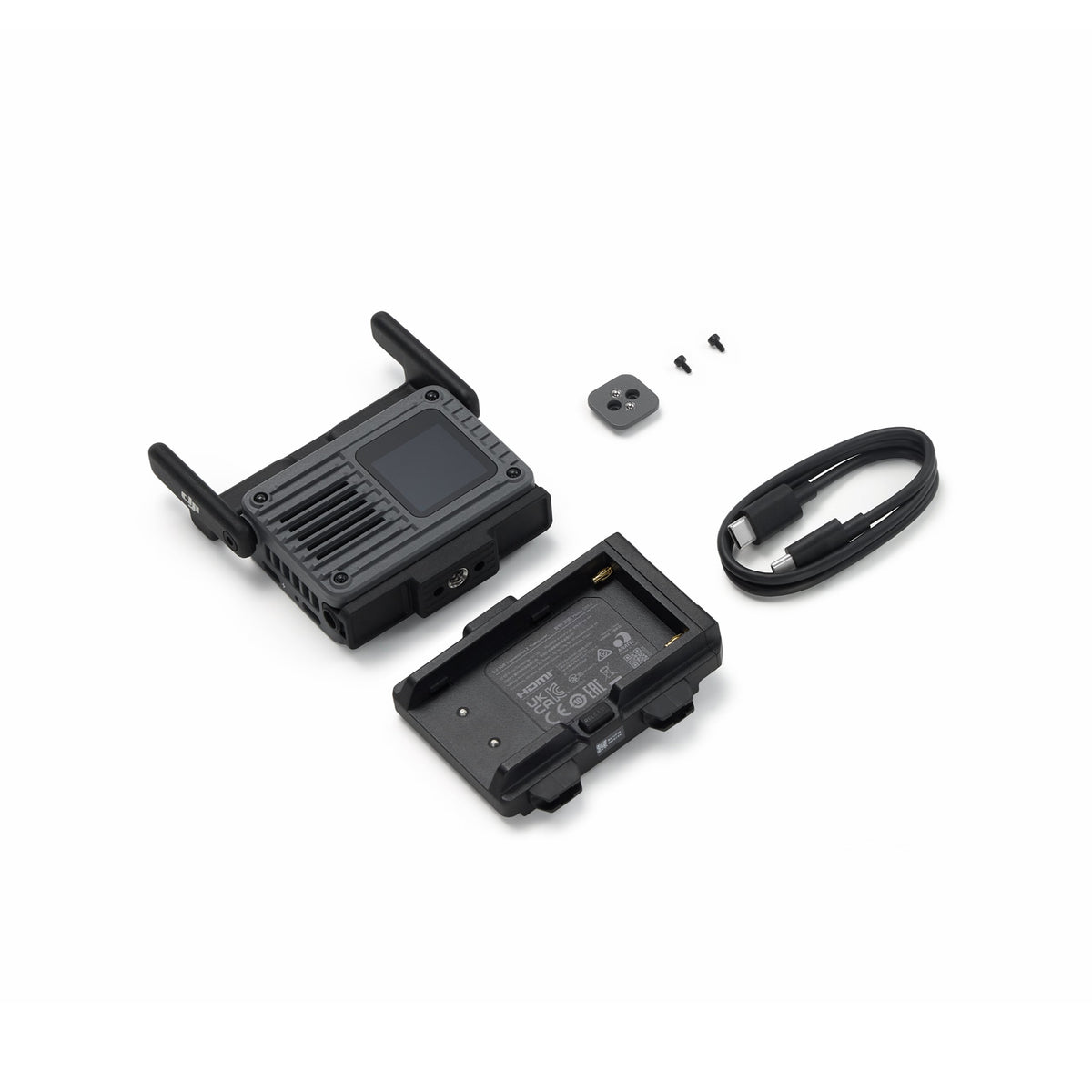

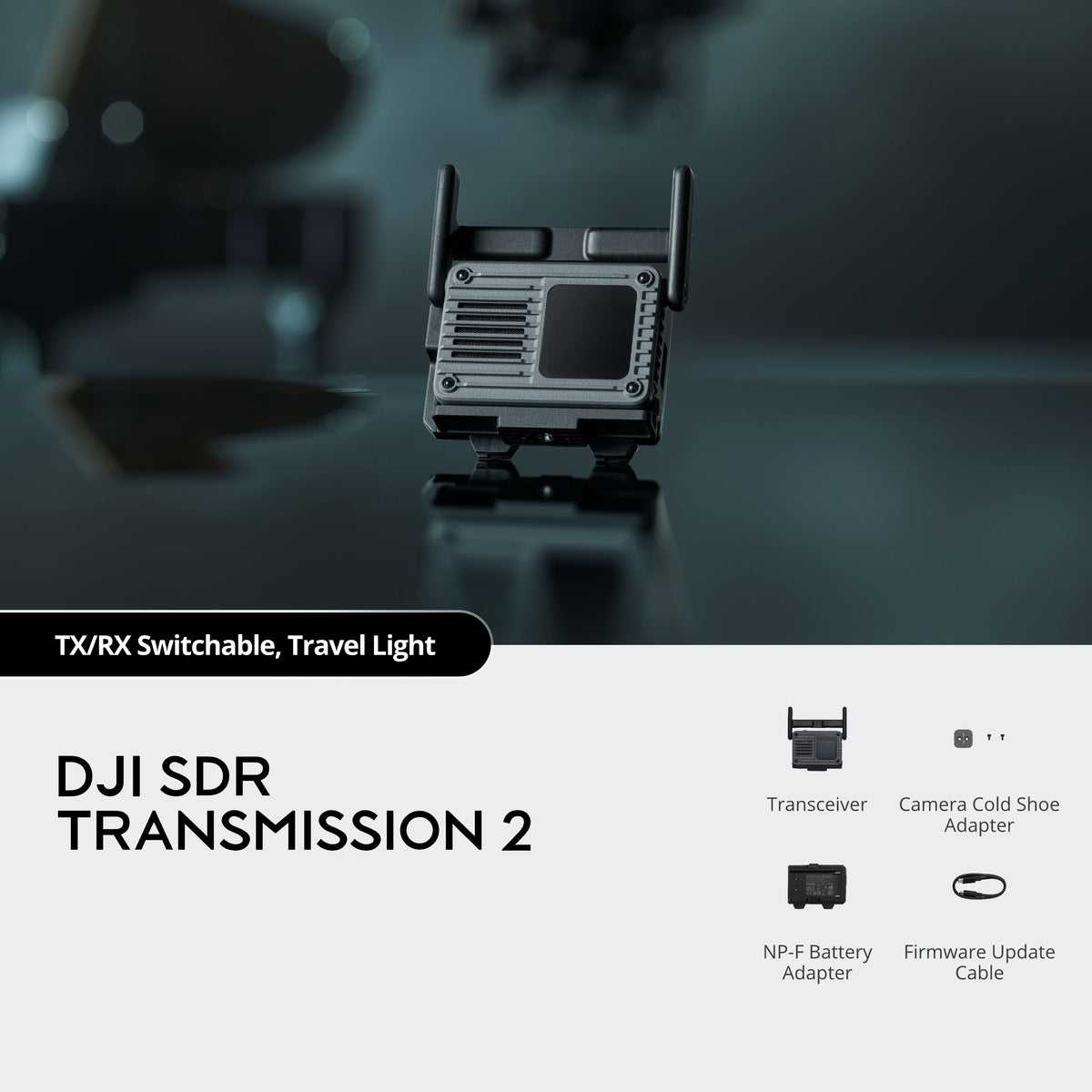

What's Included

DJI SDR Transmission 2 Transceiver

x 1

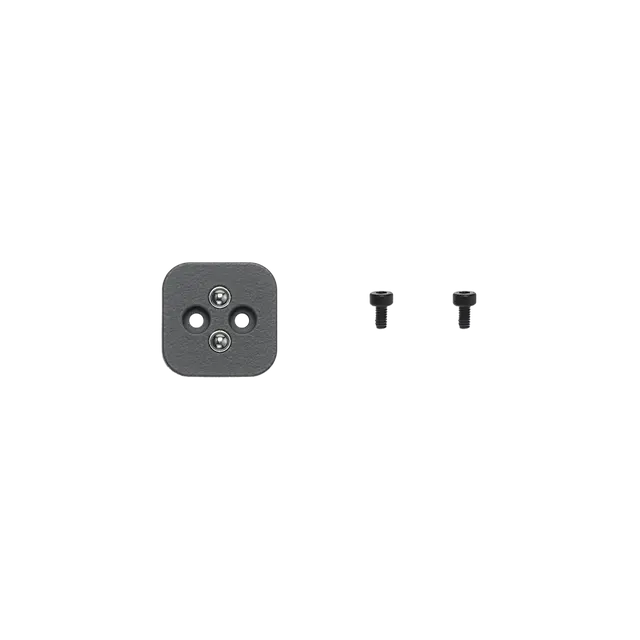

DJI SDR Transmission 2 Camera Cold Shoe Adapter

x 1

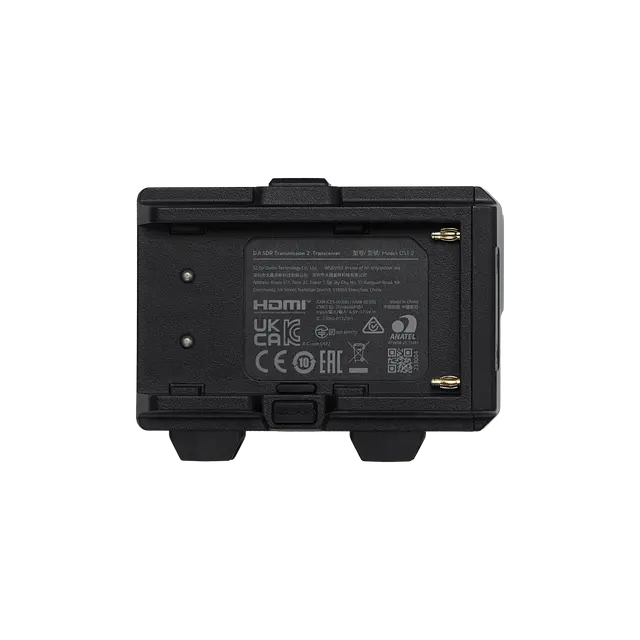

DJI SDR Transmission 2 NP-F Battery Adapter

x 1

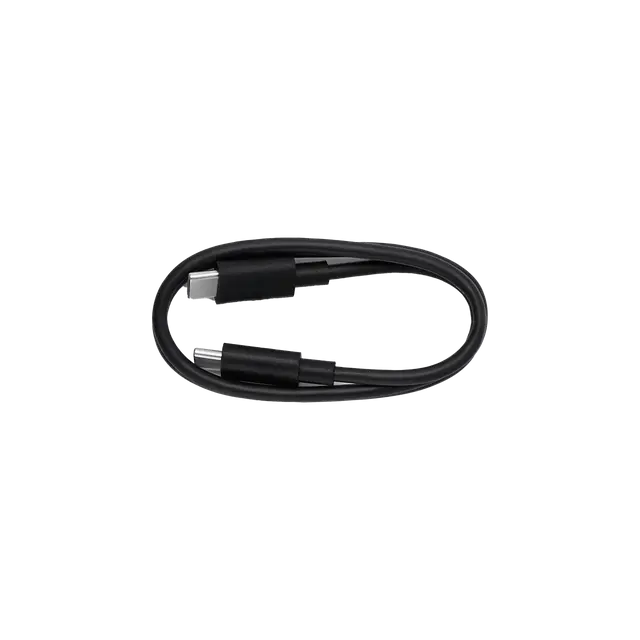

Firmware Update Cable (USB-C to USB-C, 50 cm)

x 1

Specifications

Specifications for product DJI SDR Transmission 2
Transceiver
Weight	Approx. 136 g (including antennas)
Dimensions	76×61×25 mm (L×W×H, excluding antennas and Cold Shoe Adapter)
Ports	HDMI: Input/output USB-C (Top): PD power input/output USB-C (Bottom): DP input/output, PD power input/output, device activation and firmware updates, log export, phone app connection, and connection to the DJI Ronin series, Osmo Action 6, and Osmo Pocket series* devices The SDI port is available on the DJI SDR Transmission 2 Expansion Plate, which is sold separately. * Supported models include DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, and Master Wheels. ** Supports Osmo Action 6 and Osmo Pocket series (Osmo Pocket 4 and later) via USB-C for monitoring and power supply.
Operating Frequency	Non-DFS Frequency Band: 2.400-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz DFS Frequency Band: 5.250-5.350 GHz 5.470-5.725 GHz The 5.8 GHz and DFS frequency bands are prohibited in certain countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
Transmitter Power (EIRP)	2.400-2.4835 GHz: < 20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz: < 23 dBm (SRRC/CE/MIC) 5.250-5.350 GHz: < 23 dBm (SRRC/CE/MIC) 5.470-5.725 GHz: < 26 dBm (CE/MIC) 5.725-5.850 GHz: < 30 dBm (SRRC) < 14 dBm (CE)
Maximum Bandwidth	40 MHz
Maximum Encoding Bitrate	50 Mbps The maximum encoding bitrate is 50 Mbps, measured under controlled conditions. Actual encoding and transmission bitrates may vary depending on the environment and transmission distance.
Power Consumption	Standby (no external devices connected): Single Transmitter: Approx. 5.04 W Single Receiver: Approx. 5.31 W 1T1R Transmission: Main Unit: Transmitter approx. 8.52 W, receiver approx. 7.58 W Each Unit With an Expansion Plate (SDI input/output): Transmitter approx. 10.36 W, receiver approx. 8.89 W Measured at a room temperature of 25° C (77° F), at a distance of approximately 10 meters, in a 1T1R setup, using PD for power supply.
Power Supply	USB-C Power Supply Type 1: 15 V, 3 A (PD protocol) USB-C Power Supply Type 2: 6.8-17.5 V DC NP-F Battery Power Supply Voltage: 6.8-8.4 V A PD power adapter with an output of 65 W or above is required.
Video I/O Formats	DCI 4K: 23.98/24/25/29.97/30/50/59.94/60fps 4K UHD: 23.98/24/25/29.97/30/50/59.94/60fps 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i (input only on the main unit; input/output on the Expansion Plate): 50/59.94/60fps 720p: 50/59.94/60fps 4K video format is only supported via the HDMI port and the bottom USB-C port of the transceiver main unit.
Audio I/O Formats	Input Audio Format: SDI embedded, HDMI embedded, DP embedded Output Audio Format: 16-bit, 48 kHz, stereo PCM
Video Transmission System	SDR
Minimum Video Transmission Latency	35 ms Camera and screen display latency are not included. Measured when shooting 1080p/60fps and 4K/60fps video.
Video Coding Format	H.265
Maximum Transmission Distance	4 km (CE) Measured under CE compliance using one TX and one RX in open, unobstructed, and interference-free controlled conditions.
Operating Temperature	-10° to 40° C (14° to 104° F)

FAQs

Does DJI SDR Transmission 2 provide channel quality monitoring?

Yes. The transceiver’s Channel Dashboard and the DJI Ronin app both display a signal quality bar graph. Higher bars represent stronger channel quality. Green indicates a channel with good signal quality, while red indicates a channel with poor signal quality.

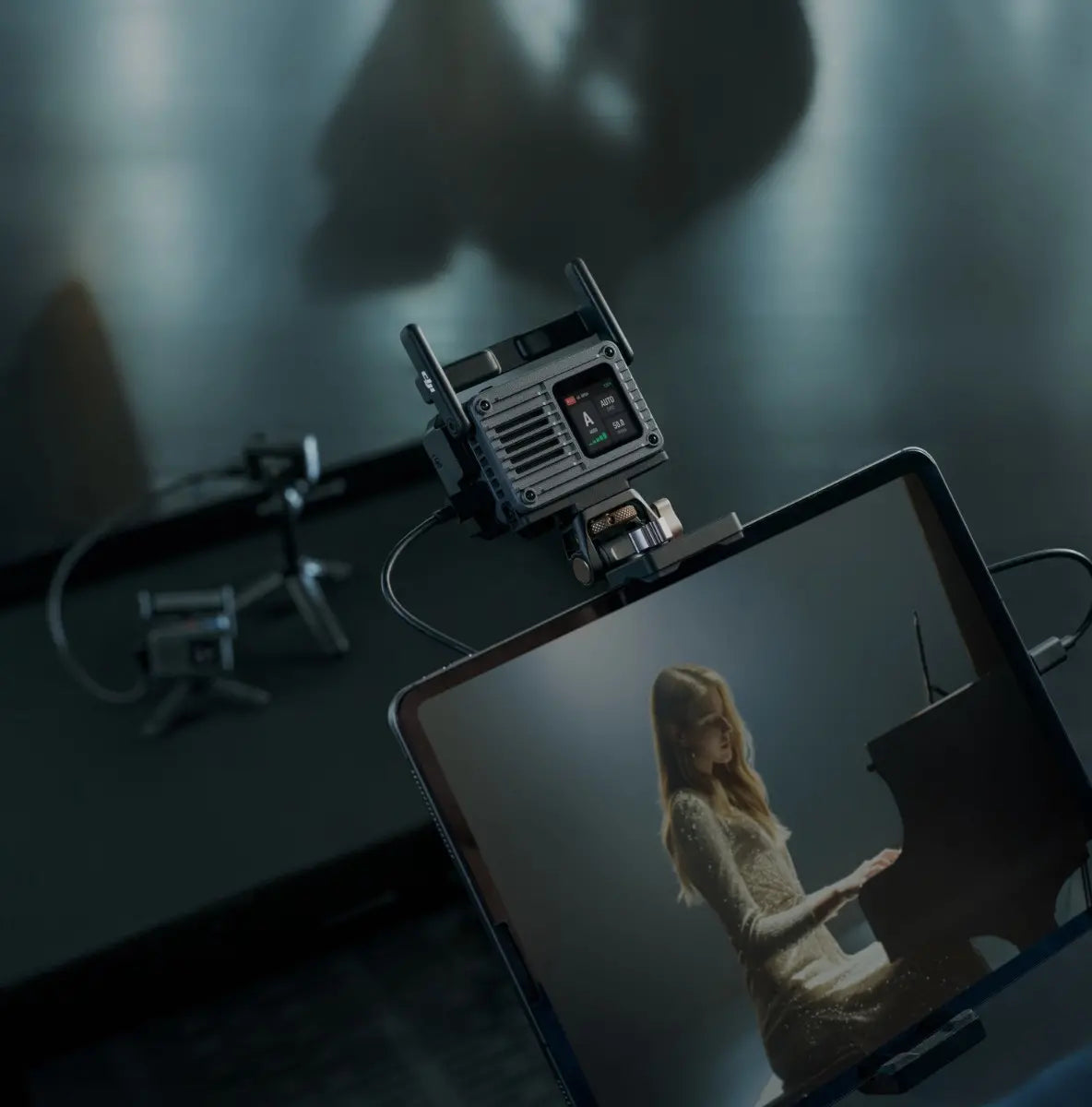

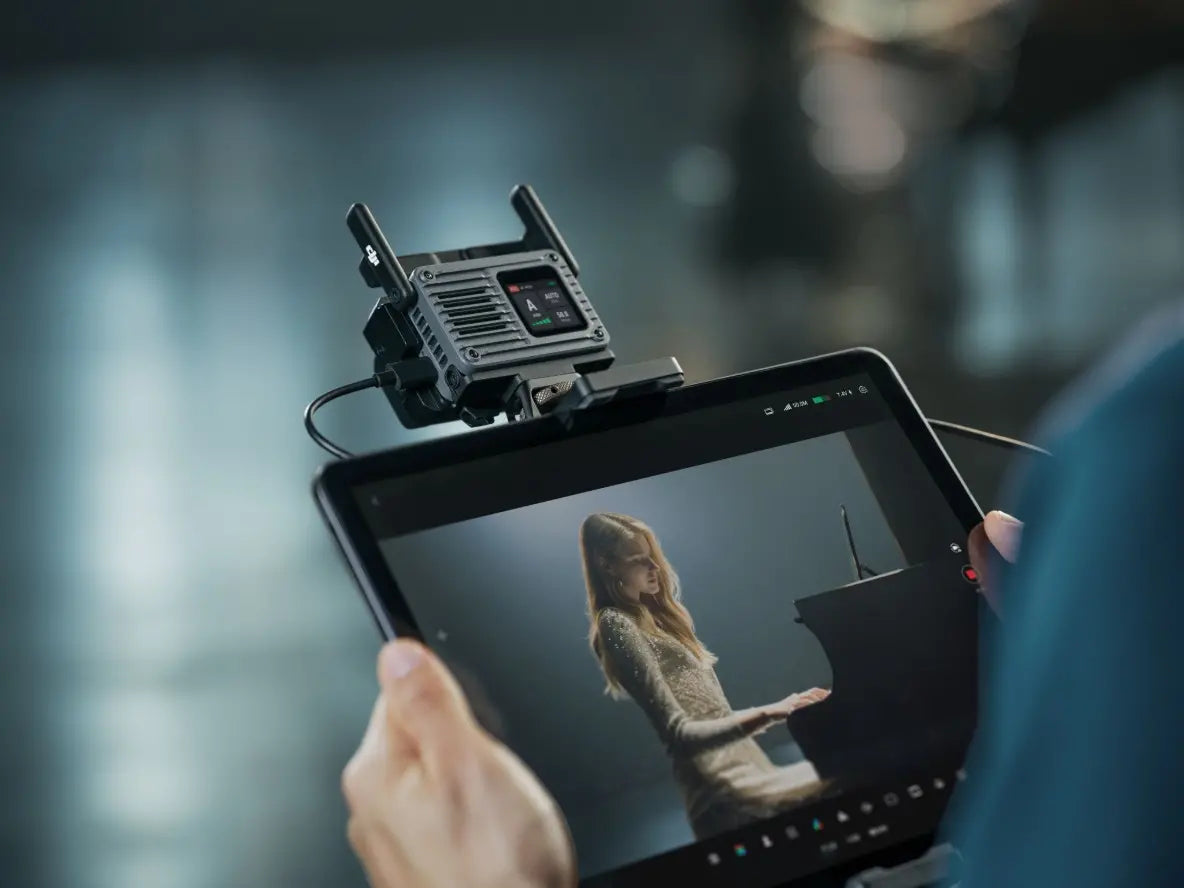

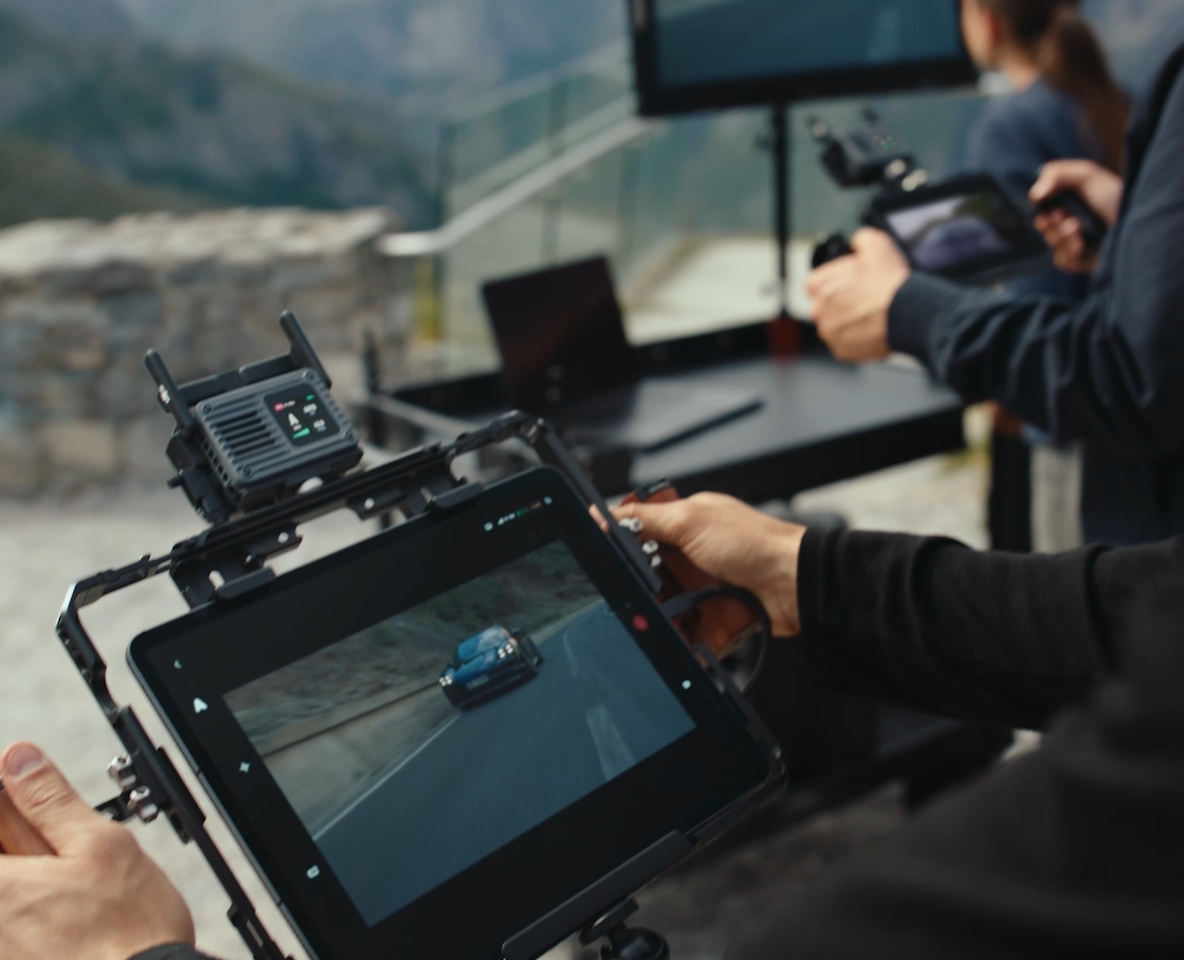

Can DJI SDR Transmission 2 be used for monitoring on a smartphone or tablet?

Yes.

Connect a compatible smartphone or tablet to the transceiver operating as an RX using a USB-C to USB-C or USB-C to Lightning cable. The video signal is then transmitted through SDR, helping provide a more stable and reliable monitoring connection.

The required connection cable is not included and must be purchased separately or supplied by the user.

Can DJI SDR Transmission 2 operate alongside other wireless devices, such as wireless microphones?

Yes, but interference may occur when the transceiver automatically switches to a 2.4 GHz channel or when a 2.4 GHz channel is selected manually. Other wireless equipment operating in the same frequency range, including wireless microphones, may be affected.

If interference occurs, selecting a channel outside the 2.4 GHz band manually is recommended. The transceiver’s main interface displays the centre frequency for each channel, allowing you to check whether a selected channel operates within the 2.4 GHz frequency range.

Which batteries are compatible with DJI SDR Transmission 2?

DJI SDR Transmission 2 supports NP-F series batteries.

Actual operating time will depend on the capacity and performance of the battery being used, so runtime can vary between different NP-F batteries.

Which products in the Ronin ecosystem work with DJI SDR Transmission 2?

DJI SDR Transmission 2 is compatible with DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels.

When connected to an RS series stabilizer, the transceiver can draw power from the stabilizer’s battery. The DJI Ronin app can also be used to wirelessly control compatible RS series stabilizers, with support for Force Mobile, virtual joystick operation and gimbal recentering.

When an SDR Transmission 2 Transceiver is connected to an RS series stabilizer, remote camera control requires a separate Multi-Camera Control Cable to connect the stabilizer and camera. A native vertical shooting configuration is not supported when the transceiver is attached to a stabilizer using the Quick-Release Plate.

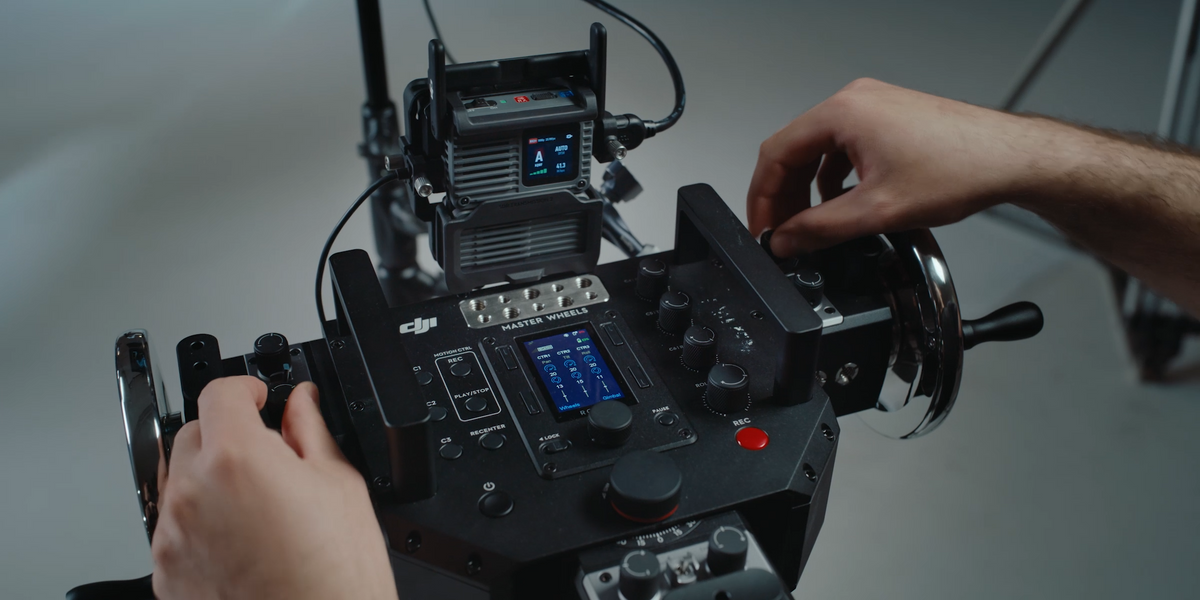

When Master Wheels is connected to Ronin 2, RS 3 Pro, RS 4, RS 4 Pro or RS 5 through the transceiver, the stabilizer can be controlled wirelessly from Master Wheels. Supported functions include gimbal movement and gimbal recentering. If a camera is connected to the stabilizer, Master Wheels can also be used to start and stop camera recording.

When using DJI SDR Transmission 2 with Ronin 2 or Master Wheels, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) is required and sold separately.

When connecting to RS 4 Pro, RS 4 or RS 3 Pro, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN) is required and sold separately.

The Multi-Camera Control Cable supplied with the stabilizer can be used where compatible. Alternatively, a suitable cable can be purchased separately based on the camera model being used. For information on supported cameras and available control functions, please refer to the Camera & Lens Compatibility page for the relevant stabilizer.
