Regular price
£949.00
Sale price
£949.00
Regular price
£949.00
EAN: 6941565928924
Free Next Day Delivery*
DJI Video Transmitter
- 20,000ft 1080p/60fps Transmission
- Seamless Auto Frequency Hopping
- End-to-End Ultra-Low Latency

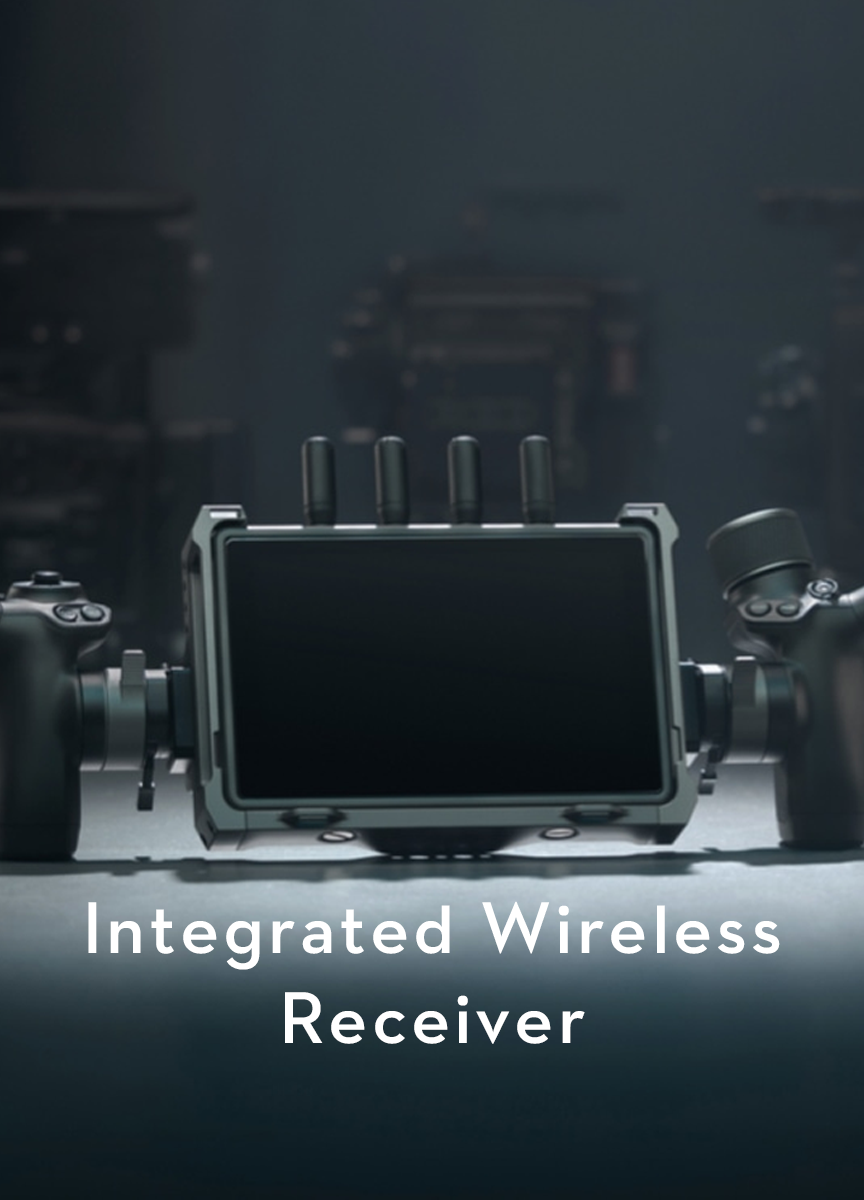

- Integrated Wireless Receiver

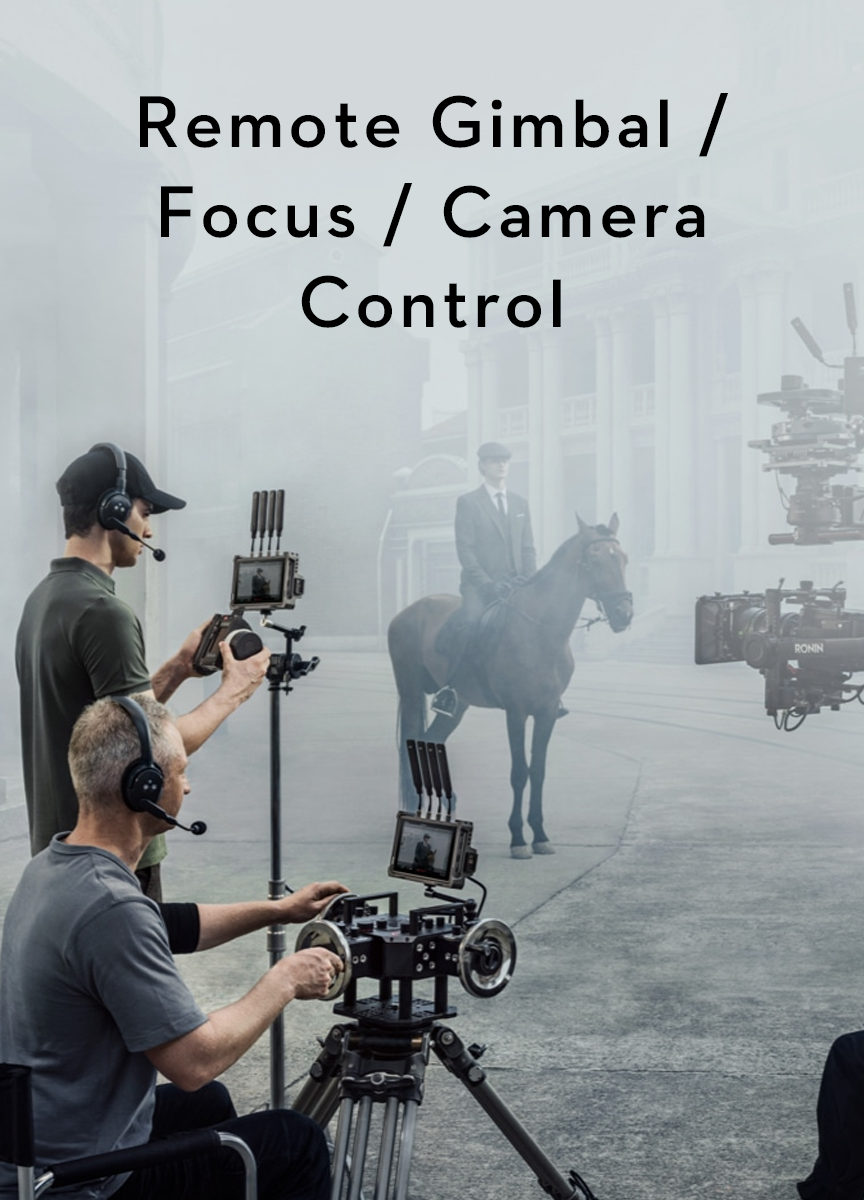

- Gimbal/Focus/Camera Control
- Independent Recording and Playback
DJI Rewards
Earn 1% back on every purchase!
With DJI Rewards, you earn 1% back on every purchase, whether online or in-store.
What are DJI Rewards?
DJI Rewards let you accumulate points with every purchase you make. For every £1 spent, you receive 1 point. These points can be exchanged for money-off coupons, which can be used online or in-store to save on your next order.
For example, 1000 points = £5 off coupon
Please note that DJI Rewards are non-transferable, cannot be exchanged for cash, and are only valid within DJI | Hasselblad.
DJI Trade In. Get credit towards your next purchase
DJI Trade In
Thinking about upgrading to a new drone? Trade in your old drone and receive credit towards your new purchase.
Not planning to buy a new drone? No worries! We can still buy your old drone for cash. However, please note that cash offers are lower in value compared to store credit.
All trade-in prices are guaranteed, provided the items meet the conditions outlined in the sale agreement.
Here’s how it works:
- Visit our dedicated trade in portal: Click the below button to start your trade in. Simply look up the model you want to sell to find out its value. Select store credit as your payment, provide your details, and you're all set!
- Send your item: Once you have placed you trade in, we will provide you with a FREE Royal Mail label. Affix this label to you parcel and drop it off at you nearest Post Office.
- Get paid: Upon receiving your device, we will conduct an inspection, and if everything checks out, we will send you a gift card via email to use against your purchase.
Pickup available at DJI | Hasselblad - Birmingham -
Usually ready in 1 hour
DJI Video Transmitter
-
DJI | Hasselblad - Birmingham
Pickup available, usually ready in 1 hour
2-6 Corporation Street
Birmingham B2 4RN
United Kingdom+441217500145
-
DJI | Hasselblad - London
Pickup available, usually ready in 1 hour
52 Regent Street
London W1B 5AS
United Kingdom+447386485532
Safe & Secure Checkout
Why Choose Us
- Free Delivery on orders over £99
- Free 14 day returns
- Click & collect
- Earn reward points
- UK customer support
- Price match promise
Other Options
-
DJI Transmission (High-Bright Monitor Combo)
£1,979
In Stock
Includes DJI Video Transmitter, DJI High-Bright Remote Monitor, and other accessories to deliver an integrated solution.
-
DJI Transmission Combo (Standard Combo）
£1,979
In Stock
Includes DJI Video Transmitter, DJI Video Receiver, and other accessories to deliver extended-range, low-latency transmission.
-
DJI Video Receiver
£1,139
In Stock
-
DJI High-Bright Remote Monitor
£1,139
In Stock
DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a ground-breaking transmission experience that provides vision beyond boundaries.
Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

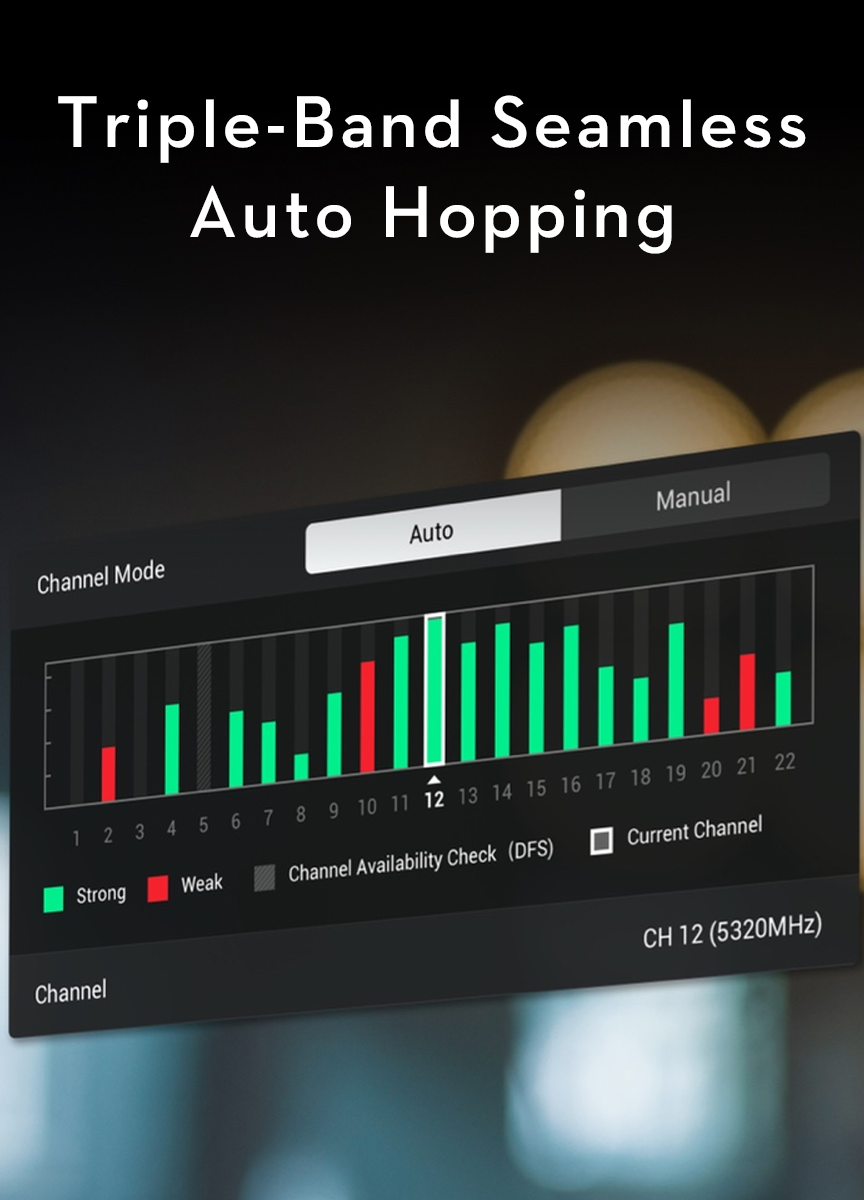

Seamless Auto Frequency Hopping
O3 Pro adds DFS bands* on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

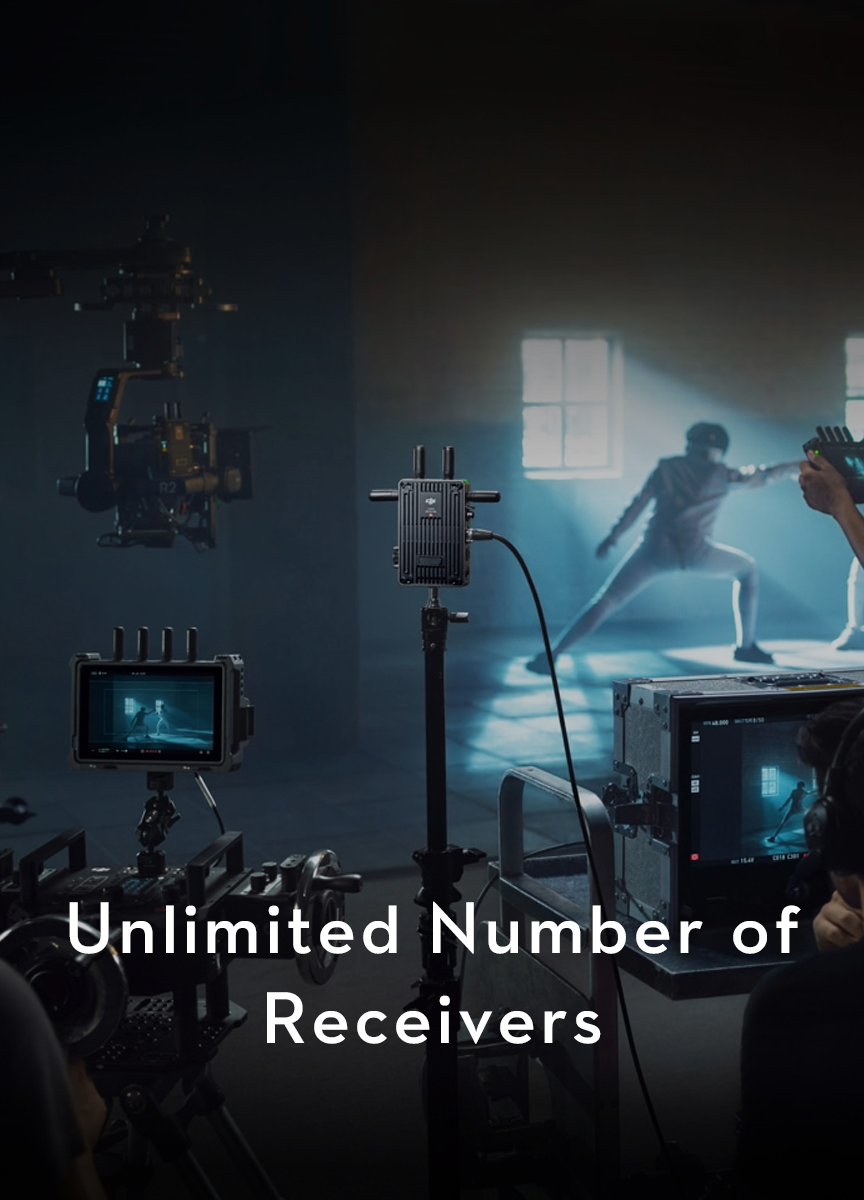

One Transmitter with Multiple Receivers
Both the High-Bright Remote Monitor and the Video Receiver support one transmitter with multiple receivers for video and audio feeds in two transmission modes. The default Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams such as lighting, art department, and makeup on sets with large crews, and a live feed's bitrate and input feed's video codecs can be displayed in real-time as well. If you want to switch camera index for monitoring, simply select the corresponding index without having to check the transmission channel, which greatly enhances the shooting efficiency.

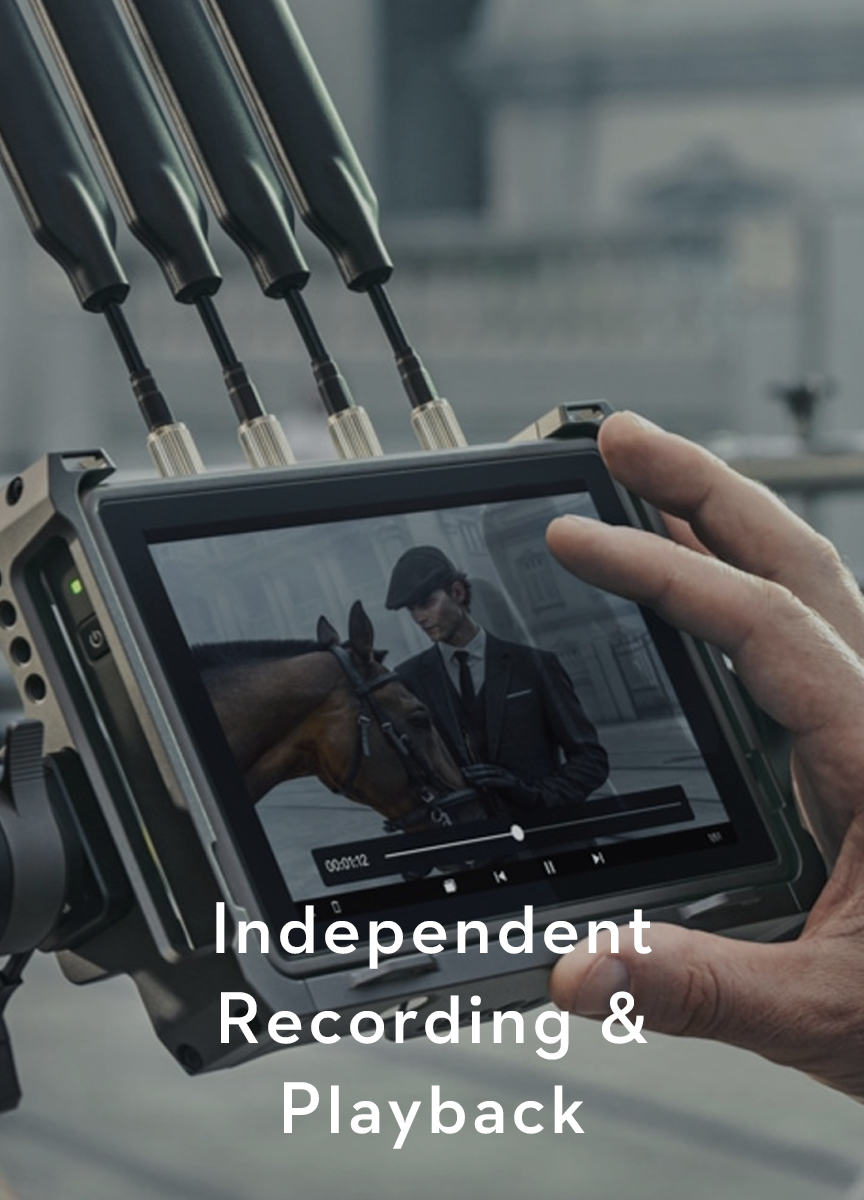

Independent Recording and Playback
The High-Bright Remote Monitor features a microSD card slot and allows for independent recording and storage of up to 1080p/60fps H.264 live feeds. The remote monitor can automatically start and stop recording in synchronisation with the camera, making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.
Built-In Motion Controller
The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.

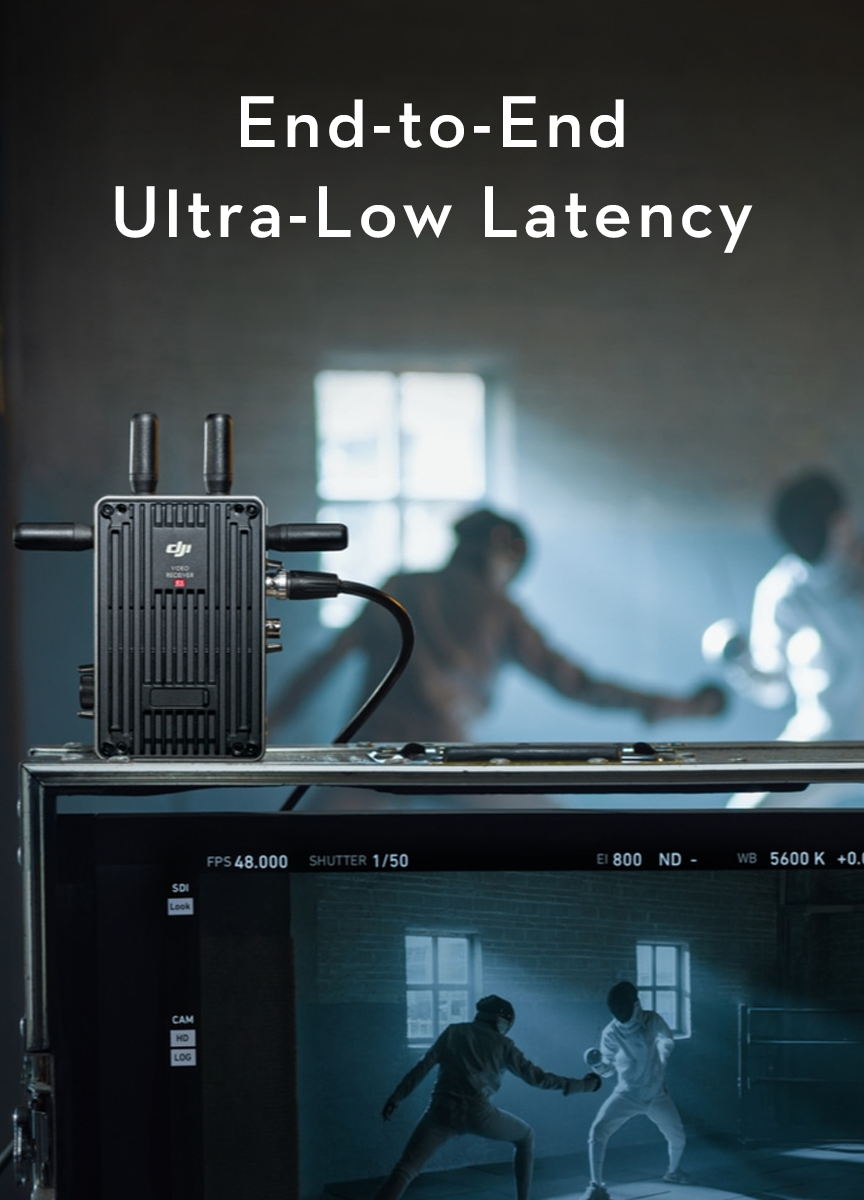

End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like
ALEXA Mini LF.
Diverse Settings
For ultra-long-distance transmission, it is recommended to disable Broadcast mode and use Control mode.
Transmission of Metadata
The DJI Video Receiver supports camera metadata transmission via SDI. When used with ARRI, RED, and other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (aperture, focal length, etc.), and lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set.
Encrypted Transmission
DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.
Video Transmitter Ports
The video transmitter includes dual 3G-SDI Input and Loop Out Ports, as well as an HDMI 1.4 Type-A Input Port, all supporting 1080p/60fps video. A USB Type-C port is available for voice calls and firmware updates, while a dedicated Power Input Port ensures reliable operation.
Video Receiver Ports
The video receiver features a 3G-SDI Output Port and HDMI 1.4 Type-A Output Port, all supporting 1080p/60fps video. A USB Type-C port handles voice calls and firmware updates. The Power Input Port accepts 6.8V to 17.6V, supporting CAN input/output and connection with DJI Master Wheels.
High-Bright Remote Monitor Ports
The high-bright remote monitor includes a 3.5mm stereo jack for real-time audio monitoring, a microSD card slot for internal recording and playback, and an HDMI 2.0 Type-A Input Port supporting 4K/60fps video. It also features a USB Type-C port for webcam use and firmware updates, along with versatile power input options (6.8V to 17.6V). Additionally, the monitor has an HDMI 1.4 Type-A Output Port for 1080p/60fps video and a 3G-SDI Output Port.
What's Included
Specifications
| Specifications | |
|---|---|
Weight |
|
Dimensions |
|
Operating Frequency |
|
Transmitter Power (EIRP) |
|
Max Bandwidth |
|
Max Bitrate |
|
Power Consumption |
|
Power Supply Voltage |
|
Output Voltage |
|
Operating Time |
|
Input Video Format |
|
Output Video Format |
|
Input Audio Format |
|
Output Audio Format |
|
Video Transmission System |
|
Video Transmission Latency |
|
Video Coding Format |
|
Max Transmission Distance |
|
Operating Temperature |
|
Mirror Control Mode Supported Camera Models |
|
FAQ's
What is the difference between the High-Bright Monitor Combo and the Standard Combo of DJI Transmission?
The High-Bright Monitor Combo includes a DJI Video Transmitter and a DJI High-Bright Remote Monitor. The DJI High-Bright Remote Monitor integrates receiver, monitor, recording, and control all into one, and delivers a more efficient coordinated shooting experience without the need for extensive accessories. It is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits, and supports independent recording and playback of 1080p/60fps H.264. It comes with supportive tools like safe zone, frame guide, zebra stripes, false color, peaking, waveform, and tapping twice to zoom, as well as screen color calibration and custom 3D LUT for precise composition, exposure, and focusing. Additionally, the remote monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.
The Standard Combo includes a DJI Video Transmitter and a DJI Video Receiver. It inherits extended-range, low-latency transmission of DJI Transmission, and newly supports metadata transmission. When used with ARRI, RED, or other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (shutter, ISO, etc.,), lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set.
What devices are compatible with DJI Transmission?
Devices that support outputting SDI and HDMI signals.
What is the highest live feed specification that can be transmitted by the HDMI port on the Remote Monitor Expansion Plate? Does it support HDMI input?
It supports transmission at up to 1080p/60fps.
It only supports HDMI output, and does not support HDMI input. You can input HDMI signals via the HDMI port on the right side of the DJI High-Bright Remote Monitor.
Do the DJI Video Transmitter and DJI High-Bright Remote Monitor support V-mount batteries?
Yes. You can use third-party V-mount battery adapter plates to use V-mount batteries as a power supply.
Can the DJI High-Bright Remote Monitor work with third-party video transmitters?
Currently, the DJI High-Bright Remote Monitor only works with the DJI Ronin 4D Video Transmitter or DJI Video Transmitter, and does not support video transmitters of other brands.
Does DJI Transmission support third-party antennas?
It is recommended to use DJI standard antennas; otherwise, signal strength may be weaker.
How many transmission modes does DJI Transmission support?
There are two transmission modes: Control mode and Broadcast mode.
In Control mode, two DJI High-Bright Remote Monitors can be connected at the same time. In Broadcast mode, an unlimited number of receivers can be connected.
