DJI Osmo Multifunctional Bike Tube Mount Kit

Designed for round handlebars, mounting and removal are quick and efficient. It features a built-in 1/4" thread hole for connecting the carbon fiber straight rod to easily capture immersive 360° cycling footage. The top integrates a bike computer mount for real-time cycling data viewing, while the bottom is equipped with a three-prong mount for quick installation of action cameras or bike lights, meeting various cycling shooting and lighting needs.

Tips:

1. Compatible with round handlebars.
2. Only supports connecting the camera to the 28cm Carbon Fiber Straight Rod; does not support connecting the camera to the handlebar mount directly.
3. When mounting, be sure to use the included wrench to tighten the connections of each component according to the packaging instructions.
4. It is recommended to use on smooth, paved roads; avoid riding in low light or on bumpy roads.
5. If the bottom is positioned close to the handlebars, avoid pointing it directly at complex cable patterns or other intricate lines to ensure optimal image stitching results.

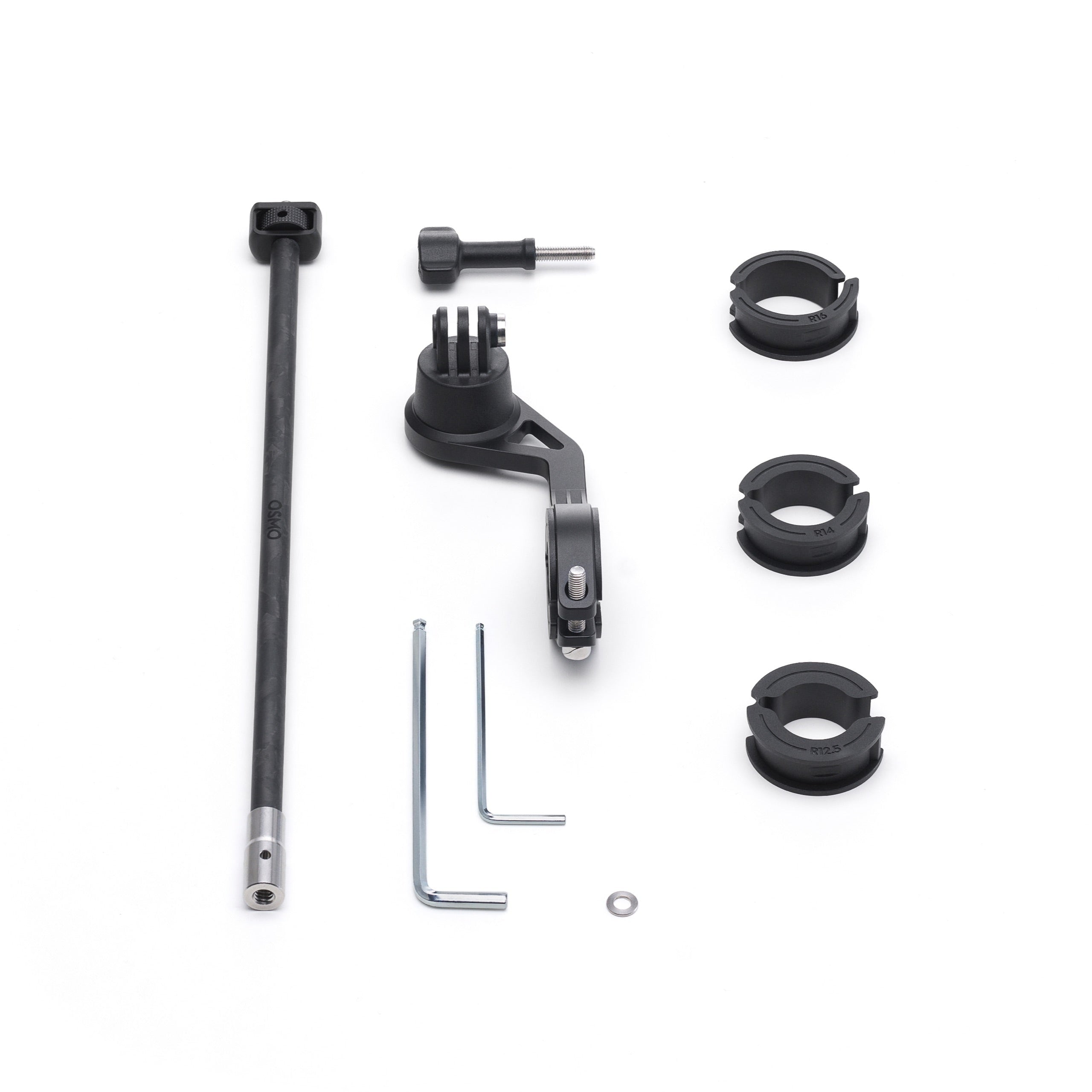

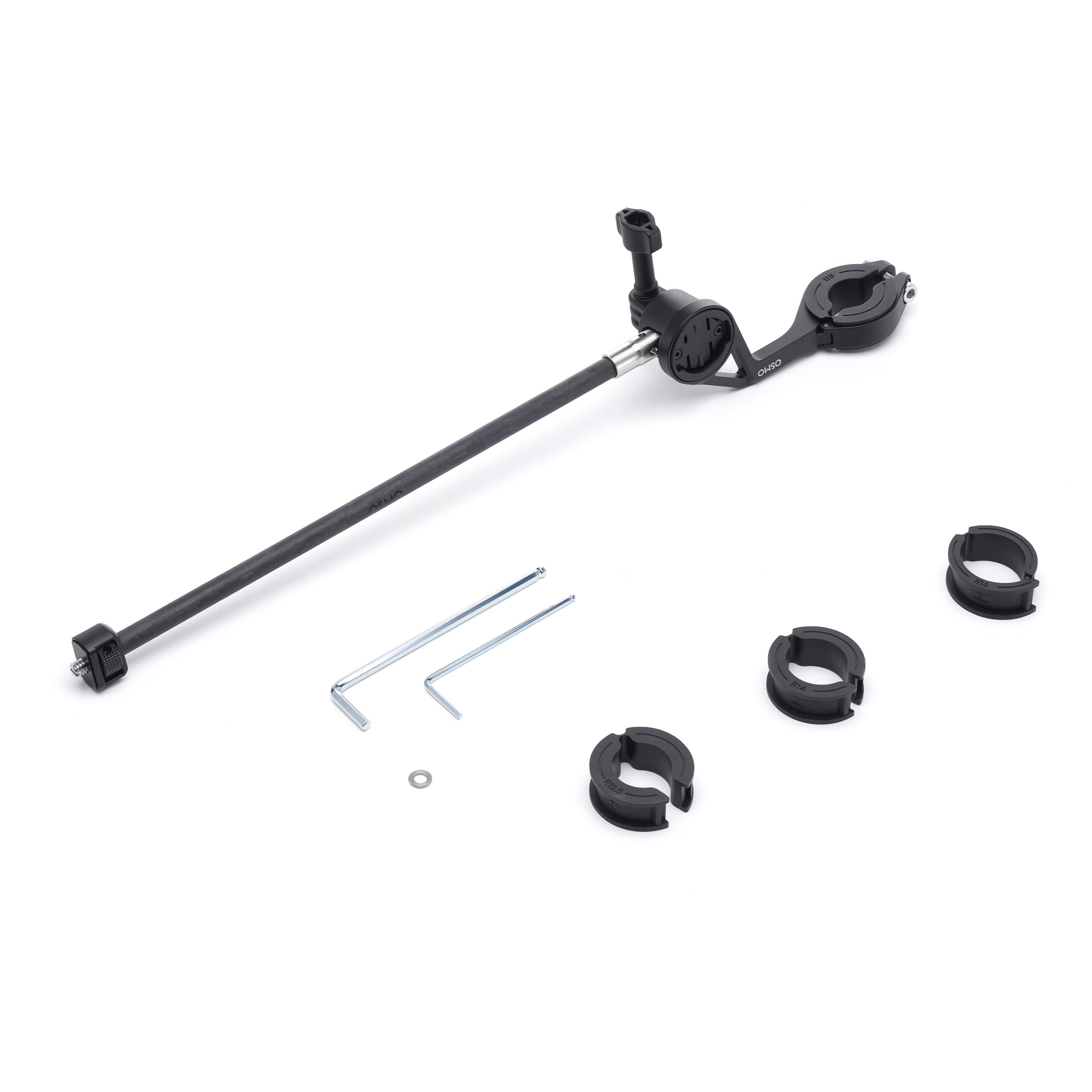

In The Box:

• Osmo Multifunctional Bike Tube Mount × 1
• 28cm Carbon Fiber Straight Rod × 1
• Multi-Size Rubber Spacer × 1
• Osmo Locking Screw × 1
• Hex Key × 2

Specifications:

• Osmo Multifunctional Bike Tube Mount
  • Dimensions: 130×56.5×60.5 mm (L×W×H)
  • Weight: 83.5 g
• 28cm Carbon Fiber Straight Rod
  • Dimensions: 290.2×23×16.9 mm (L×W×H)
  • Weight: 42.1 g
• Osmo Locking Screw
  • Dimensions: 55.6×23×13.3 mm (L×W×H)
  • Weight: 20.7 g

Compatibility:

• Osmo 360
